Dust --
Cap

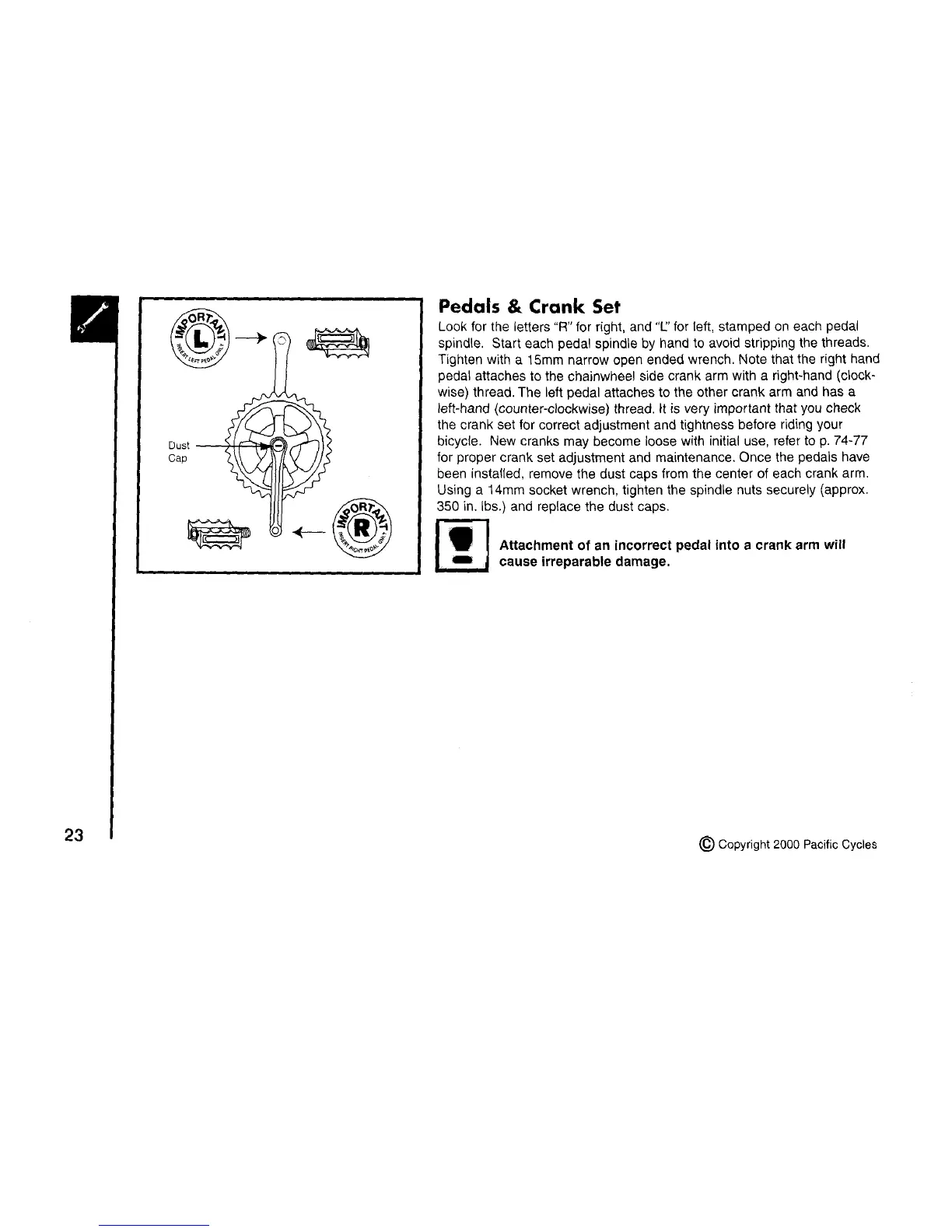

Pedals & Crank Set
Look for the letters "R" for right, and "1_'for left, stamped on each pedal
spindle, Start each pedal spindle by hand to avoid stripping the threads.
Tighten with a 15mm narrow open ended wrench. Note that the right hand
pedal attaches to the chainwheel side crank arm with a right-hand (clock-
wise) thread. The left pedal attaches to the other crank arm and has a
left-hand (counter-clockwise) thread. It is very important that you check
the crank set for correct adjustment and tightness before riding your
bicycle. New cranks may become loose with initial use, refer to p. 74-77
for proper crank set adjustment and maintenance, Once the pedals have
been installed, remove the dust caps from the center of each crank arm.
Using a 14mm socket wrench, tighten the spindle nuts securely (approx.
350 in. Ibs.) and replace the dust caps.
Attachment of incorrect into crank will
an
pedal
a arm
cause irreparable damage.
23 © Copyright 2000 Pacific Cycles
