Seat
Clamp at
Post
Adtusting _ Quick
Nut -----.---IP-t _ Release
Attach
Seat Here_
Boot
Minimum
Insertion
Mark
Preload adjusting
screw on underside
Insert this
end into
frame

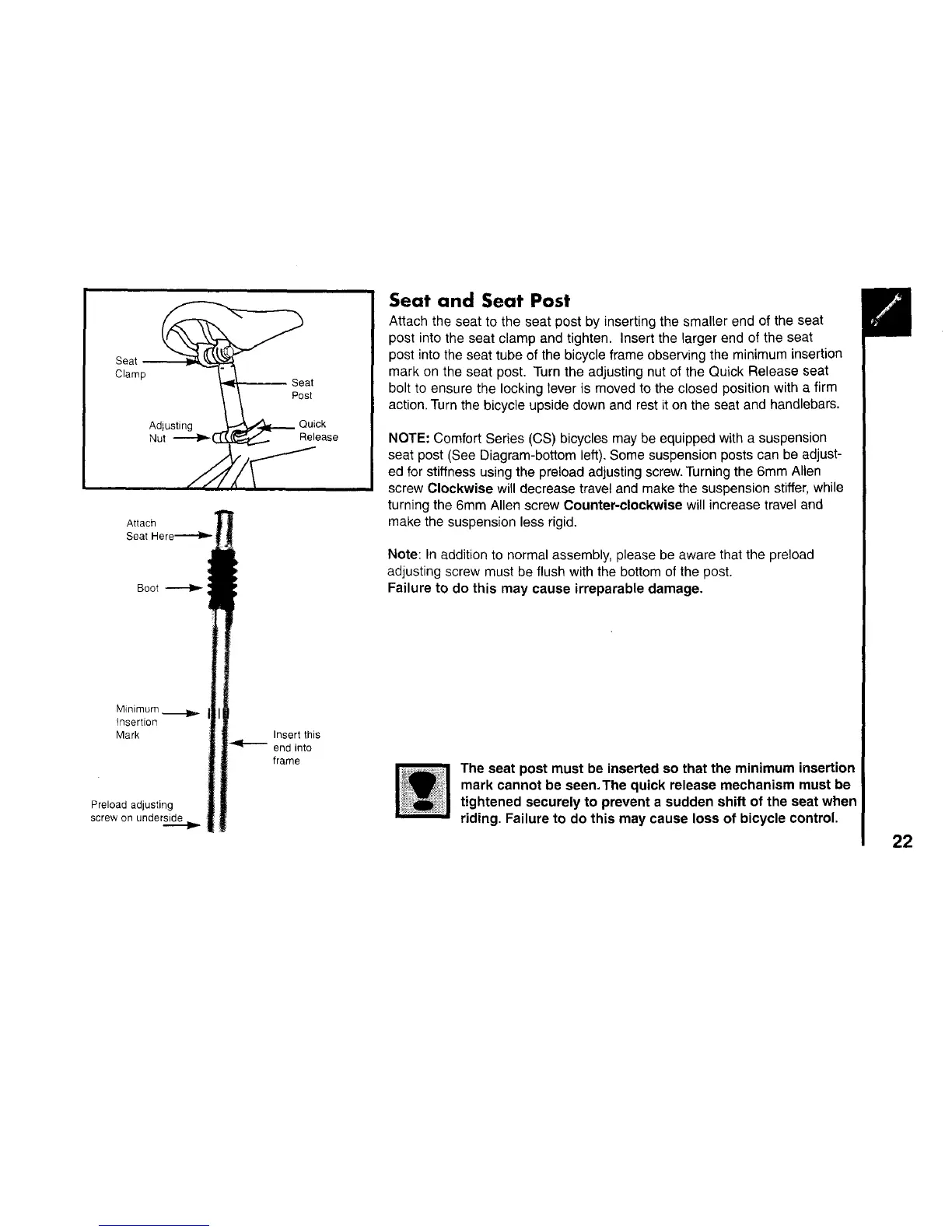

Seat and Seat Post
Attach the seat to the seat post by inserting the smaller end of the seat
post into the seat clamp and tighten. Insert the larger end of the seat
post into the seat tube of the bicycle frame observing the minimum insertion
mark on the seat post. Turn the adjusting nut of the Quick Release seat
bolt to ensure the locking lever is moved to the closed position with a firm
action. Turn the bicycle upside down and rest it on the seat and handlebars.
NOTE: Comfort Series (CS) bicycles may be equipped with a suspension
seat post (See Diagram-bottom left), Some suspension posts can be adjust-
ed for stiffness using the preload adjusting screw. Turning the 6mm Allen
screw Clockwise will decrease travel and make the suspension stiffer, while
turning the 6mm Allen screw Counter-clockwise will increase travel and
make the suspension less rigid.
Note: In addition to normal assembly, please be aware that the preload
adjusting screw must be flush with the bottom of the post.
Failure to do this may cause irreparable damage.
The seat post must be inserted so that the minimum insertion
mark cannot be seen.The quick release mechanism must be
tightened securely to prevent a sudden shift of the seat when
riding. Failure to do this may cause loss of bicycle control.
22
