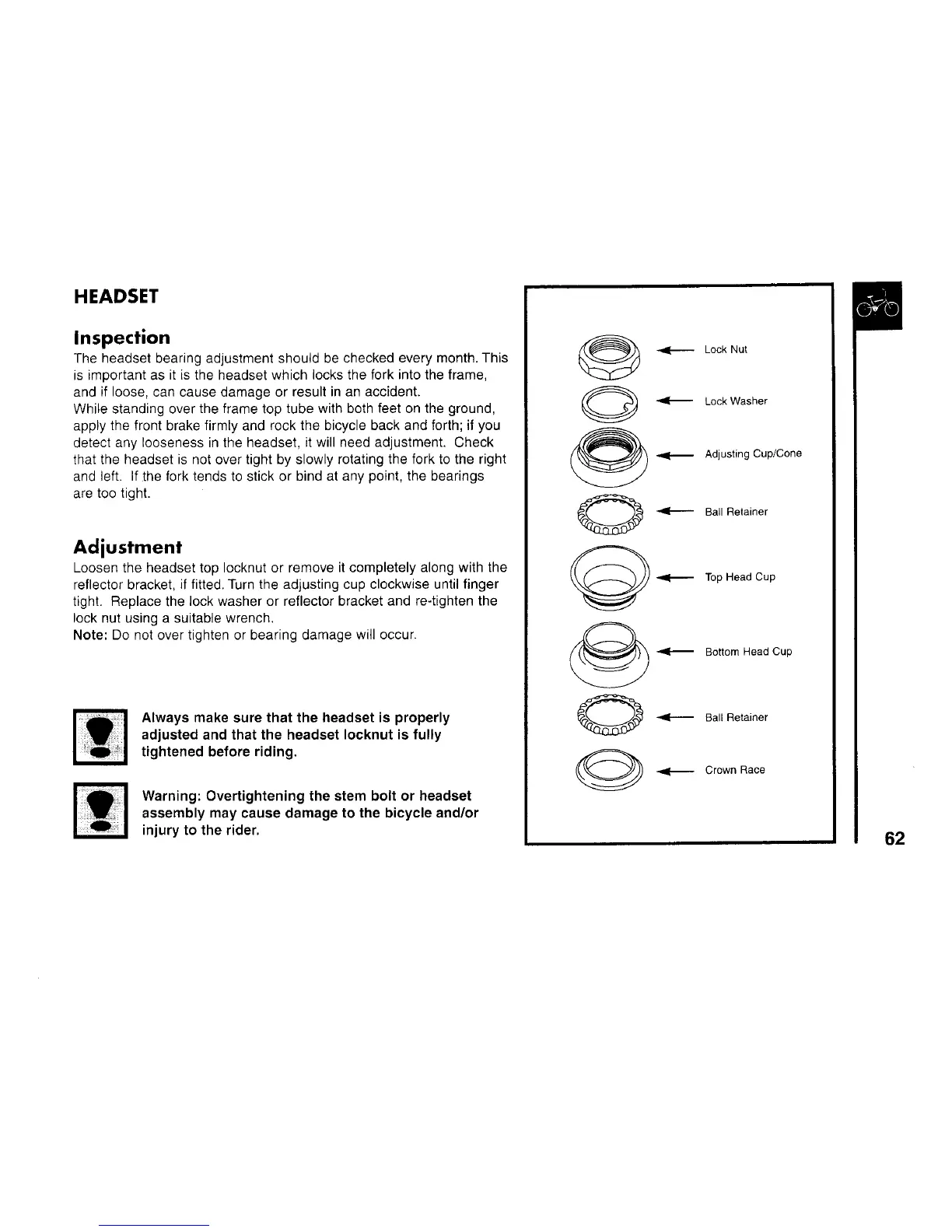

HEADSET
Inspection
The headset bearing adjustment should be checked every month. This
is important as it is the headset which locks the fork into the frame,
and if loose, can cause damage or result in an accident.
While standing over the frame top tube with both feet on the ground,
apply the front brake firmly and rock the bicycle back and forth; if you
detect any looseness in the headset, it will need adjustment. Check
that the headset is not over tight by slowly rotating the fork to the right
and left. If _he fork tends to stick or bind at any point, the bearings
are too tight.
Adjustment
Loosen the headset top Iocknut or remove it completely along with the
reflector bracket, if fitted. Turn the adjusting cup clockwise until finger
tight. Replace the lock washer or reflector bracket and re-tighten the
lock nut using a suitable wrench.
Note: Do not over tighten or bearing damage will occur.
Always make sure that the headset is properly
adjusted and that the headset Iocknut is fully
tightened before riding.
Warning: Overtightening the stem bolt or headset
assembly may cause damage to the bicycle and/or
injury to the rider.
Lock Nut
Lock Washer
Adjusting Cup/Cone
Ball Retainer
Top Head Cup
BoSom Head Cup
Bali Retainer
Crown Race
62
