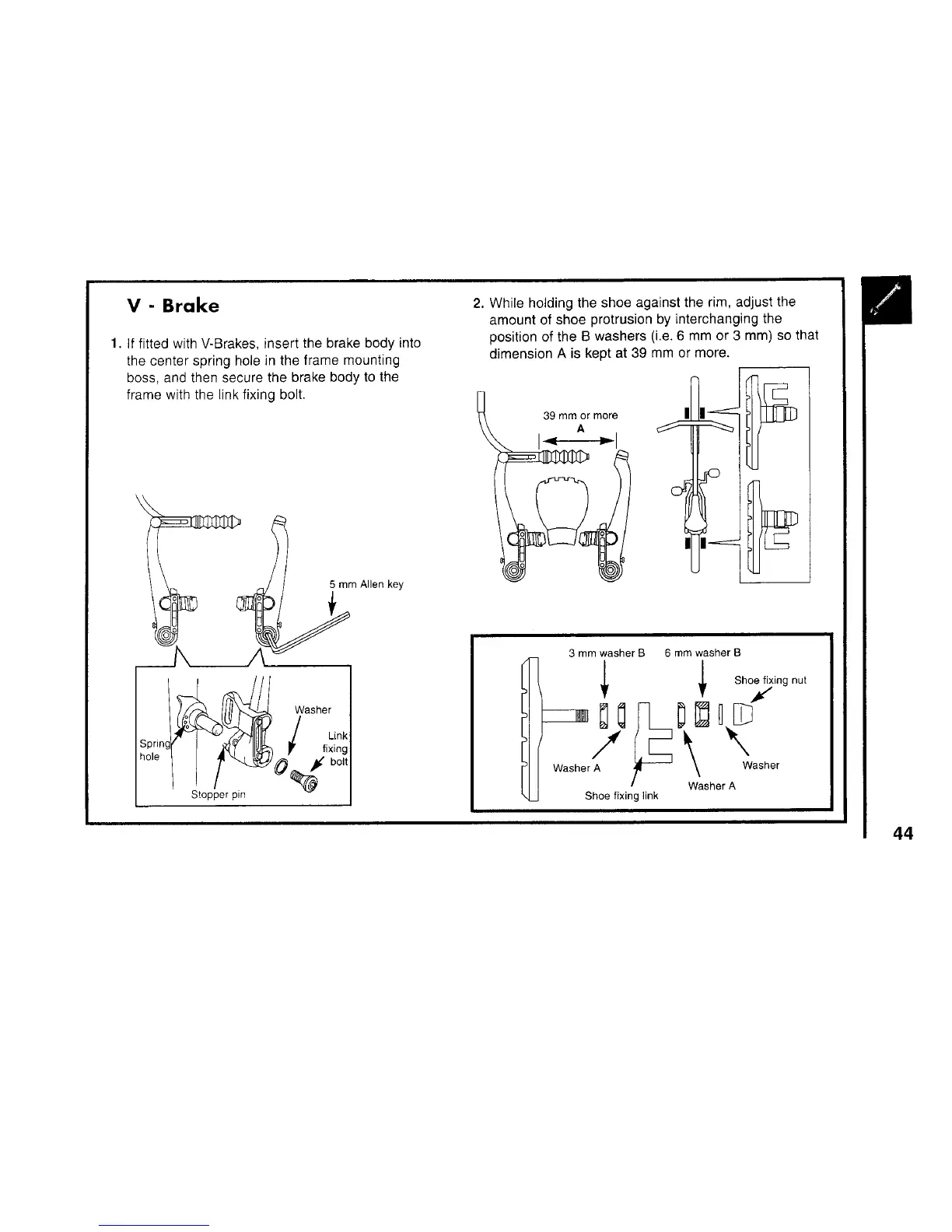

V- Brake
1. If fitted with V-Brakes, insert the brake body into
the center spring hole in the frame mounting
boss, and then secure the brake body to the
frame with the link fixing bolt.
Spring
hole
5 mm Allen key
Stopper pin
Washer
Link
fixing
b0,,
2. While holding the shoe against the rim, adjust the
amount of shoe protrusion by interchanging the
position of the B washers (i.e. 6 mm or 3 mm) so that
dimension A is kept at 39 mm or more.
39 mm or more
A
/
)
o
o
3 mm washer B
Washer€
_ WaSheshoe fixin,
6 mm washer B
_ Sho_ing nut
_Washer
Washer A
I link
r
44
