43

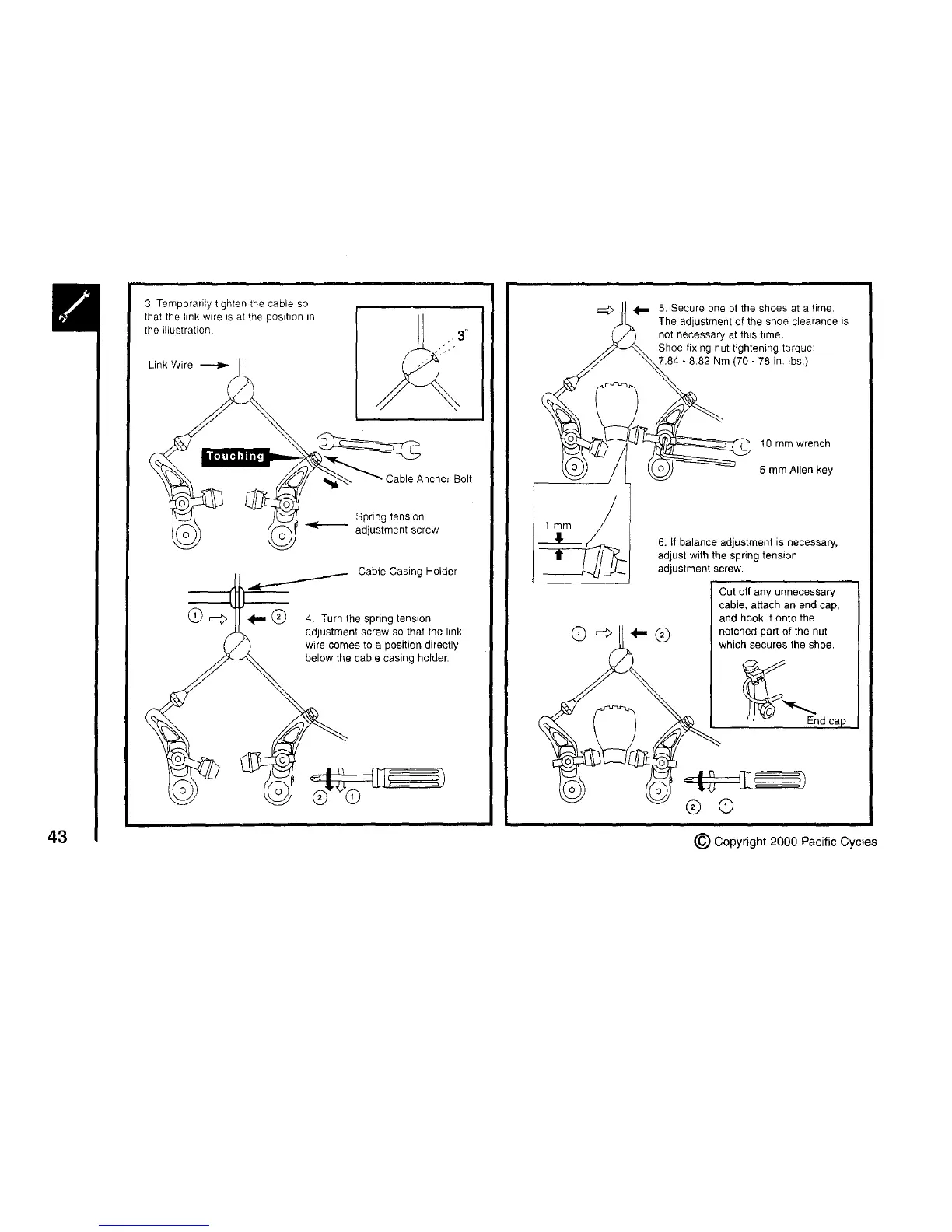

3. Temporarily tighten the cable so
that the link wire is at the position in II
the illustration. _3, °
Link Wire_
_ O__i__m_-_ Cable Anchor Bolt
@ _ aSdPruntgmt:_is°nrew
Cabte Casing Holder
Q=> +,,Q
4. Turn the spring tension
adjustment screw so that the link
wire comes to a position directly
below the cable casing holder.
5. Secure one of the shoes at a time.
The adjustment of the shoe clearance is
not necessary at this time.
Shoe fixing nut tightening torque:
7.84 - 8.82 Nm (70 - 78 in. Ibs.)
t0 mm wrench
5 mm Allen key
6. if balance adjustment is necessary.
adjust with the spring tension
adjustment screw.
Cut off any unnecessary
cable, attach an end cap,
and hook it onto the
notched part of the nut
which secures the shoe.
End cap
® ®
(_ Copyright 2000 Pacific Cycles
