I
®®
®
I

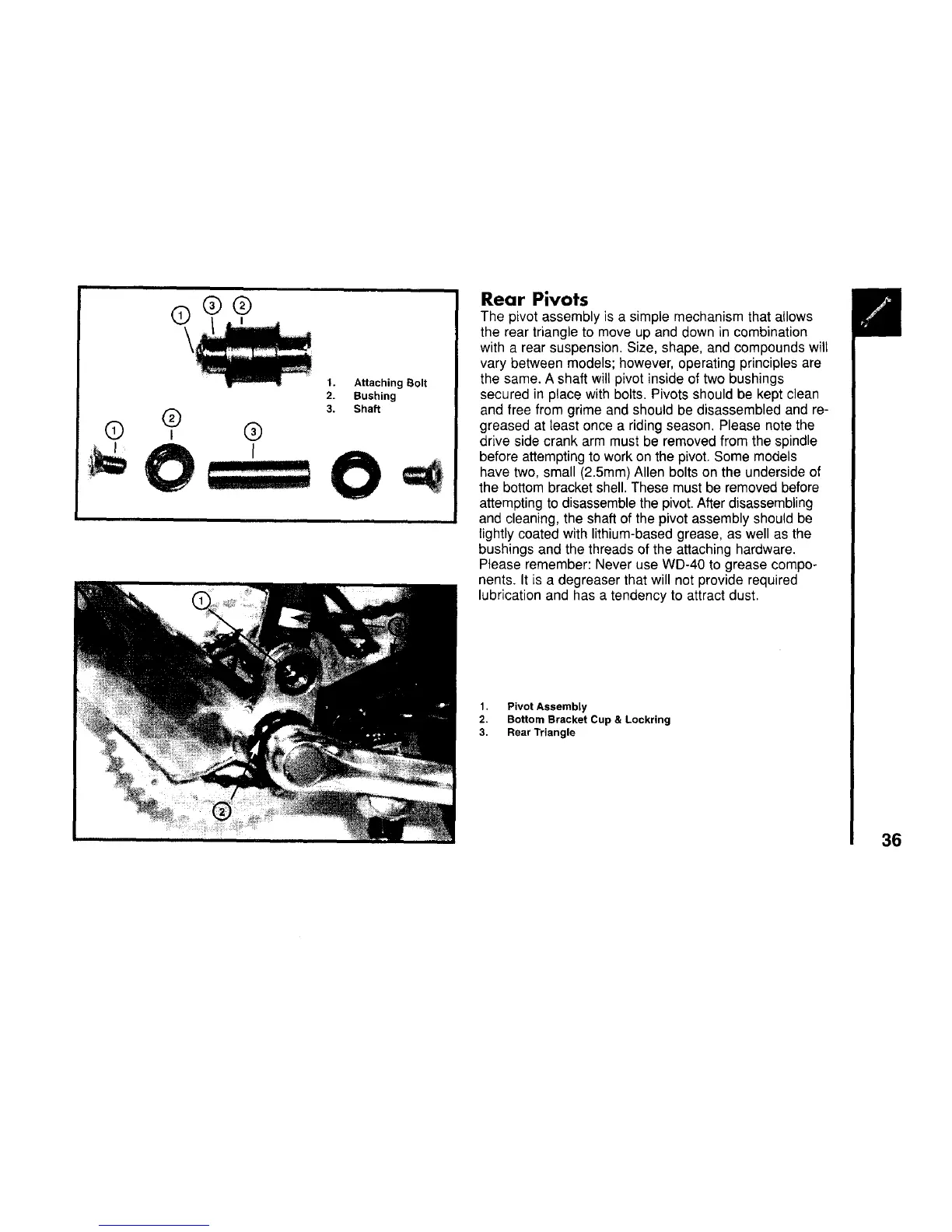

1. Attaching Bolt
2. Bushing
3. Shaft
Rear Pivots
The pivot assembly is a simple mechanism that allows
the rear triangle to move up and down in combination
with a rear suspension. Size, shape, and compounds will
vary between models; however, operating principles are
the same. A shaft will pivot inside of two bushings
secured in place with bolts. Pivots should be kept clean
and free from grime and should be disassembled and re-
greased at least once a riding season. Please note the
drive side crank arm must be removed from the spindle
before attempting to work on the pivot. Some models
have two, small (2.5mm) Allen bolts on the underside of
the bottom bracket shell. These must be removed before
attempting to disassemble the pivot. After disassembling
and cleaning, the shaft of the pivot assembly should be
lightly coated with lithium-based grease, as well as the
bushings and the threads of the attaching hardware.
Please remember: Never use WD-40 to grease compo-
nents. It is a degreaser that will not provide required
lubrication and has a tendency to attract dust.
1. Pivot Assembly
2. Bottom Bracket Cup & Lockring
3. Rear Triangle
36
