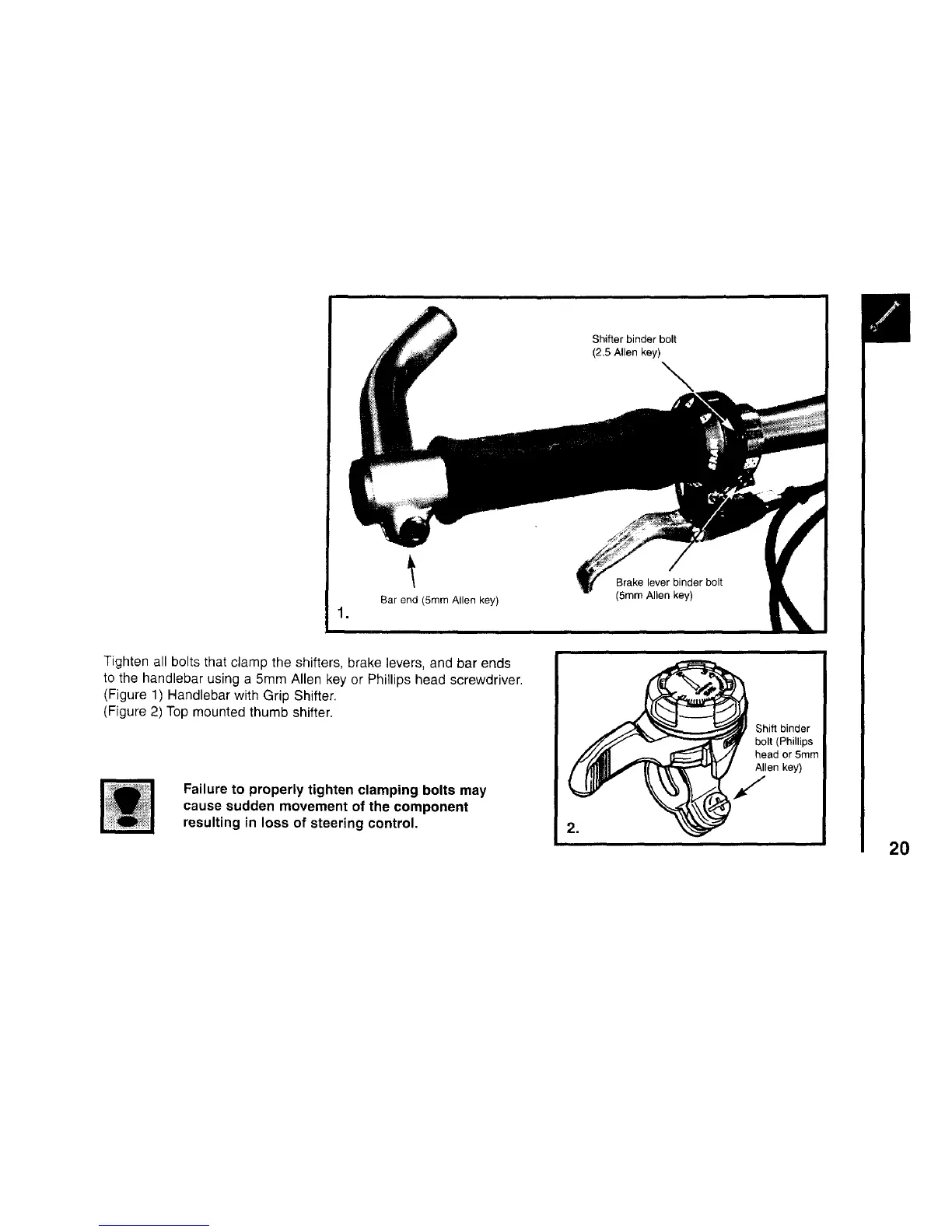

Tighten all bolts that clamp the shifters, brake levers, and bar ends
to the handlebar using a 5mm Allen key or Phillips head screwdriver.
(Figure 1) Handlebar with Grip Shifter.
(Figure 2) Top mounted thumb shifter.
Failure to properly tighten clamping bolts may
cause sudden movement of the component
resulting in loss of steering control.
=
Shift binder
bolt (Phillips
head or 5mm
Allen key)
20
