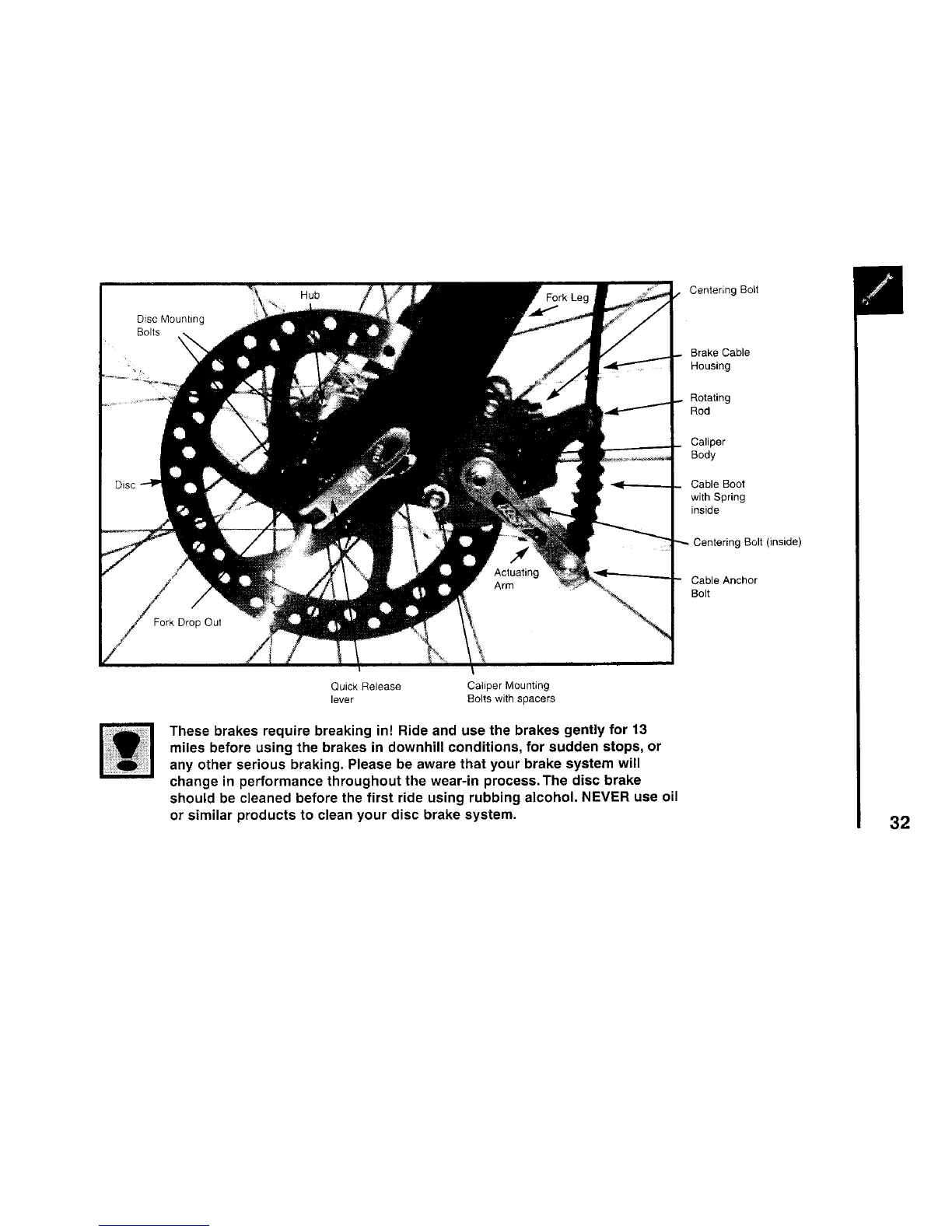

Quick Release Caliper Mounting
lever Bolts with spacers
These brakes require breaking in! Ride and use the brakes gently for 13
miles before using the brakes in downhill conditions, for sudden stops, or
any other serious braking. Please be aware that your brake system will
change in performance throughout the wear-in process. The disc brake
should be cleaned before the first ride using rubbing alcohol. NEVER use oil
or similar products to clean your disc brake system.
Centering Bolt
Brake Cable
Housing
Rotating
Rod
Caliper
Body
Cable Boot
with Spring
inside
Centering Bolt (inside)
Cable Anchor
Bolt
32
