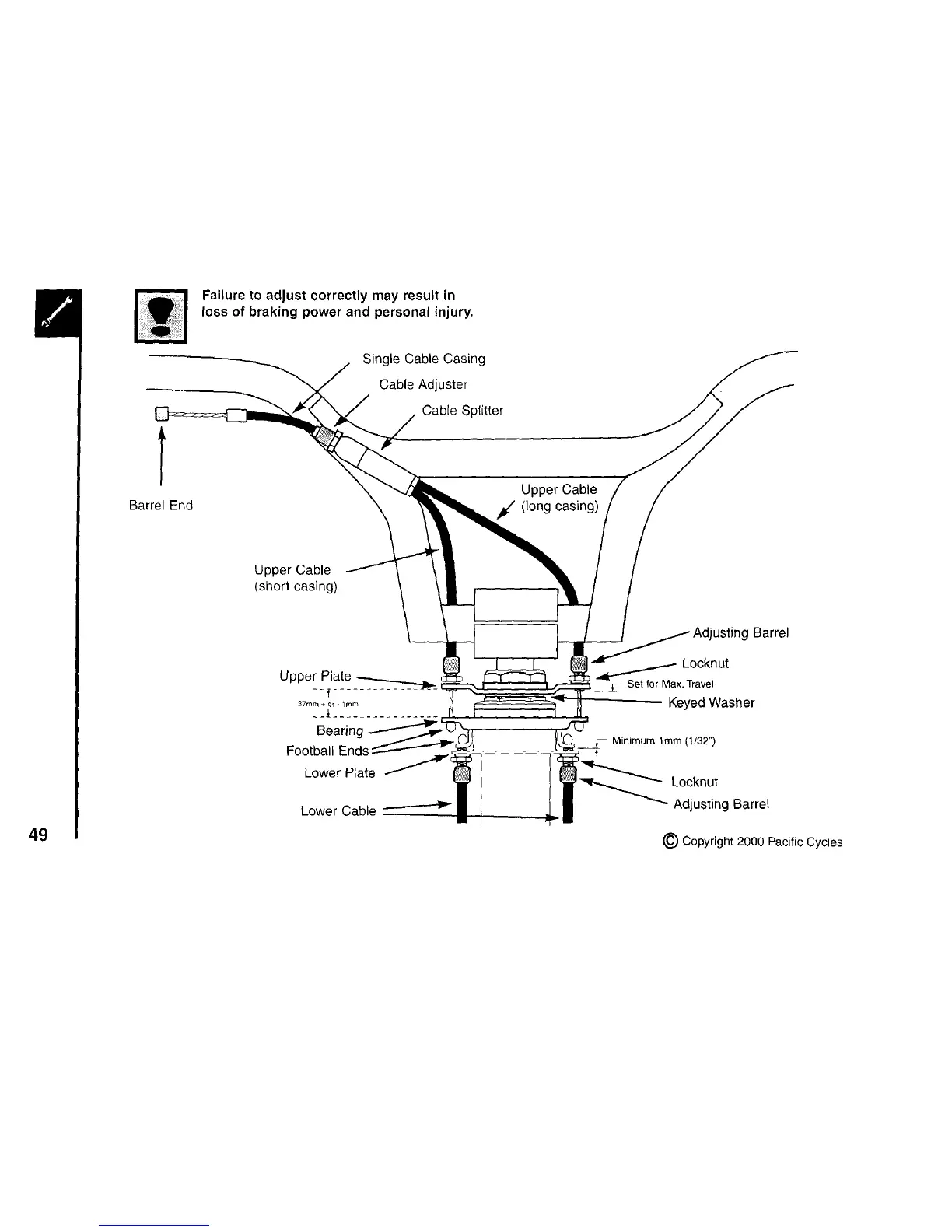

Barrel End
Failure to adjust correctly may result in
loss of braking power and personal injury.
Single Cable Casing
Cable Adjuster
Cable Splitter
Upper Cable
(long casing)
Upper Cable
(short casing)
Upper Plate
37ram + 0r - 1ram
Bearing
Football Ends
Lower Plate
Lower Cable
Barrel
Locknut
Set for Max. Travel
Keyed Washer
Minimum 1ram (1/32")
t
_._ Locknut
Adjusting Barrel
