4
Sensor Technology
32
Subject to change without notice

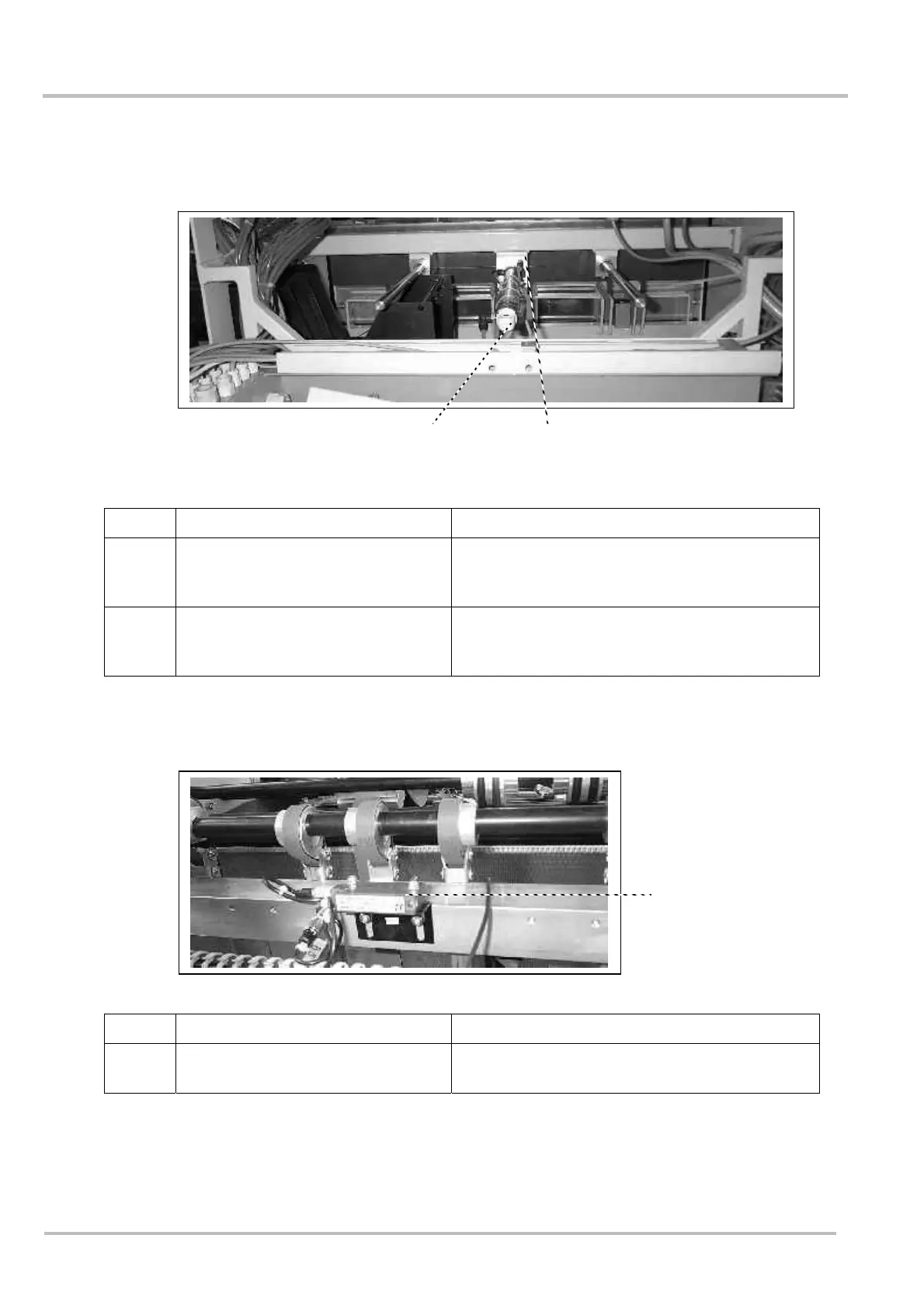

4.9 Sensor B 16 and B 17
Sensor Position/Name Adjustment
B16 Pusher Ground position When the pusher is moved manually, the
pusher must still have 2mm of movement left
after the yellow LED on Sensor B16 has lit up
B17 Pusher final working position When the pusher is moved manually, the
pusher must still have 2mm of movement left
after the yellow LED on Sensor B17 has lit up
4.10 Sensor B 19
Sensor Position/Name Adjustment
B19 Destacking level Depends on the product. Height adjustable
through long wholes.
How it works: When collecting products in the pile container the pile height grows. As soon
as the Sensor B19 is covered longer than the value of Code 115 by the upper edge of the
pile, the table lift will destack slowly until Sensor B19 is free.
B16 B17
B19
