Panasonic AG-7330 - Page 5

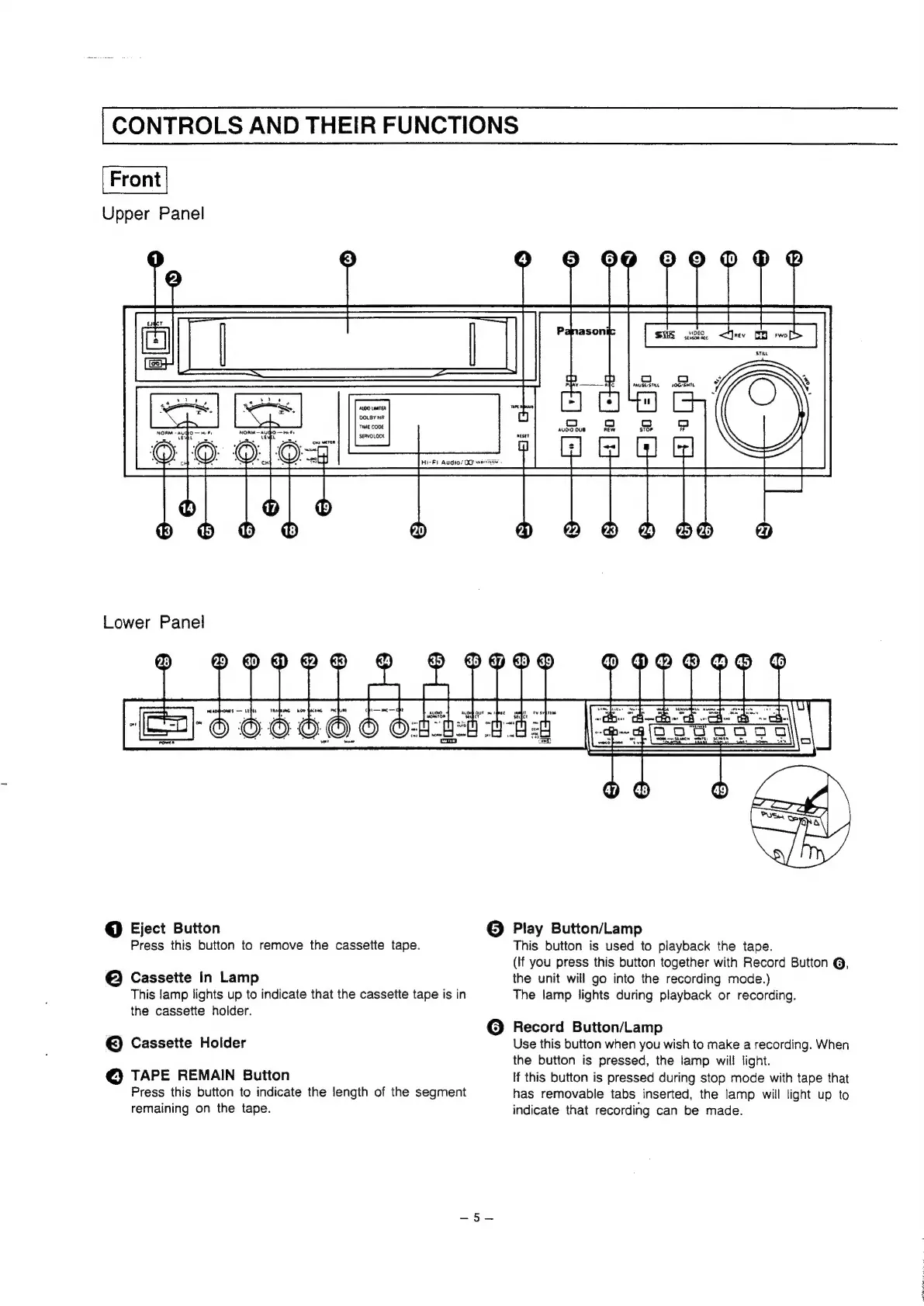

CONTROLS AND THEIR FUNCTIONS
Upper Panel
SWB sce <Jrev CQ wo[>
AUDO LAMTEA
DOLBY NR
TIME CODE
@ Eject Button @ Play Button/Lamp
Press this button to remove the cassette tape. This button is used to playback the tape.
(If you press this button together with Record Button @,
© Cassette In Lamp the unit will go into the recording mode.)
This lamp lights up to indicate that the cassette tape is in The lamp lights during playback or recording.
the cassette holder.
@ Record Button/Lamp
© Cassette Holder Use this button when you wish to make a recording. When
the button is pressed, the lamp will light.
@ TAPE REMAIN Button If this button is pressed during stop mode with tape that
Press this button to indicate the length of the segment has removable tabs inserted, the lamp will light up to
remaining on the tape. indicate that recording can be made.
