| CAMERA RECORDING
The AG-7330 may be used with an optional video camera. The recorder was designed to be used with Camera Pause Remote
Controlier (VW-RM1E) and the video camera (WV-F200A).

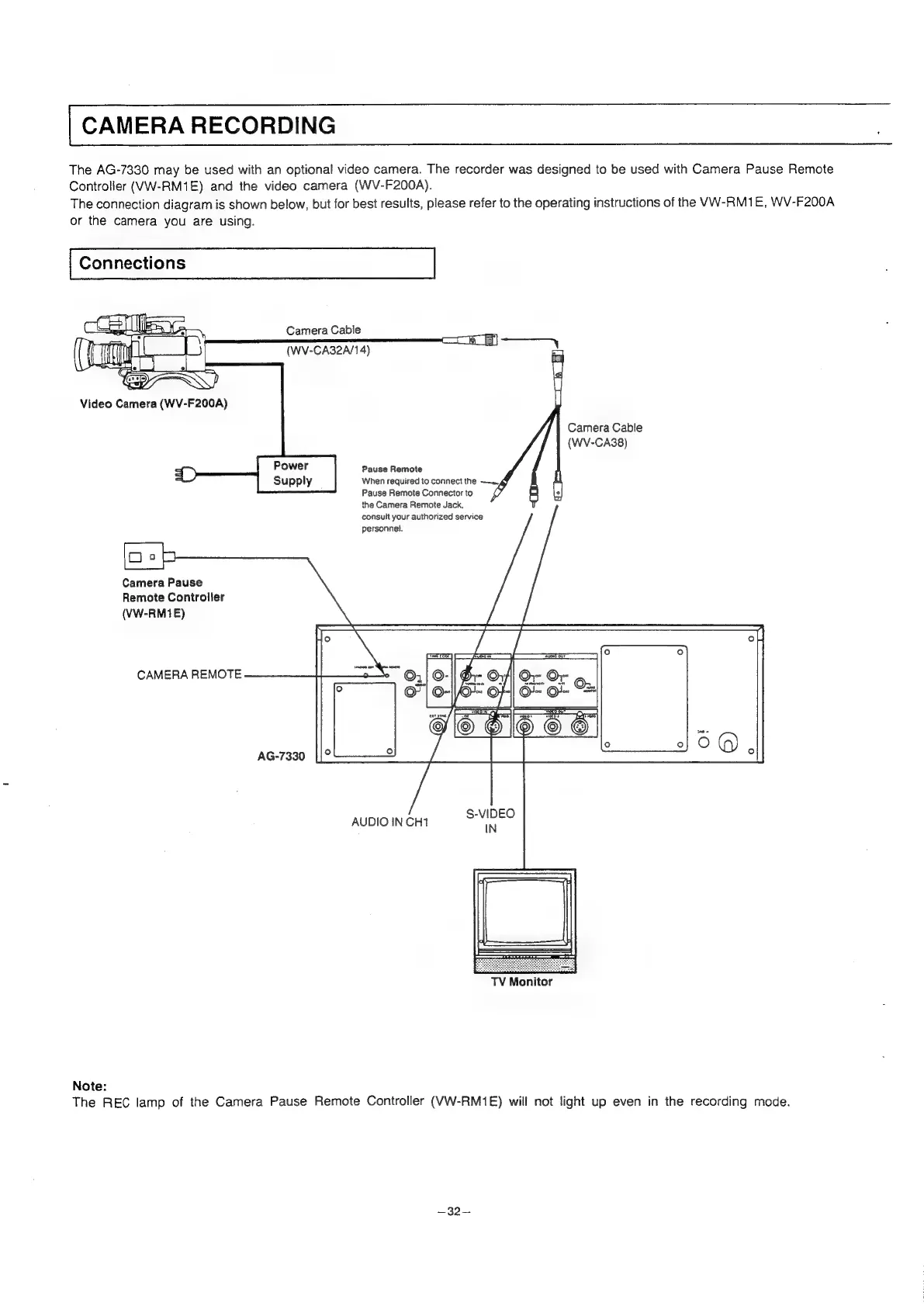

The connection diagram is shown below, but for best results, please refer to the operating instructions of the VW-RM1E, WV-F200A
or the camera you are using.
Connections
Camera Cable
(WV-CA32A/14)
Camera Cable
(WV-CA38)
Pause Remote y
When required to connect the ——4
Pause Remote Connector to
the Camera Remote Jack,
consult your authorized service
personnel.
Camera Pause
Remote Controller
(VW-RM1E)
CAMERA REMOTE
AG-7330
S-VIDEO
AUDIO IN CH1 IN
TV Monitor
Note:
The REC lamp of the Camera Pause Remote Controller (VW-RM1E) will not light up even in the recording mode.
