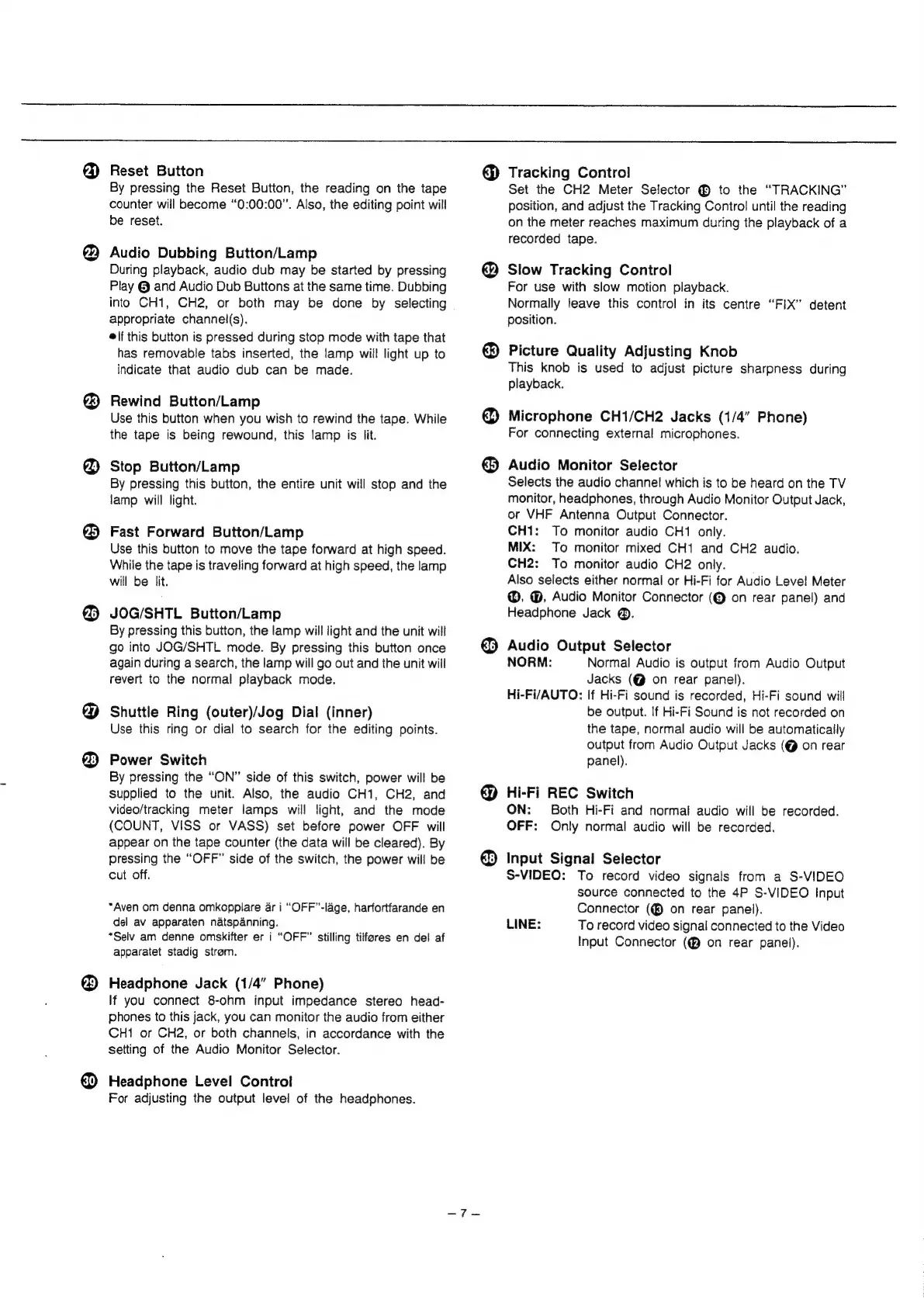

Reset Button
By pressing the Reset Button, the reading on the tape
counter will become “0:00:00”. Also, the editing point will
be reset.
Audio Dubbing Button/Lamp
During playback, audio dub may be started by pressing
Play @ and Audio Dub Buttons at the same time. Dubbing
into CH1, CH2, or both may be done by selecting
appropriate channel(s).
elf this button is pressed during stop mode with tape that
has removable tabs inserted, the lamp will light up to
indicate that audio dub can be made.
Rewind Button/Lamp
Use this button when you wish to rewind the tape. While
the tape is being rewound, this lamp is lit.
Stop Button/Lamp
By pressing this button, the entire unit will stop and the
lamp will light.
Fast Forward Button/Lamp
Use this button to move the tape forward at high speed.
While the tape is traveling forward at high speed, the lamp
will be lit.
JOG/SHTL Button/Lamp
By pressing this button, the lamp will light and the unit will
go into JOG/SHTL mode. By pressing this button once
again during a search, the lamp will go out and the unit will
revert to the normal playback mode.
Shuttle Ring (outer)/Jog Dial (inner)
Use this ring or dial to search for the editing points.
Power Switch
By pressing the “ON” side of this switch, power will be
supplied to the unit. Also, the audio CH1, CH2, and
video/tracking meter lamps will light, and the mode
(COUNT, VISS or VASS) set before power OFF will
appear on the tape counter (the data will be cleared). By
pressing the “OFF” side of the switch, the power will be
cut off.
*Aven om denna omkopplare ar i “OFF”’-lage, harfortfarande en
del av apparaten natspanning.
*Selv am denne omskifter er i “OFF” stilling tilferes en del af
apparatet stadig strem.
Headphone Jack (1/4” Phone)
If you connect 8-ohm input impedance stereo head-
phones to this jack, you can monitor the audio from either
CH1 or CH2, or both channels, in accordance with the
setting of the Audio Monitor Selector.
Headphone Level Control
For adjusting the output level of the headphones.
@) Tracking Control
Set the CH2 Meter Selector @ to the “TRACKING”
position, and adjust the Tracking Control until the reading
on the meter reaches maximum during the playback of a
recorded tape.
Slow Tracking Control
For use with slow motion playback.
Normally feave this control in its centre “FIX” detent
position.
Picture Quality Adjusting Knob
This knob is used to adjust picture sharpness during
playback.
Microphone CH1/CH2 Jacks (1/4” Phone)
For connecting external microphones.
Audio Monitor Selector
Selects the audio channel which is to be heard on the TV
monitor, headphones, through Audio Monitor Output Jack,
or VHF Antenna Output Connector.
CH1: To monitor audio CH1 only.
MIX: To monitor mixed CH1 and CH2 audio.
CH2: To monitor audio CH2 only.
Also selects either normal or Hi-Fi for Audio Level Meter
@®, @, Audio Monitor Connector (© on rear panel) and
Headphone Jack @®.
Audio Output Selector
NORM: Normal Audio is output from Audio Output
Jacks (@ on rear panel).
Hi-Fi/AUTO: If Hi-Fi sound is recorded, Hi-Fi sound will
be output. If Hi-Fi Sound is not recorded on
the tape, normal audio will be automatically
output from Audio Output Jacks (@ on rear
panel).
Hi-Fi REC Switch
ON: Both Hi-Fi and normal audio will be recorded.
OFF: Only normal audio will be recorded.
Input Signal Selector
S-VIDEO: To record video signals from a S-VIDEO
source connected to the 4P S-VIDEO Input
Connector (® on rear panel).
To record video signal connected to the Video
Input Connector (@ on rear panel).
LINE:
