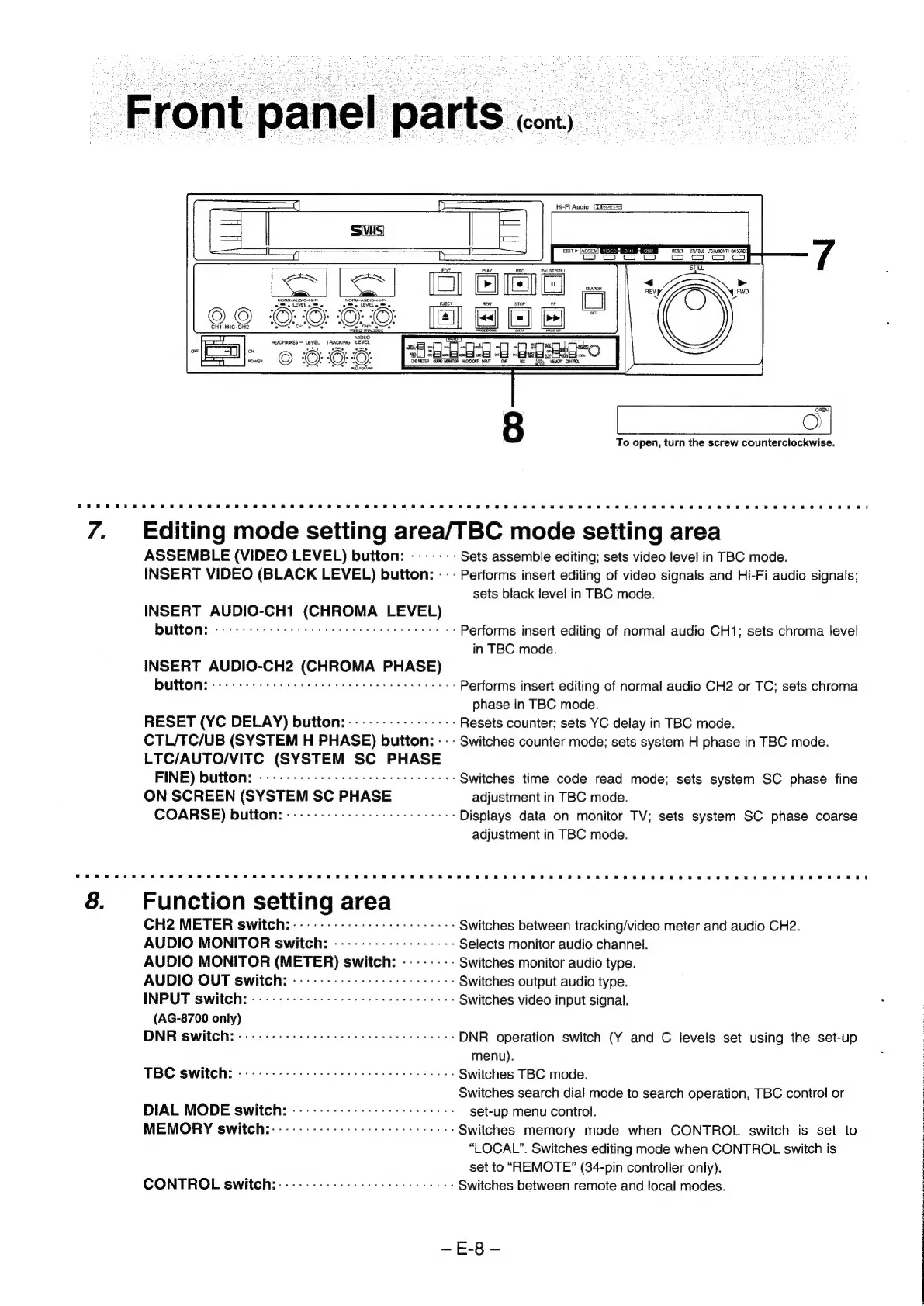

Front panel parts (on)
Hi-Fi Audio (Xibaavews)
© O CH
Fac vexomnones ~ Lever Taaokine CNEL
"al: ©: O:O:
==
CT coer ©
‘OPEN
Ke
8 :
To open, turn the screw counterclockwise.
Editing mode setting area/TBC mode setting area
ASSEMBLE (VIDEO LEVEL) button: ------- Sets assemble editing; sets video level in TBC mode.
INSERT VIDEO (BLACK LEVEL) button: - - - Performs insert editing of video signals and Hi-Fi audio signals;
sets black level in TBC mode.
INSERT AUDIO-CH1 (CHROMA LEVEL)
button: ----- 2 ste ee Performs insert editing of normal audio CH1; sets chroma level
in TBC mode.
INSERT AUDIO-CH2 (CHROMA PHASE)
BbuttOn: --- +e ere teens Performs insert editing of normal audio CH2 or TC; sets chroma
phase in TBC mode.
RESET (YC DELAY) button: ---------------- Resets counter; sets YC delay in TBC mode.
CTL/TC/UB (SYSTEM H PHASE) button: - - - Switches counter mode; sets system H phase in TBC mode.
LTC/AUTO/VITC (SYSTEM SC PHASE
FINE) button: ------------- 2s esse reer eee Switches time code read mode; sets system SC phase fine
ON SCREEN (SYSTEM SC PHASE adjustment in TBC mode.
COARSE) button: ------------: +e see eee Displays data on monitor TV; sets system SC phase coarse
adjustment in TBC mode.
Function setting area
CH2 METER switch:...--.-----+------+-+--- Switches between tracking/video meter and audio CH2.
AUDIO MONITOR switch: .----------------- Selects monitor audio channel.
AUDIO MONITOR (METER) switch: -.--.--- Switches monitor audio type.
AUDIO OUT switch: -----------+ +--+ -e eee Switches output audio type.
INPUT switch: ----------- +++ 2-2 eee eee Switches video input signal.
(AG-8700 only)
DNR switch: -.---- 5-5 0-0-2 0 eee eee DNR operation switch (Y and C levels set using the set-up
menu).
TBC switch: -------- 0-20 seer eee eee eee Switches TBC mode.
Switches search dial mode to search operation, TBC control or
DIAL MODE switch: ..------------------++-- set-up menu control.
MEMORY switch:.----------------s eee Switches memory mode when CONTROL switch is set to
“LOCAL”. Switches editing mode when CONTROL switch is
set to “REMOTE?” (34-pin controller only).
CONTROL switch:..-----------: +0 essere Switches between remote and local modes.
