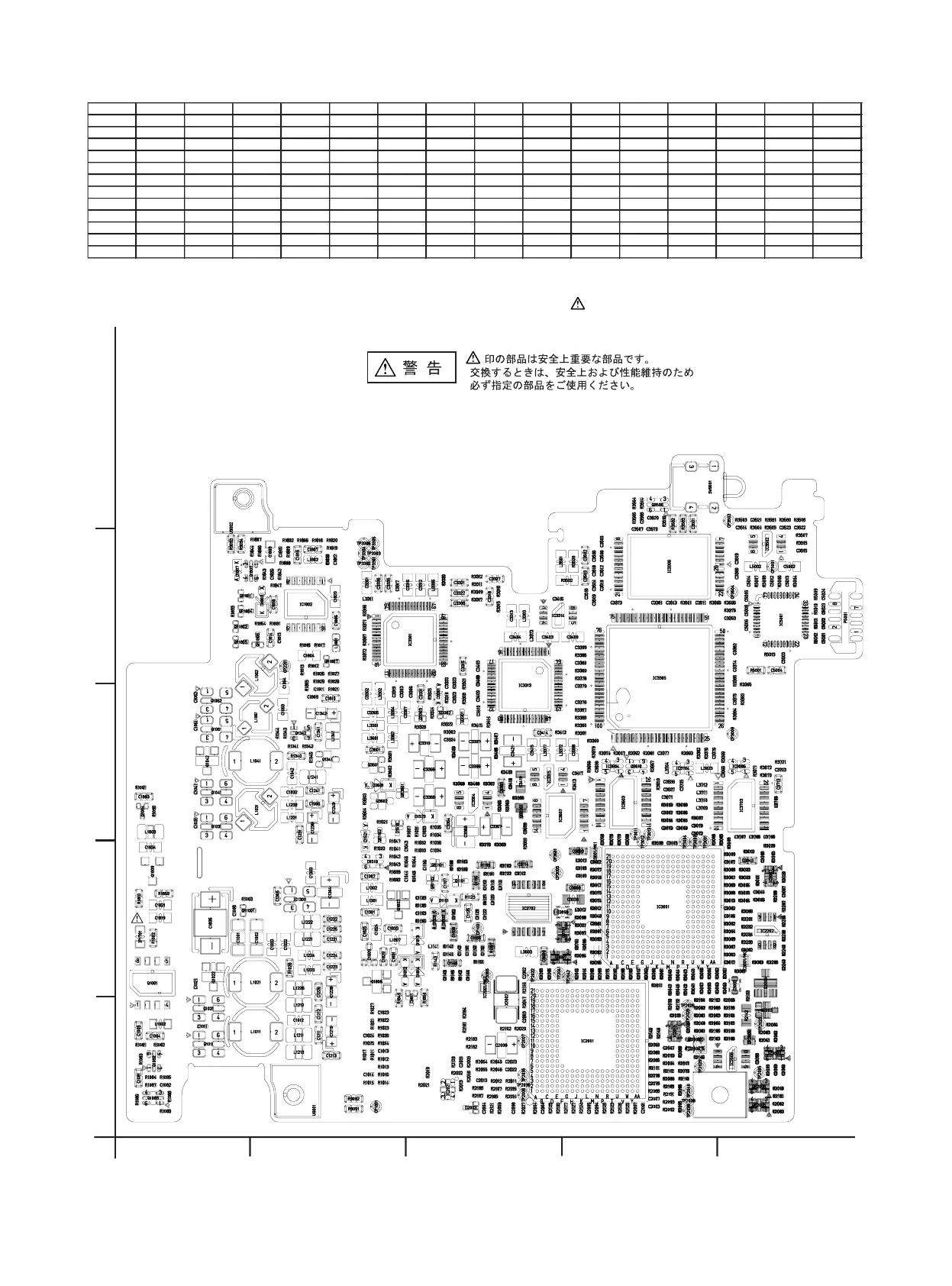

VIDEO C.B.A. (FOIL SIDE)
CBA-1
1
2
3
5
A
B C
ED
4
IMPORTANT SAFETY NOTICE:
COMPONENTS IDENTIFIED WITH THE MARK HAVE THE SPECIAL CHARACTERISTICS FOR SAFETY.
WHEN REPLACING ANY OF THESE COMPONENTS, USE ONLY THE SAME TYPE.
FOIL SIDE
REF LOC REF LOC REF LOC REF LOC REF LOC REF LOC REF LOC REF LOC
IC1300 B4 IC3305 D2 IC5001 E2 Q1083 A5 Q3506 D1 QR1805 A2 TP2023 E5 TP3003 D4
IC1802 B2 IC3306 D2 IP1701 A4 Q1101 C4 Q3601 B3 QR1806 B2 TP2025 D5 TP3004 D4
IC2001 D5 IC3313 C3 P5001 E2 Q1341 B3 Q3602 B3 QR1807 B2 TP2026 D5 TP3011 D3
IC2006 E5 IC3314 C2 Q1011 A5 Q1342 B3 Q3607 C4 QR1811 A2 TP2029 D5 TP3012 D3
IC2015 D5 IC3315 C3 Q1021 A5 Q1803 B4 Q3610 D3 QR2005 E5 TP2035 C5 TP3013 D4
IC2020 E5 IC3502 E2 Q1022 A4 Q1807 B2 Q3701 D4 QR2006 E5 TP2036 C5 TP3301 B2
IC2021 C5 IC3602 C3 Q1031 A3 Q1808 B4 QR1001 A4 QR2008 E5 TP2038 D5 TP3302 B2
IC2202 E4 IC3603 D3 Q1041 A3 Q2003 E5 QR1101 C4 QR3601 B3 TP2039 D5 TP3303 B2
IC3001 D4 IC3604 D3 Q1042 A3 Q2005 E4 QR1102 C4 SW9001 D1 TP2040 D5 TP3304 B2
IC3006 E3 IC3702 C4 Q1061 A3 Q3301 C3 QR1162 B3 TP2005 E5 TP2041 C4 TP3305 B2
IC3007 E4 IC3703 E3 Q1062 A3 Q3302 C3 QR1802 A2 TP2006 C5 TP2042 D4 TP3306 B2
IC3301 C2 IC3704 D3 Q1081 A4 Q3303 C3 QR1804 A2 TP2022 C4 TP3001 D4 X2002 C5
