19
Component system configuration
An example of the standard system consisting of the Multi-Format Camera (AK-HC3500) and peripheral components is
described below and shown on the following page. The MSU (AK-MSU935) is not required unless a multiple number of cameras
are to be controlled.
The basic system configuration includes the lens, Multi-Format Camera, viewfinder, camera control unit (CCU) and remote
operation panel (ROP).

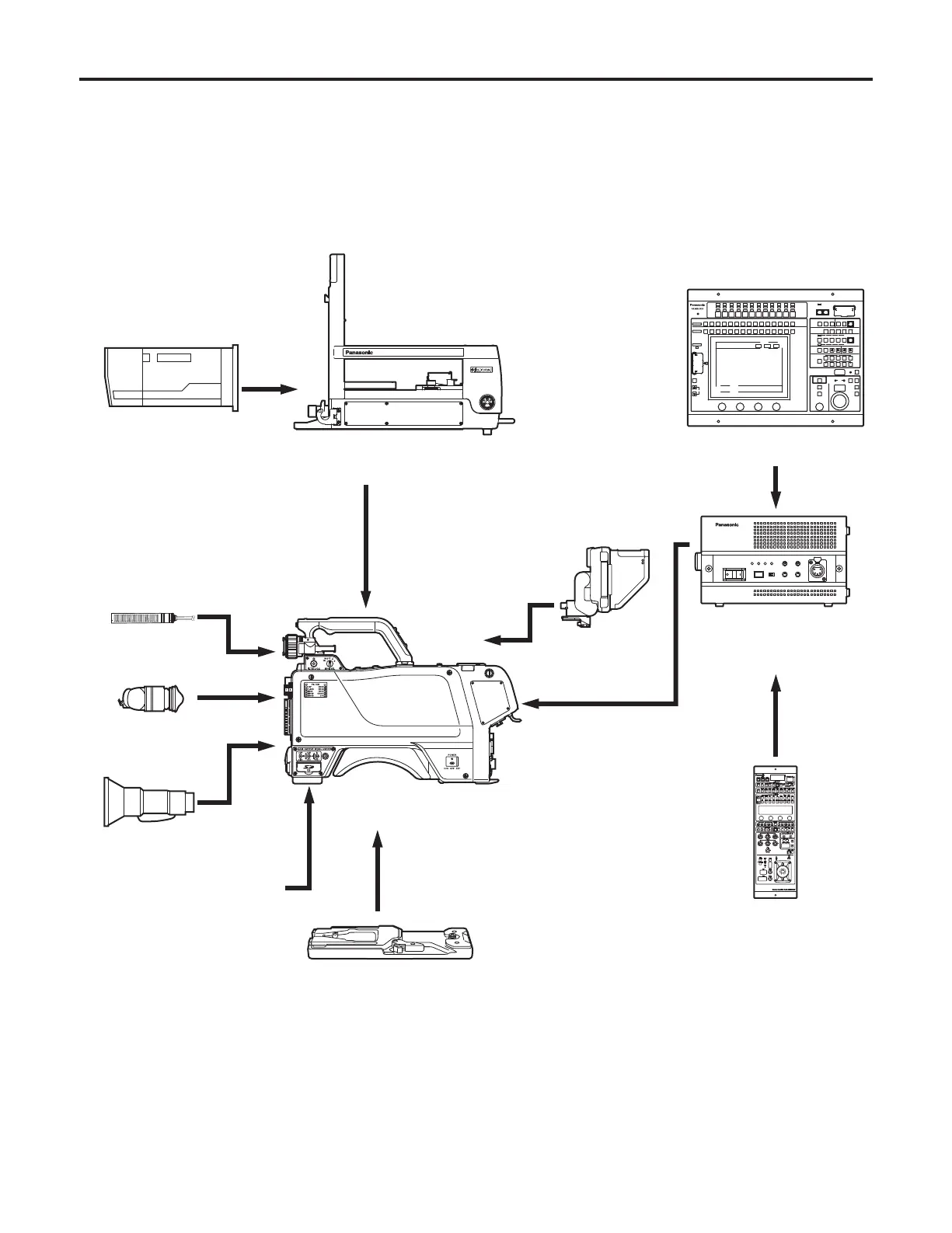

System block diagram
Microphone Kit
AJ-MC700
2˝ Electronic HD Viewfinder
AJ-HVF21
Handy lens
Multi-Format Camera
AK-HC3500
Tripod Attachment
SHAN-TM700
SD memory card
Master Setup Unit
AK-MSU935
8˝ LCD Viewfinder
AK-HVF931A
Remote Operation Panel
AK-HRP931/AK-HRP935
Camera Control Unit
AK-HCU3550
ROP cable
Large lens
Buildup Unit
AK-HBU3500
To Next Page
