Main Menu (continued)
FOCUS-IN-RED
FOCUS-IN-RED shows the outline of a subject that is in focus in red to simplify focusing the camera.
Each press of the <FUNCTION1> to <FUNCTION5> button to which the FOCUS-IN-RED has been assigned changes the display.
• To use the FOCUS-IN-RED function, it must be assigned to one of the <FUNCTION1> to <FUNCTION5> functions.
When the FOCUS-IN-RED function is displayed, use the rotary knob <PICTURE> to change detection sensitivity level (1 to 30). A
higher numerical value results in higher detection sensitivity (outlines are displayed in red even when they are not properly focused).
When you set [CHROMA] to [0] or assign [MONO] to another <FUNCTION> button to switch to monochrome, the focus will become
easier to check.
These examples show 16:9 aspect ratio images.
<Note>
• The red of the FOCUS-IN-RED function in the single and 2-screen display modes may differ slightly.
GPI
[GPI CONTROL] is used to enable and disable all GPI functions and assign functions to each of the GPI terminal (→page 60) pins.
Underlined values indicate factory defaults.
Submenu Setting Description
GPI CONTROL
DISABLE
ENABLE
Enables and disables GPI functions
[DISABLE] Disable [ENABLE] Enable
GPI1 to GPI8
UNDEF
MARKER1 ON/OFF
MARKER2 ON/OFF
MARKER BACK HALF
MARKER BACK BLACK
CENTER MARKER
CROSS MARKER
INPUT SEL. VIDEO
INPUT SEL. SDI1
INPUT SEL. SDI2
INPUT SEL. HDMI
INPUT SEL. DVI-I
INPUT SEL. INT-SG
SD ASPECT
SCAN
R-TALLY
G-TALLY
MONO
GAMMA SEL. FILM
GAMMA SEL. STDIO/PST
GAMMA SEL. CINEMA
PIXEL TO PIXEL
FOCUS-IN-RED
ZEBRA
REMOTE STANDBY
Assigns functions to the GPI
input
terminal pins.
The same item can be set to any of the terminals. (For details, refer to
page
60
)
<Note>
• Operation may not be possible depending on the setting conditions.
Example: SD ASPECT operation when input signal is HD

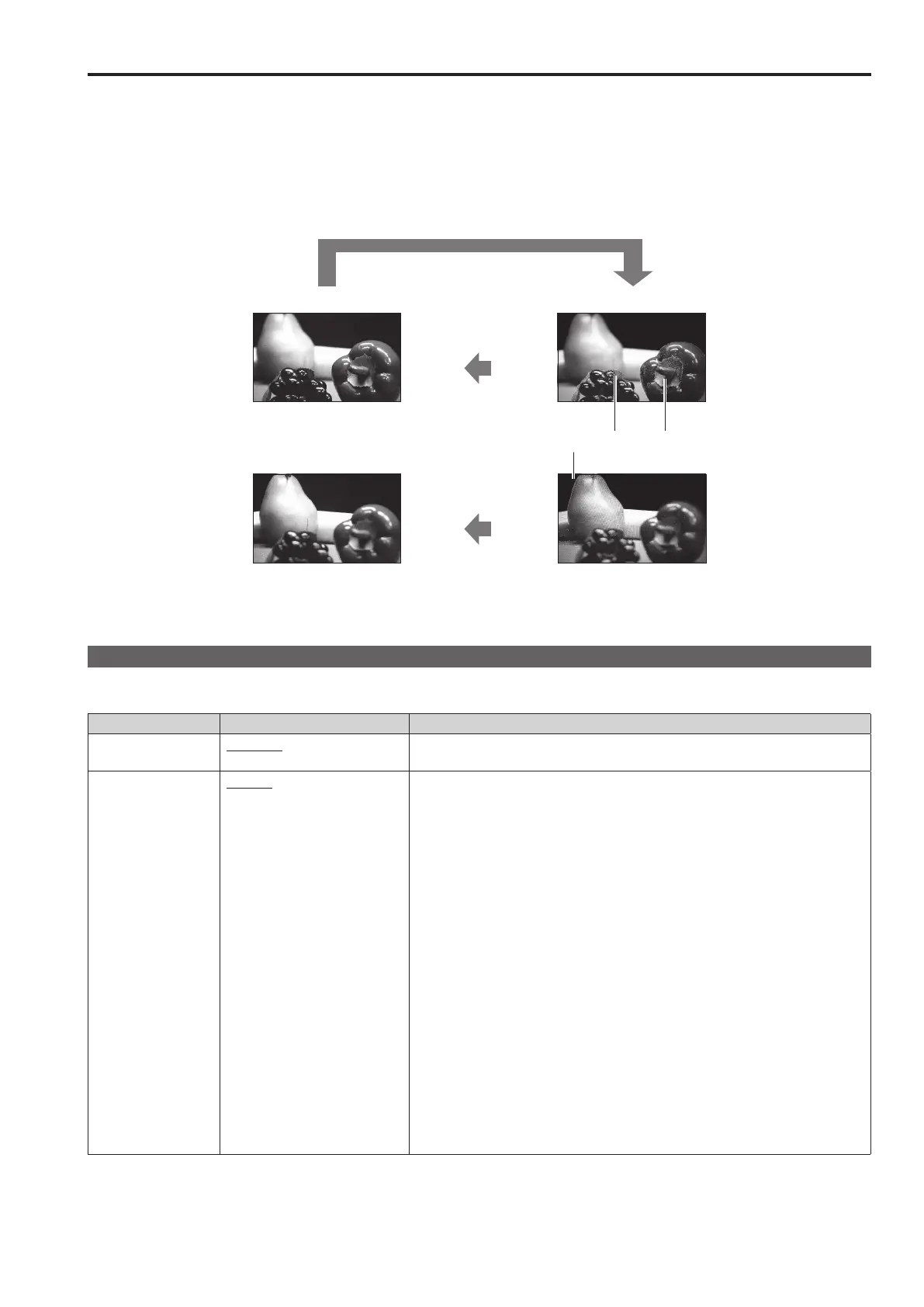

Press the <FUNCTION> button to which the
FOCUS-IN-RED function has been assigned
Normal screen FOCUS-IN-RED display
Press the same
button again
Press the same
button again
The outlines in focus are displayed in red
The foreground is
in focus
The background
is in focus
