Panasonic ceCT-27D10 - TV - Set-Top (DTV-STB) Connection

Digital TV
-
Set-Top Box (DTV-STB)
Connection
Digital TV -Set-Top Box (DTV-STB)
Connection
Use

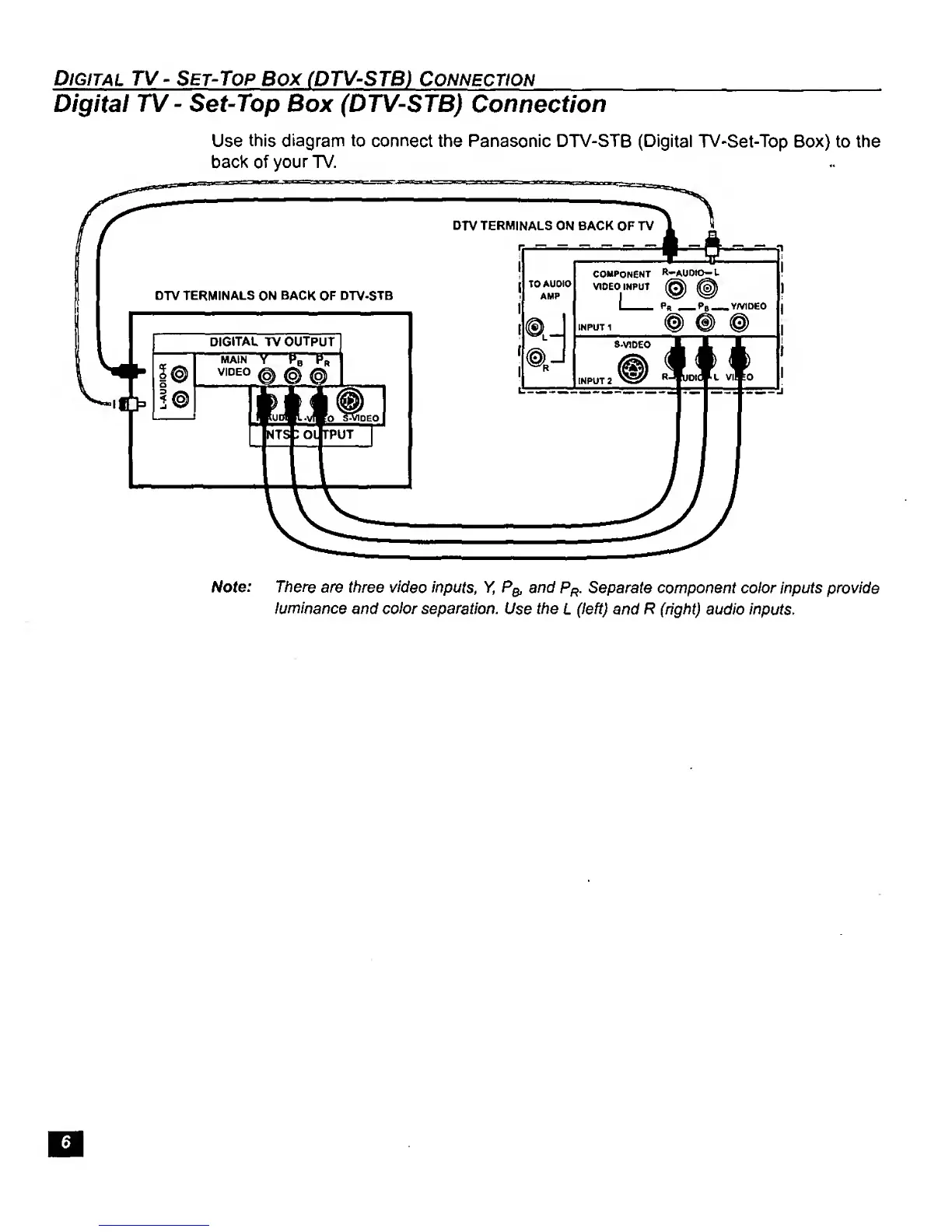

this diagram
to connect the Panasonic DTV-STB
(Digital TV-Set-Top
Box) to the
back
of your TV.
Note: There are three video inputs, Y, Pq,
and
Pr.
Separate component color inputs provide
luminance
and
color
separation.
Use
the
L
(left)
and R (right) audio inputs.
