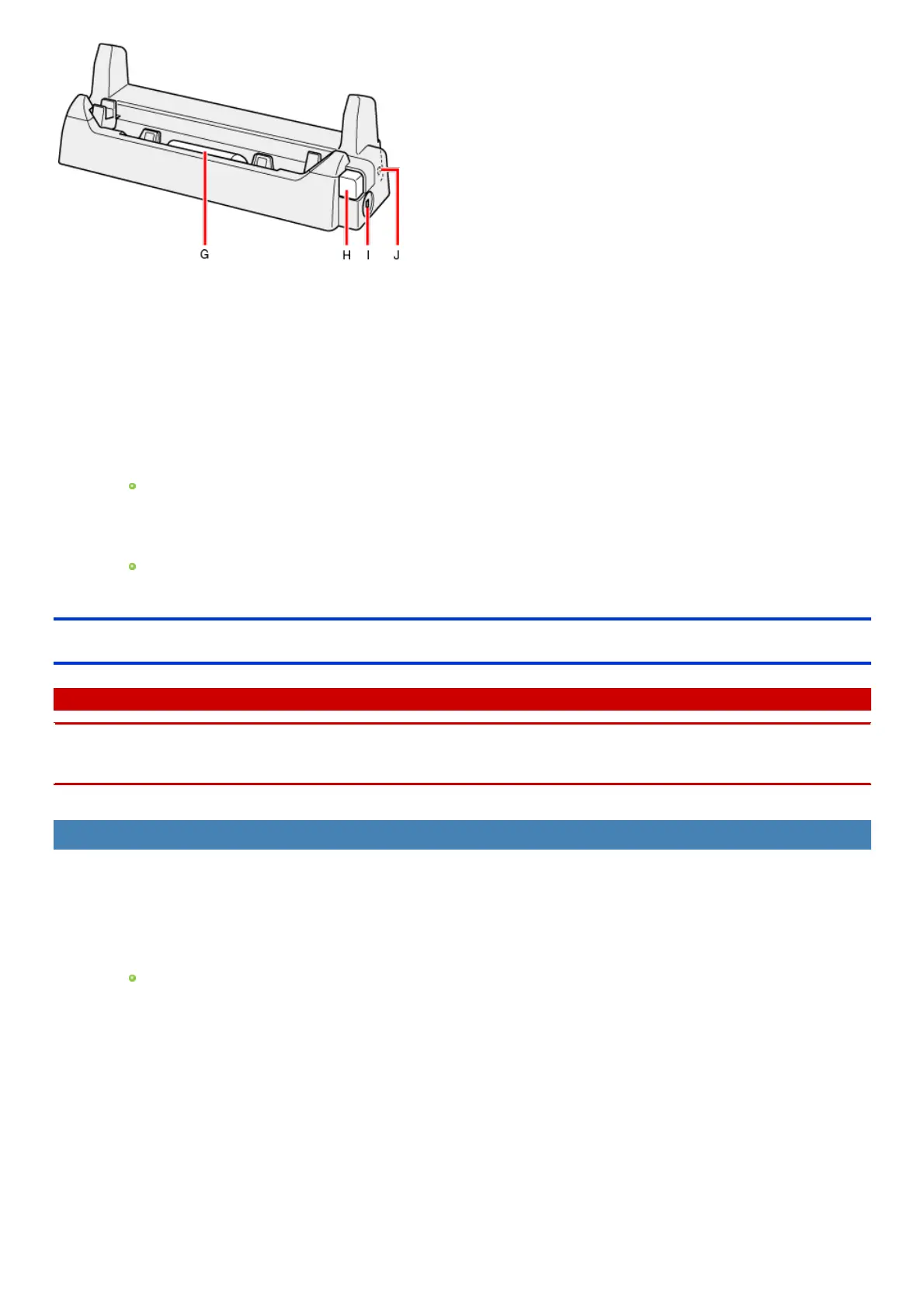

G. Expansion Bus Connector
Thisconnects to the expansion bus connector on the bottom of the computer.
H. Lever
Use thislever when disconnecting the cradle from the computer.
I. Security slot (Side front)
A Kensington cable can be connected.
If the cable for security is connected to this security slot after the computer is connected, the computer cannot be disconnected because the lever
is locked.
For more information, read the manual that comes with the cable.
J. Security slot (Side back)
A Kensington cable can be connected.
For more information, read the manual that comes with the cable.
Connecting/Disconnecting the Computer
C A U T I O N
n Make sure to turn the computer off for connection/disconnection.
n Do not connect or disconnect the Cradle while the computer is powered on or in the sleep mode (i.e., when the power indicator is blink-
ing).
Connecting
1. Turn off the computer.
Disconnect allthe devices and cables and close the terminal cover.
2. Connect the AC adaptor to DC-IN jack of the Cradle.
Connect the AC cord to the AC adaptor, and connect to an AC outlet.
Refer to the “
OPERATING INSTRUCTIONS - Read Me First
” accompanying computer for information on proper handling of the AC
adaptor and AC cord.
