9
Getting StartedUseful InformationTroubleshootingAppendix

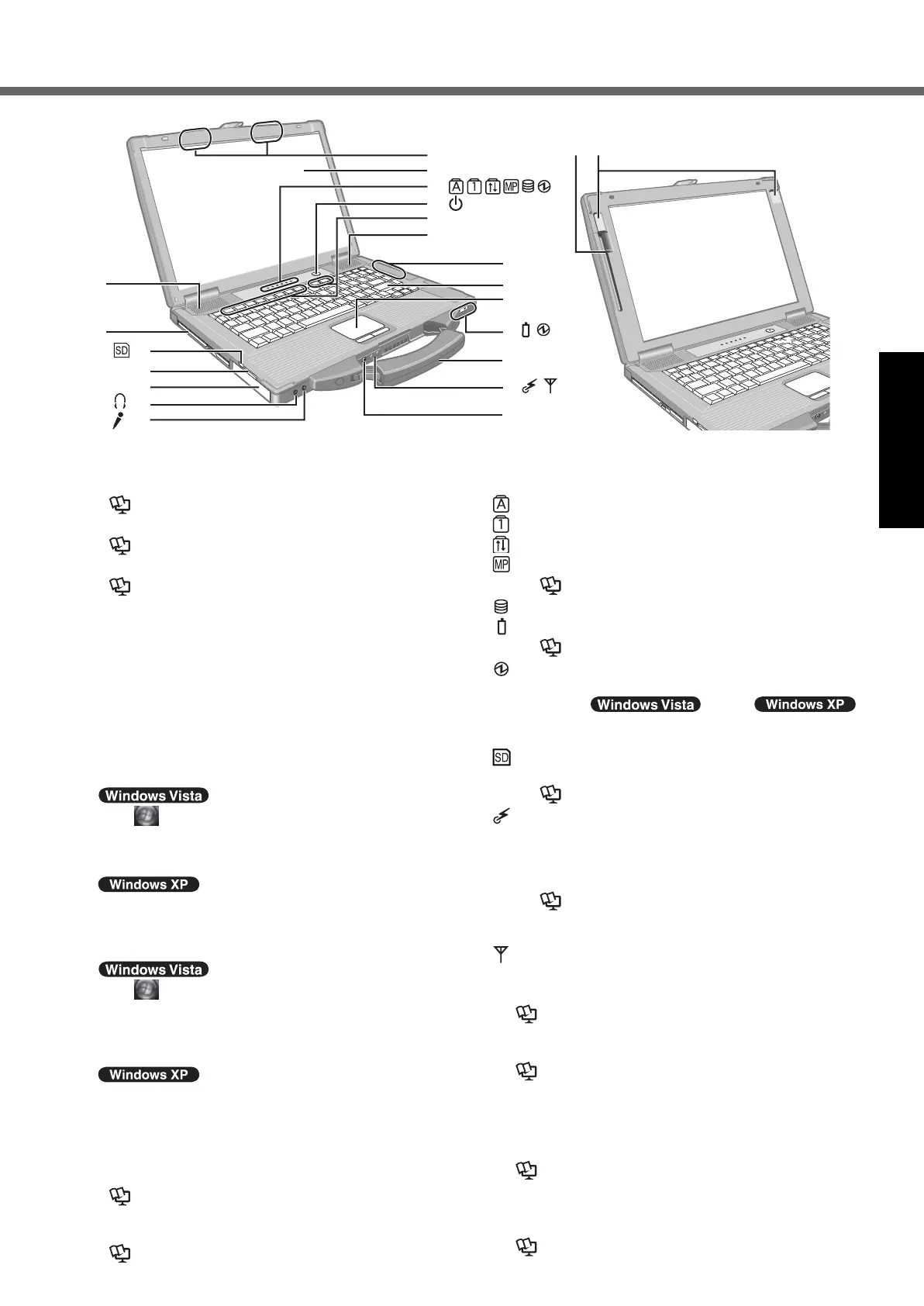

Description of Parts
A : Speaker
Î Reference Manual “Key Combinations”
B : Multimedia pocket
Î Reference Manual “Multimedia Pocket”
C : SD Memory Card slot
Î Reference Manual “SD Memory Card”
D : Battery pack
Specified Battery pack: CF-VZSU29ASU
E : Headphone jack
You can connect headphones or amplified speakers.
When they are connected, audio from the internal
speakers is not heard.
F : Microphone jack
A condenser microphone can be used. If other types
of microphones are used, audio input may not be pos-
sible, or malfunctions may occur as a result.
• When recording in stereo using a stereo microphone:
Click (Start) - [Control Panel] - [Hardware and
Sound] - [Sound] - [Recording] - [Microphone] -
[Properties], and then add a check mark for [No Fil-
tering] in [Microphone Enhancements].
Click [start] - [All Programs] - [SoundMAX] - [Control
Panel] and select [Microphone], and then add a check
mark for [No Filtering] in [Microphone Enhancements].
• When using a monaural microphone with a 2-terminal plug:
Click (Start) - [Control Panel] - [Hardware and
Sound] - [Sound] - [Recording] - [Microphone] -
[Properties], and then add a check mark for [Voice
Recording] in [Microphone Enhancements].
Otherwise, only audio on the left track will be recorded.
Click [start] - [All Programs] - [SoundMAX] - [Control Panel]
and select [Microphone], and then add a check mark for
[Voice Recording] in [Microphone Enhancements].
Otherwise, only audio on the left track will be recorded.
G : Wireless LAN/Wireless WAN antenna
<Only for model with wireless LAN/wireless WAN>
Î Reference Manual “Wireless LAN”
H : LCD
<Only for model with touchscreen>
Î Reference Manual “Touchscreen”
I : LED indicator
Caps lock
Numeric key (NumLk)
Scroll lock (ScrLk)
Multimedia pocket device status
Î Reference Manual “Multimedia Pocket”
Hard disk drive status
Battery status
Î Reference Manual “Battery Power”
Power status
(Off: Power off/Hibernation, Green: Power on, Blink-
ing green: Sleep/
Standby, Blinking green rapidly: Cannot power on or
resume due to low temperature.)
SD Memory Card status
(Blinking: During access or a password is requested)
Î
Reference Manual “SD Memory Card”
Wireless ready
This indicator lights when Wireless LAN, Blue-
tooth, and/or Wireless WAN are connected and
ready. It does not necessarily indicate the On/Off
condition of the wireless connection.
Î
Reference Manual
“Disabling/Enabling
Wireless Communication” “Wireless LAN”
“Bluetooth”
Wireless WAN status
J : Power switch
K : Function key
Î Reference Manual “Key Combinations”
L : Bluetooth antenna
<Only for model with Bluetooth>
Î Reference Manual “Bluetooth”
M : Keyboard
N : Touch pad
O : Carrying handle
P : Wireless switch
Î Reference Manual “Disabling/Enabling Wire-
less Communication” “Wireless LAN” “Bluetooth”
Q : Stylus holder <Only for model with touchscreen>
R : Keyboard LED <Only for model with touchscreen>
Î Reference Manual “Key Combinations”
I
C
D
E
F
B
A
G
H
J
K
L
RQ
A
<Model without Touchscreen>
<Model with Touchscreen>
I
M
N
O
P
I
I
CPE01883VA_CF-52mk2_XV_E.book Page 9 Thursday, May 28, 2009 11:14 AM
