Panasonic CF-AX3 Series User Manual

16
Getting Started

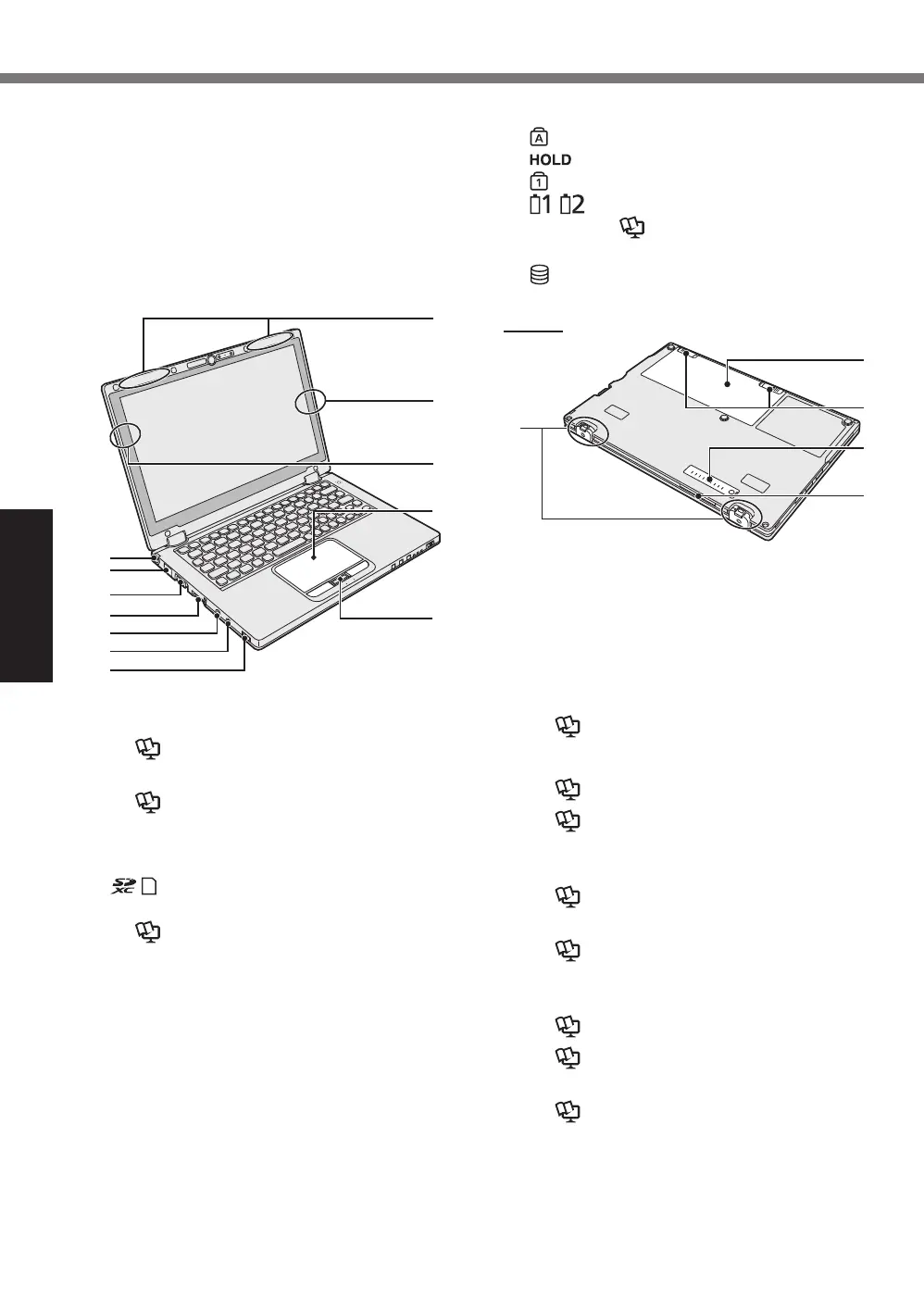

Description of Parts
R: Power switch
Power status indicator

Off: Power off/Hibernation

Green: Power on

Blinking green: Sleep
S: LED indicator
: Caps Lock
: HOLD mode
: Numeric key (NumLk)
: Battery status
è
Reference Manual “Battery
Power”
: Drive status
J
H
K
L
A
B
C
D
E
F
G
I
Bottom
N
Q
O
P
M
A: DC-IN jack
B: LAN port
è
Reference Manual “LAN”
C:VGA port
è
Reference Manual “External Dis-
play”
D: SD Memory Card slot
: SD Memory Card status
(Blinking: During access)
è
Reference Manual “SD Memory
Card”
E: Microphone jack
A condenser microphone can be used. If
other types of microphones are used, au-
dio input may not possible, or malfunctions
may occur as a result.
F: Headphone jack
You can connect headphones or amplied
speakers.
When they are connected, audio from the
internal speaker is not heard.
G: Wireless switch
è
Reference Manual “Disabling/En-
abling Wireless Communication”
è
Reference Manual “Wireless LAN”
è
Reference Manual “Bluetooth”
H: Wireless WAN antenna
<Only for model with wireless WAN>
è
Reference Manual “Wireless WAN”
I: Wireless LAN antenna
è
Reference Manual “Wireless LAN”
J: Wireless LAN antenna / Bluetooth an-
tenna
è
Reference Manual “Wireless LAN”
è
Reference Manual “Bluetooth”
K: Touch pad
è
Reference Manual “Using the Touch
Pad”
L: HOLD button
On: HOLD mode activated
Off: HOLD mode deactivated
CF-AX3mk2_EU_M.indb 16 2013/11/18 12:12:52
