Panasonic CF-H2 series

12
Getting Started

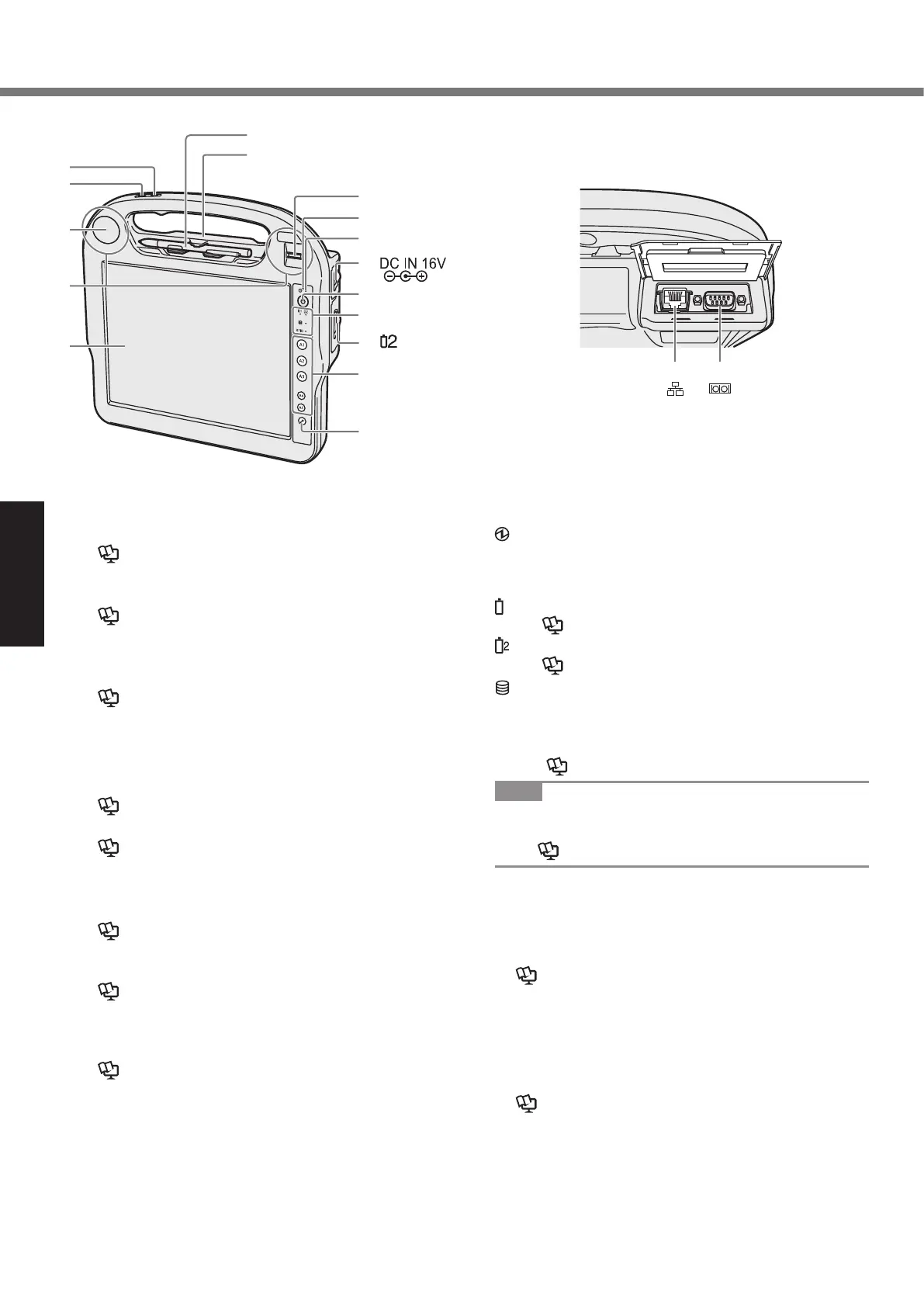

Description of Parts
A: B1 Button
<Only for model with RFID Reader>
è Reference Manual “RFID Reader”, “Hardware
Buttons”
<Only for model without RFID Reader>
è Reference Manual “Hardware Buttons”
B: Barcode Reader Button
*1
/ B2 Button
*2
*1
Only for model with Barcode Reader
*2
Only for model without Barcode Reader
è Reference Manual “Barcode Reader”, “Setup
Utility”
C: Speaker
D: Wireless WAN Antenna
<Only for model with wireless WAN>
è
Reference Manual “Wireless WAN”
E: LCD
è
Reference Manual “Screen Input Operation”
F: Pen Holder
G: Smart Card Slot
<Only for model with Smart Card Slot>
è
Reference Manual “Smart Card”
H: Fingerprint Reader
<Only for model with Fingerprint Reader>
è
Reference Manual “Fingerprint Reader”
I: Ambient Light Sensor
Backlight will be turned off with a bright environment
so the battery operation time becomes long.
è
Reference Manual “Setup Utility”
J: LED Indicator
: Power status
 Off: Power off/Hibernation
 Green: Power on
 Blinking green: Sleep
1
: Battery 1 status
è Reference Manual “Battery Power”
: Battery 2 status
è Reference Manual “Battery Power”
: Drive status
RFID:
<Only for model with RFID Reader>
RFID Reader status
è Reference Manual “RFID Reader”
NOTE
l When you do not use the RFID Reader, you can
turn it off by using the Panasonic Dashboard.
è Reference Manual “Panasonic Dashboard”
K: DC-IN Jack
L: Power Switch
M: Battery 2 Case
N: Application Buttons 1-5
è
Reference Manual “Hardware Buttons”
O: Security Button
P: LAN Port
*3
/ 2nd USB 2.0 Port
*4
*3
Only for model with LAN
*4
Only for model with 2nd USB 2.0 Port
Q: Serial Port
è
Reference Manual “Serial Port”
A
B
D
E
G
F
H
I
J
K
L
M
N
O
J
C
P Q
