– 34 –
MAC9512086C2
CS-A181KR
Servicing Information

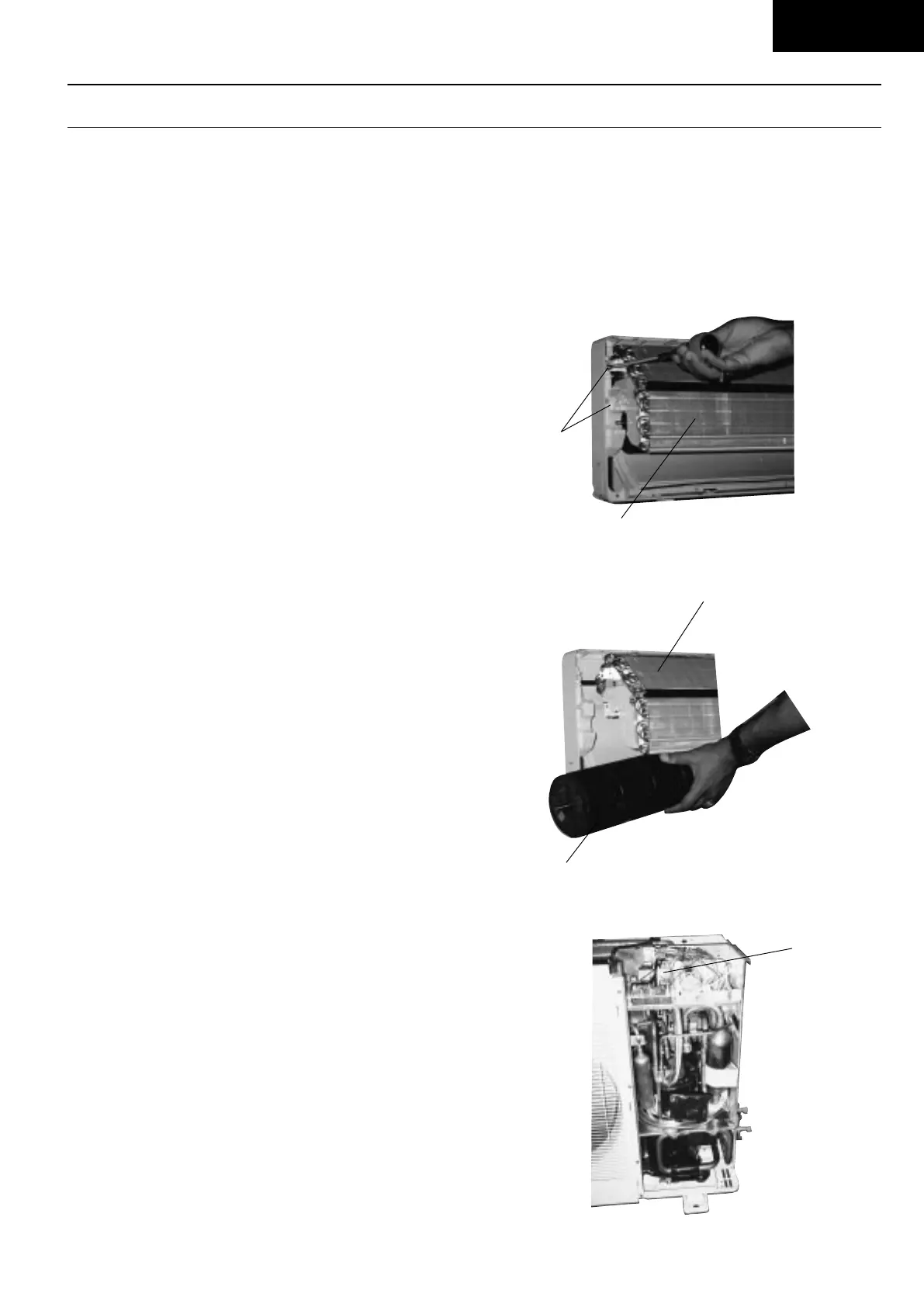

● Cross Flow Fan Removal Procedure
1. Remove the Fan Mounting Screws and Bearing.
(Refer to No. 4 of Indoor Fan Motor the removal
procedure)
2. Loosen the 2 screws mounted at the left side of the
evaporator.
3. Pull the left side of the evaporator forward slightly
and remove the cross Flow Fan.
(B) Disassembly of the parts (Outdoor Unit)
● Inspection points for the Outdoor Electronic
Controller
1. The Electronic Controller, Can be seen by removing
the cabinet Top plate and Front plate, as shown in the
Fig. 10
Screws
Evaporator
Fig. 8
Evaporator
Fig. 9
Cross Flow Fan
Fig. 10
Electronic
Controller
Untitled-3 6/10/00, 3:15 PM34
