MAC9512086C2
CS-A73KE
Indoor Unit

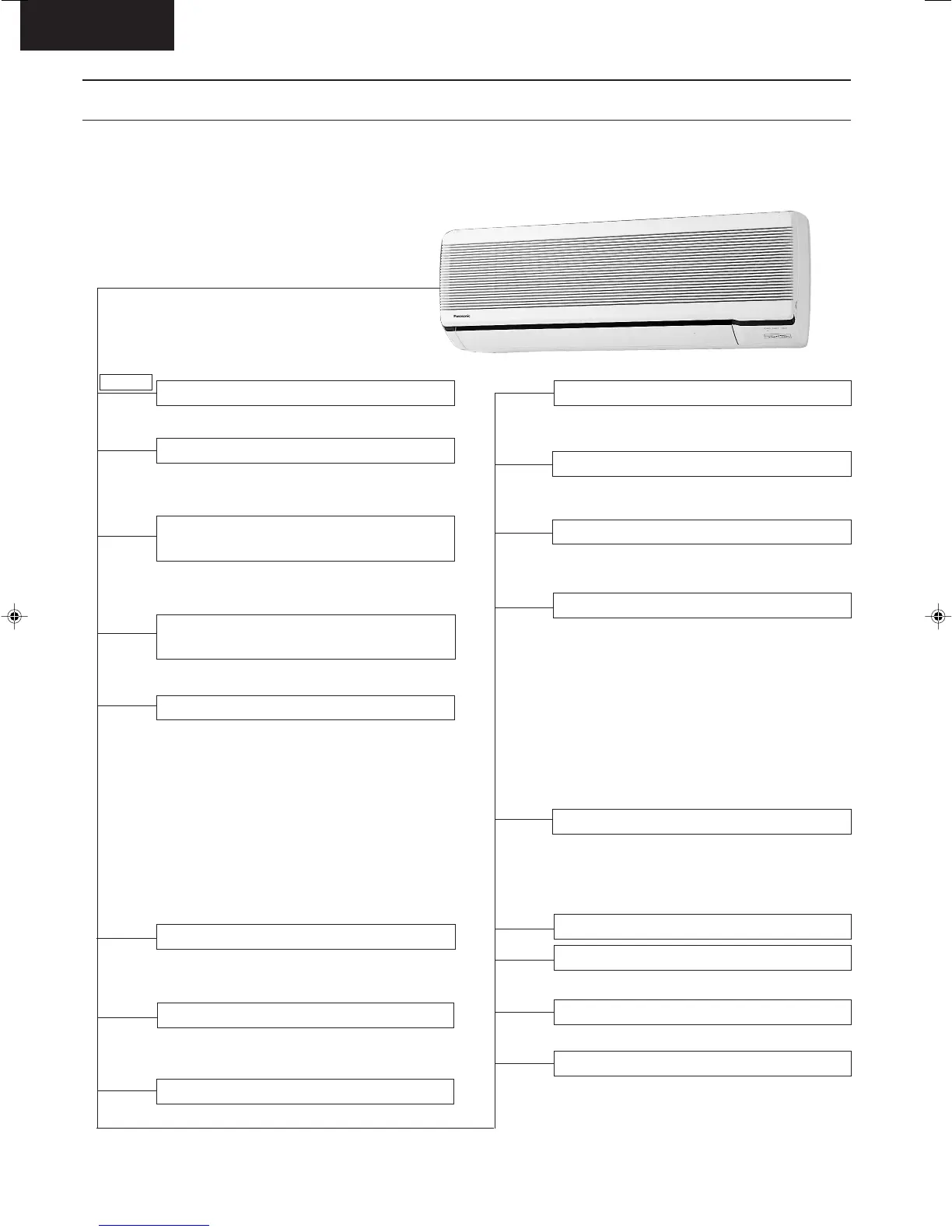

Functions
Power Switch OFF / ON
POWER I
Auto Operation Button
• Used when the remote control cannot be
used.
Remote Control Signal Receiving
Sound
• It can be controlled by pressing Auto
Operation Button for 10 seconds.
AUTO
OFF / ON
Operation Test Running / Pump
Down Switch
TEST RUN
OFF / ON
Operation Indication Lamps (LED)
• POWER (Red)...... Lights up in operation,
blinks in Automatic
Operation Mode judging
• SLEEP (Orange)..... Lights up in Sleep
Mode Operation
• TIMER (Orange)..... Lights up in Timer
Setting
• POWERFUL
(Orange).....
Lights up in Powerful
Mode Operation
• ECONOMY
(Green).....
Lights up in Economy
Mode Operation
Random Auto Restart Control
• Operation is restarted randomly after power
failure at previous setting mode.
Anti-Freezing Control
• Anti-Freezing control for indoor heat
exchanger. (Cooling and Soft Dry)
• Used when test running or servicing.
Sleep Mode Auto Control
• Indoor Fan operates at low speed.
• Operation stops after 8 hours.
Indoor Fan Speed Control
• High, Medium and Low.
• Automatic Fan Speed Mode
– Heating : Fan speed varies from Me →
SLo in accordance with indoor
heat exchanger.
– Cooling : Fan rotates at Hi and Me
speed. Deodorizing control is
available.
– Soft Dry : Fan rotates at SLo speed.
Deodorizing control is avail-
able.
Airflow Direction Control
• Automatic air swing and manual adjusted
by remote control for vertical airflow.
• Manually adjusted by hand for horizontal
airflow.
Operation Mode
• Heating, Cooling, Soft Dry and
Automatic Mode.
Time Delay Safety Control
• Restarting is inhibited for appro. 3 minutes.
7 Minutes Time Save Control
• Cooling Operation only.
Starting Current Control
Powerful Operation
• Reaches the desired room temperature
quickly.
Economy Operation
• To reduce electrical power consumption.
Hot-Start Control
• The indoor fan remain stop until the indoor
heat exchanger temperature reaches 30°C
• The indoor fan will operate at SLo and Lo
–
when indoor heat exchanger temperature
reaches 30°C - 39°C
Untitled-10 6/19/00, 11:04 AM3
