Panasonic CS-A9MKD - Cs-A12 Mkd Cu-A12 Mkd

27

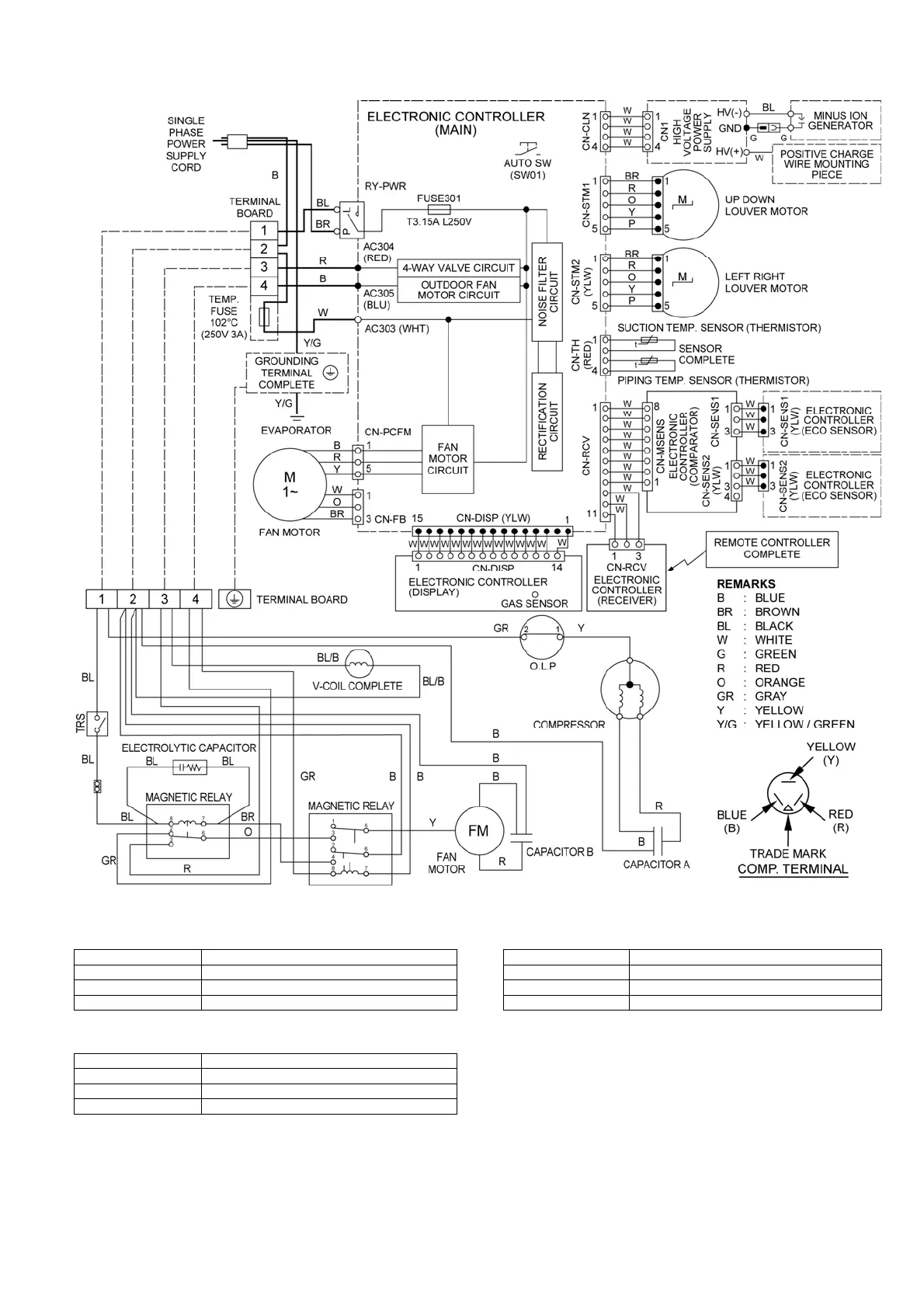

8.2 CS-A12MKD CU-A12MKD
Resistance of Indoor Fan Motor Windings
Resistance of Compressor Windings
MODEL CS-A12MKD MODEL CU-A12MKD
CONNECTION CWA921434 CONNECTION 2PS206D2BA06
BLUE-YELLOW 351.3Ω C-R 3.252Ω
YELLOW-RED 343.9Ω C-S 4.313Ω
Note: Resistance at 20°C of ambient temperature. Note: Resistance at 20°C of ambient temperature.
Resistance of Outdoor Fan Motor Windings
MODEL CU-A12MKD
CONNECTION CWA951121J
BLUE-YELLOW 200.4Ω
YELLOW-RED 252.5Ω
Note: Resistance at 25°C of ambient temperature.
