12.7 Vertical Airflow Direction Control
12.7.1 Auto Control
(Cooling and Soft Dry Operation Condition)

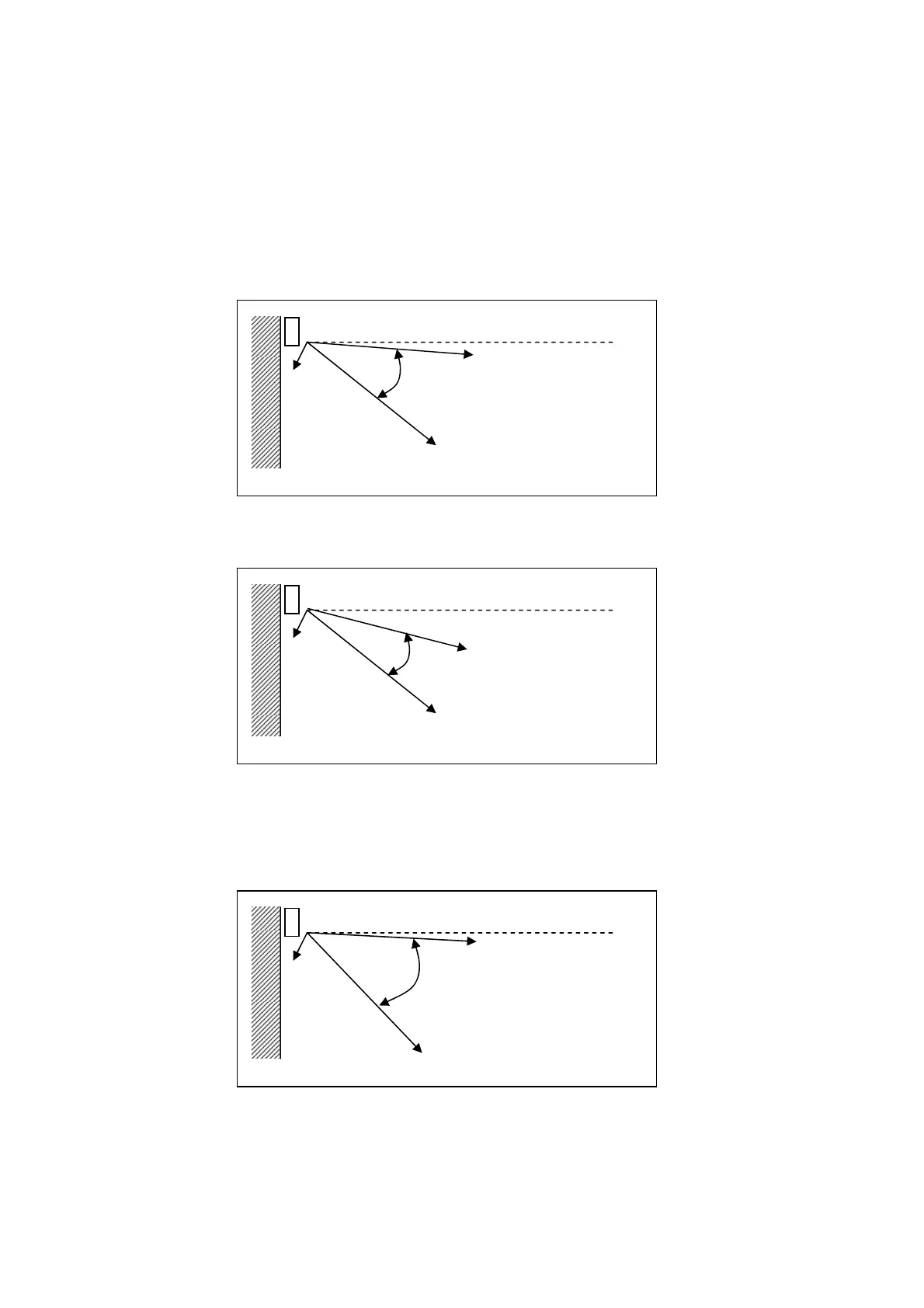

• When the vertical airflow direction is set to Auto using the remote control, the louver swings up and down as
shown in the diagram.
• When stops operation using the remote control, the discharge vent is reset and stops at the closing position.
• During Cooling operation or Soft Dry operation, indoor fan motor may stop to rotate at certain periods. At that
condition, the louver will stop swinging.
For CS-A9MKD and CS-A12MKD
For CS-A18MKD, CS-A24MKD and CS-A28MKD
(Heating Operation Condition)
• When the piping air temperature reaches 38°C, the louver is changed from upper to lower limit. When the piping
air temperature falls 35°C, the louver is changed from lower to upper limit.
For CS-A9MKD and CS-A12MKD
Upper limit for cooling mode
and soft dry mode/11°
22°
Closing
position
/ 135°
Swing up and down
Lower limit for cooling mode and
soft dry mode/33°
Horizontal
Upper limit for cooling mode
and soft dry mode/17°
22°
Closing
position
/ 148°
Swing up and down
Lower limit for cooling mode and
soft dry mode/39°
Horizontal
51°
Closing
position
/ 135°
Lower limit for heating mode/62°
Horizontal
Upper limit/11°
