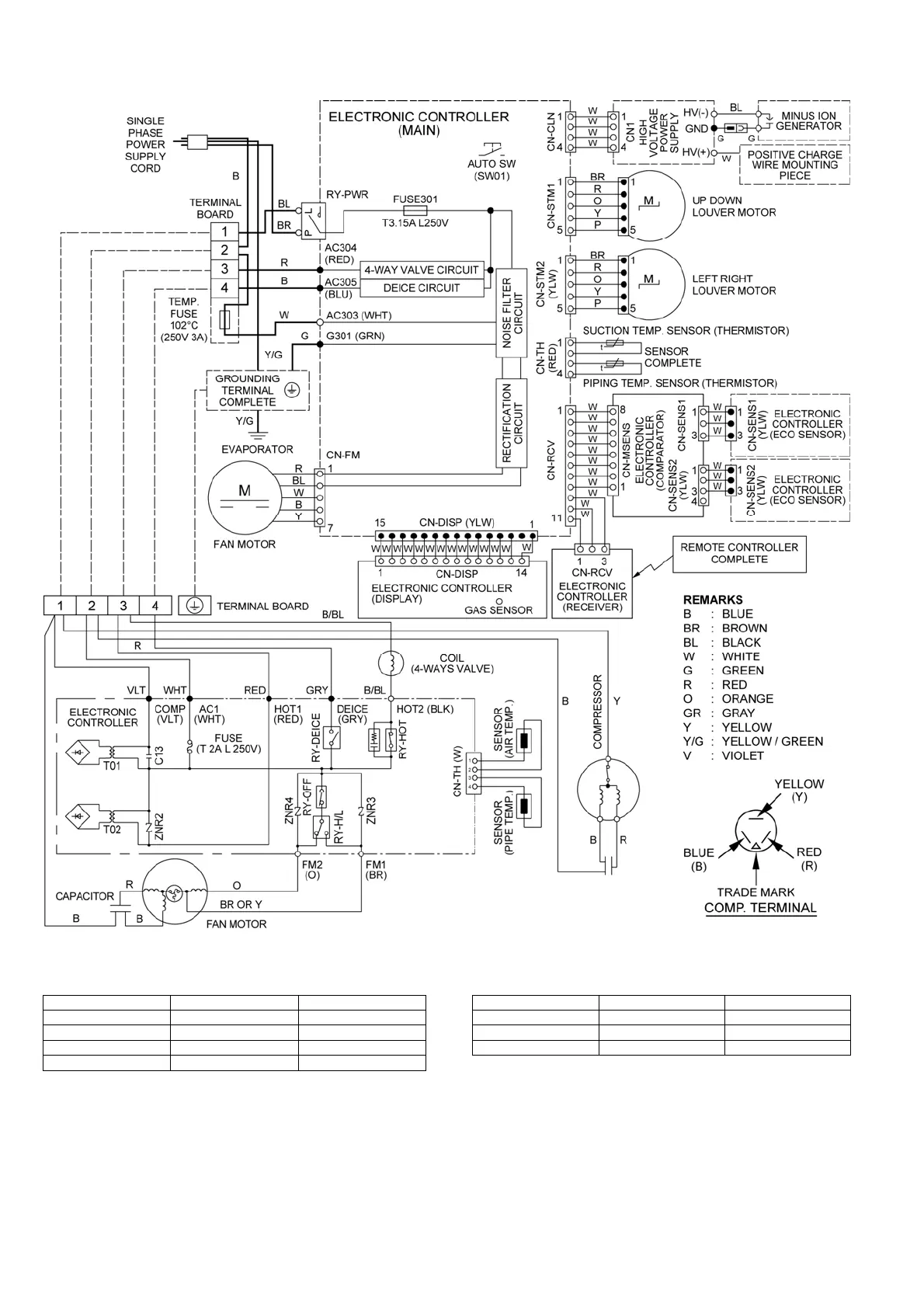

8.3 CS-A18MKD CU-A18MKD CS-A24MKD CU-A24MKD
Resistance of Outdoor Fan Motor Windings
Resistance of Compressor Windings
MODEL CU-A18MKD CU-A24MKD MODEL CU-A18MKD CU-A24MKD
CONNECTION CWA951353J CWA951353J CONNECTION 2JS318D3AA04 2JS438D3CC04
BLUE-YELLOW 74.60Ω 74.60Ω C-R 1.618Ω 1.121Ω
YELLOW-ORANGE 122.20Ω 122.20Ω C-S 3.718Ω 2.535Ω
YELLOW-RED 83.40Ω 83.40Ω Note: Resistance at 20°C of ambient temperature.
Note: Resistance at 20°C of ambient temperature.
