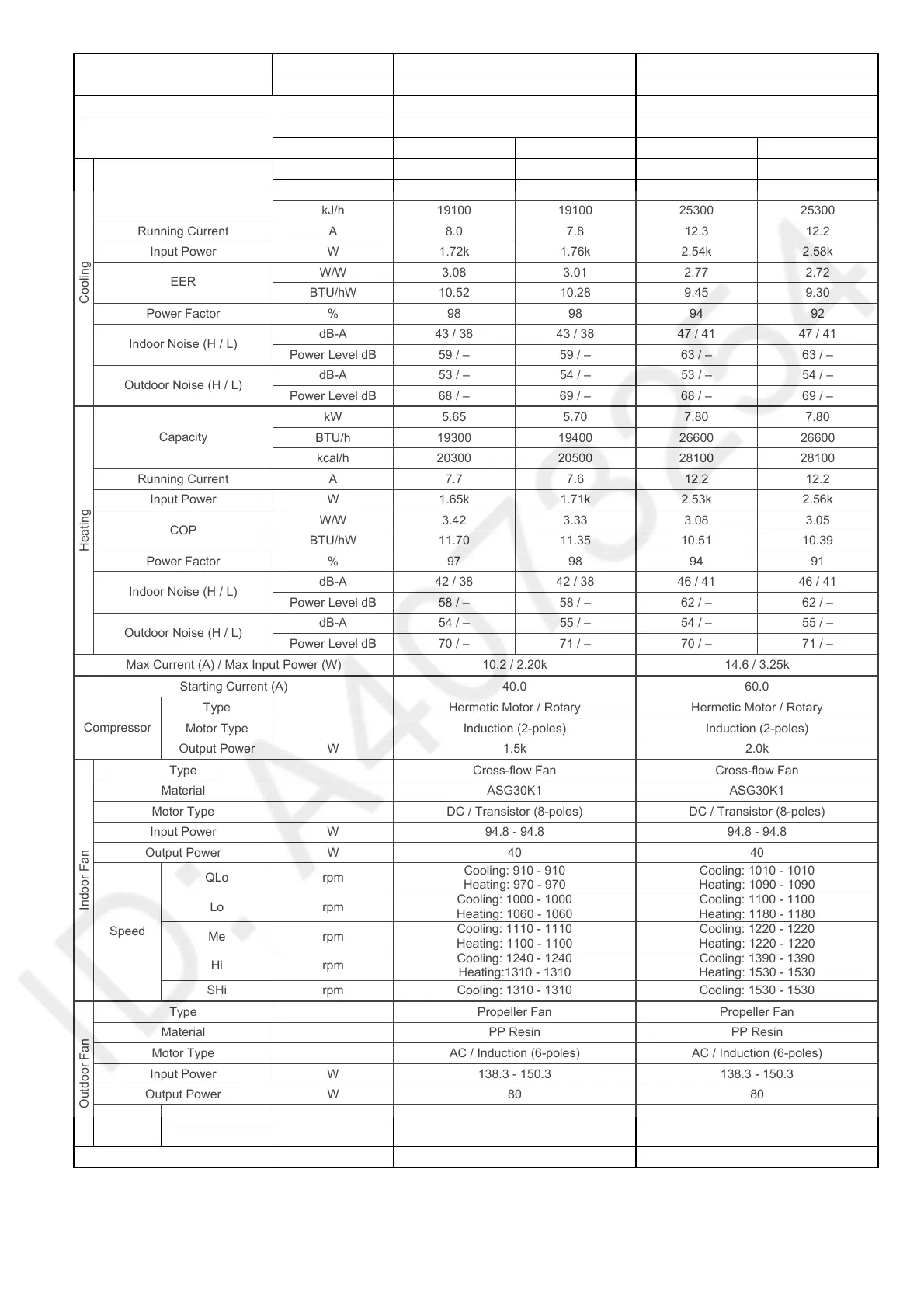

Panasonic CS-A9PKD Service Manual

7
Indoor CS-A18PKD CS-A24PKD
Model
Outdoor CU-A18PKD CU-A24PKD
Performance Test Condition NEW JIS NEW JIS
Phase, Hz Single, 50 Single, 50
Power Supply
V 220 230 220 230
kW 5.30 5.30 7.03 7.03
BTU/h 18100 18100 24000 24000
Capacity
kJ/h 19100 19100 25300 25300
Running Current A 8.0 7.8 12.3 12.2
Input Power W 1.72k 1.76k 2.54k 2.58k
W/W 3.08 3.01 2.77 2.72
EER
BTU/hW 10.52 10.28 9.45 9.30
Power Factor % 98 98 94 92
dB-A 43 / 38 43 / 38 47 / 41 47 / 41
Indoor Noise (H / L)
Power Level dB 59 / – 59 / – 63 / – 63 / –
dB-A 53 / – 54 / – 53 / – 54 / –
Cooling
Outdoor Noise (H / L)
Power Level dB 68 / – 69 / – 68 / – 69 / –
kW 5.65 5.70 7.80 7.80
BTU/h 19300 19400 26600 26600
Capacity
kcal/h 20300 20500 28100 28100
Running Current A 7.7 7.6 12.2 12.2
Input Power W 1.65k 1.71k 2.53k 2.56k
W/W 3.42 3.33 3.08 3.05
COP
BTU/hW 11.70 11.35 10.51 10.39
Power Factor % 97 98 94 91
dB-A 42 / 38 42 / 38 46 / 41 46 / 41
Indoor Noise (H / L)
Power Level dB 58 / – 58 / – 62 / – 62 / –
dB-A 54 / – 55 / – 54 / – 55 / –
Heating
Outdoor Noise (H / L)
Power Level dB 70 / – 71 / – 70 / – 71 / –
Max Current (A) / Max Input Power (W) 10.2 / 2.20k 14.6 / 3.25k
Starting Current (A) 40.0 60.0
Type Hermetic Motor / Rotary Hermetic Motor / Rotary
Motor Type Induction (2-poles) Induction (2-poles)
Compressor
Output Power W 1.5k 2.0k
Type Cross-flow Fan Cross-flow Fan
Material ASG30K1 ASG30K1
Motor Type DC / Transistor (8-poles) DC / Transistor (8-poles)
Input Power W 94.8 - 94.8 94.8 - 94.8
Output Power W 40 40
QLo rpm
Cooling: 910 - 910
Heating: 970 - 970
Cooling: 1010 - 1010
Heating: 1090 - 1090
Lo rpm
Cooling: 1000 - 1000
Heating: 1060 - 1060
Cooling: 1100 - 1100
Heating: 1180 - 1180
Me rpm
Cooling: 1110 - 1110
Heating: 1100 - 1100
Cooling: 1220 - 1220
Heating: 1220 - 1220
Hi rpm
Cooling: 1240 - 1240
Heating:1310 - 1310
Cooling: 1390 - 1390
Heating: 1530 - 1530
Indoor Fan
Speed
SHi rpm Cooling: 1310 - 1310 Cooling: 1530 - 1530
Type Propeller Fan Propeller Fan
Material PP Resin PP Resin
Motor Type AC / Induction (6-poles) AC / Induction (6-poles)
Input Power W 138.3 - 150.3 138.3 - 150.3
Output Power W 80 80
Lo rpm 450 - 490 450 - 490
Outdoor Fan
Speed
Hi rpm 815 - 830 815 - 830
Moisture Removal L/h (Pt/h) 2.9 (6.1) 4.0 (8.5)
