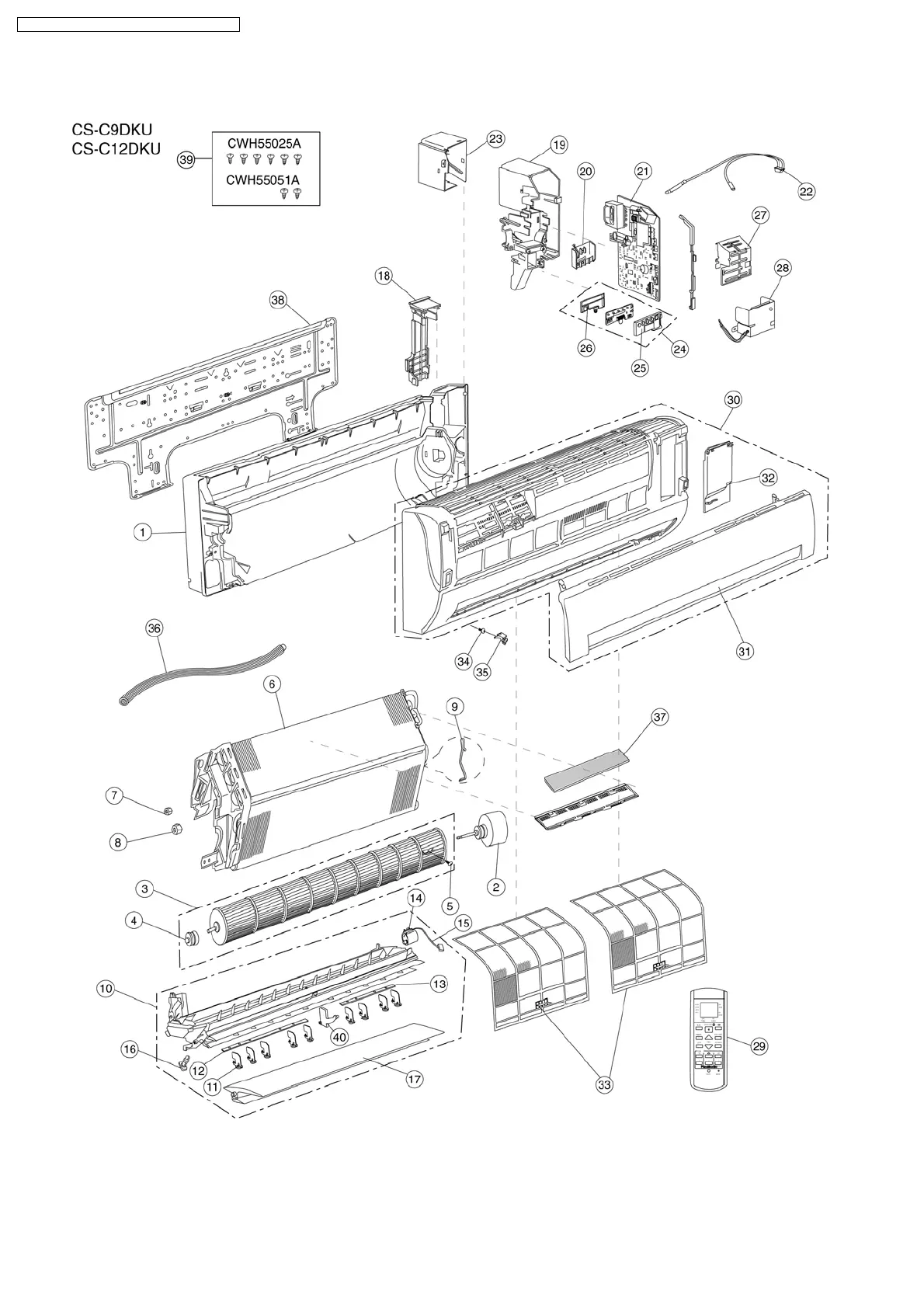

15 Exploded View (Indoor Unit)
Note:
The above exploded view is for the purpose of parts disassembly and replacement.
The non-numbered parts are not kept as standard service parts.
64
CS-C9DKU CU-C9DKU / CS-C12DKU CU-C12DKU
