Remote Control Setting Temperature (°C)
T1 T2 T3
16 ~ 18 +10 +8 -5
19 ~ 22 +8 +7 -7
23 ~ 26 +7 +6 -7
27 ~ 30 +6 +5 -8
There is a temperature shifting on T1, T2, and T3 if the operation mode judged is changed from
Cooling/Soft Dry to Heating or vice verse.
Operation Mode change from Temperature shifts (°C)
Cooling/Soft Dry Heating
-2
Heating Cooling/Soft Dry
+2

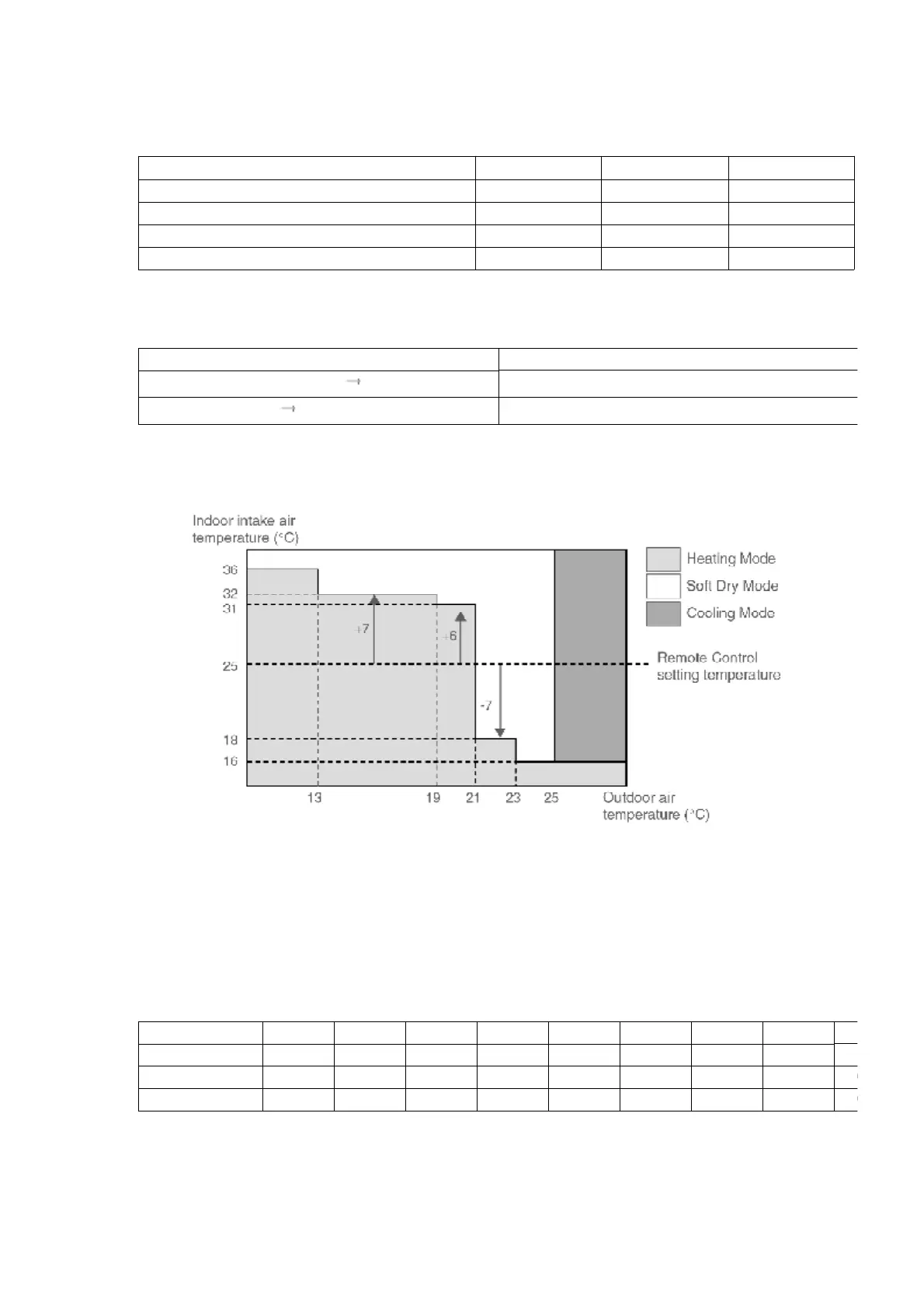

The operation mode chart for this example is as shown in below figure and the operation mode
to be performed will depend on indoor intake air temperature and outdoor air temperature at the
time when the judgment is made.
8.1.7. Indoor Fan Motor Operation
A. Basic Rotation Speed (rpm)
- Required rotation speed for fan is set to respond to the remote
control setting (10 rpm unit)
[Cooling, Dry, Fan]
Remote Control — O O O O O — —
Tab (rpm) SHI Hi Me+ Me Me- Lo Lo- SLo
E18CK 1530 1440 1360 1290 1220 1150 850 760
E21CK 1610 1520 1420 1330 1240 1150 890 800
[Heating]
