Panasonic CS-E21CKR User Manual

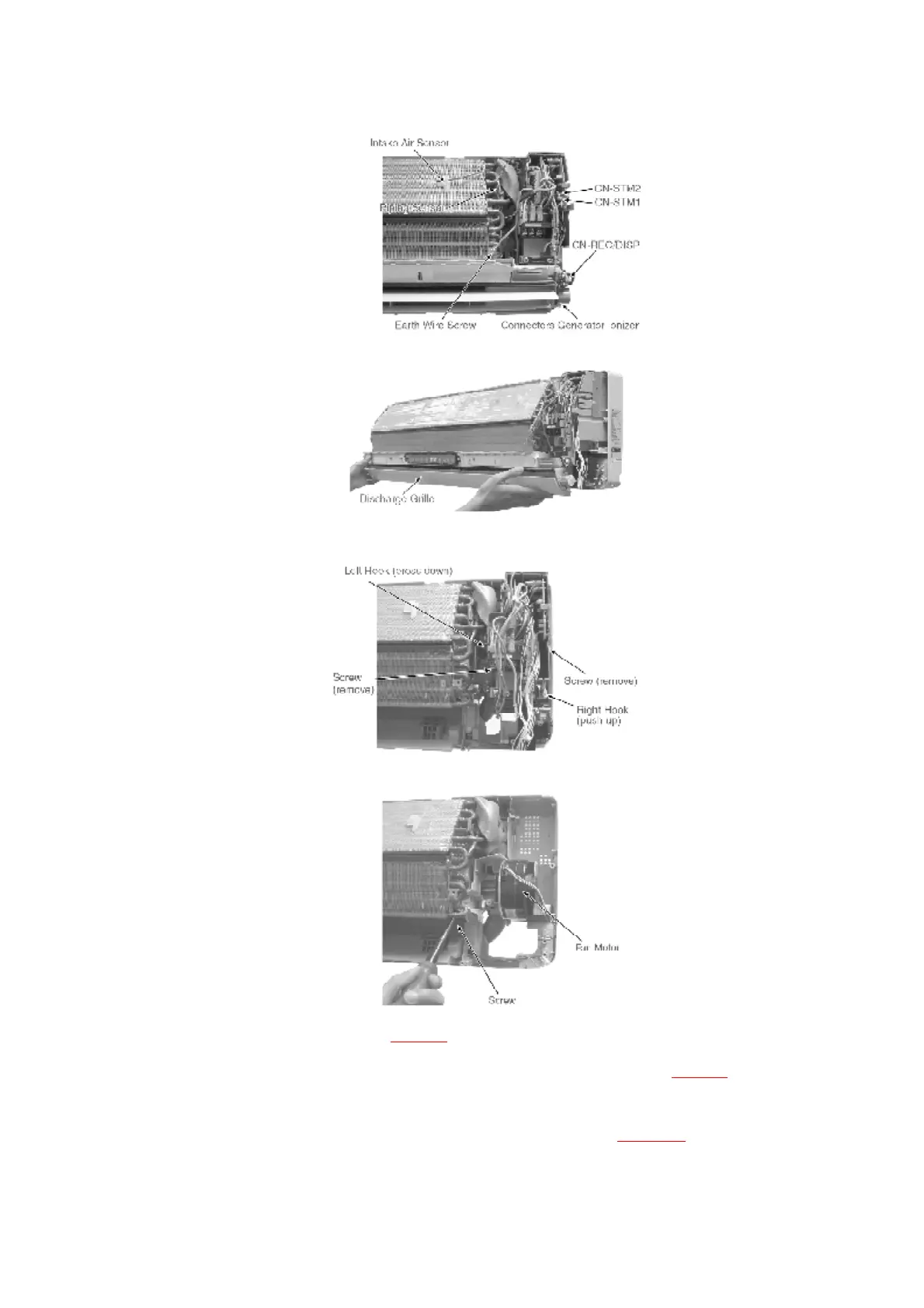

Fig. 6
Fig. 7
Fig. 8
6. Remove the Bearing. (Fig. 9)
7. Remove the screws at the left of the Evaporator. (Fig. 9)
8. Push up the Evaporator and pull out the Cross Flow Fan from
shaft. By then, Fan Motor can be taken out. (Fig. 10).

Panasonic CS-E21CKR Specifications

General

Brand	Panasonic
Model	CS-E21CKR
Category	Air Conditioner
Language	English
