76

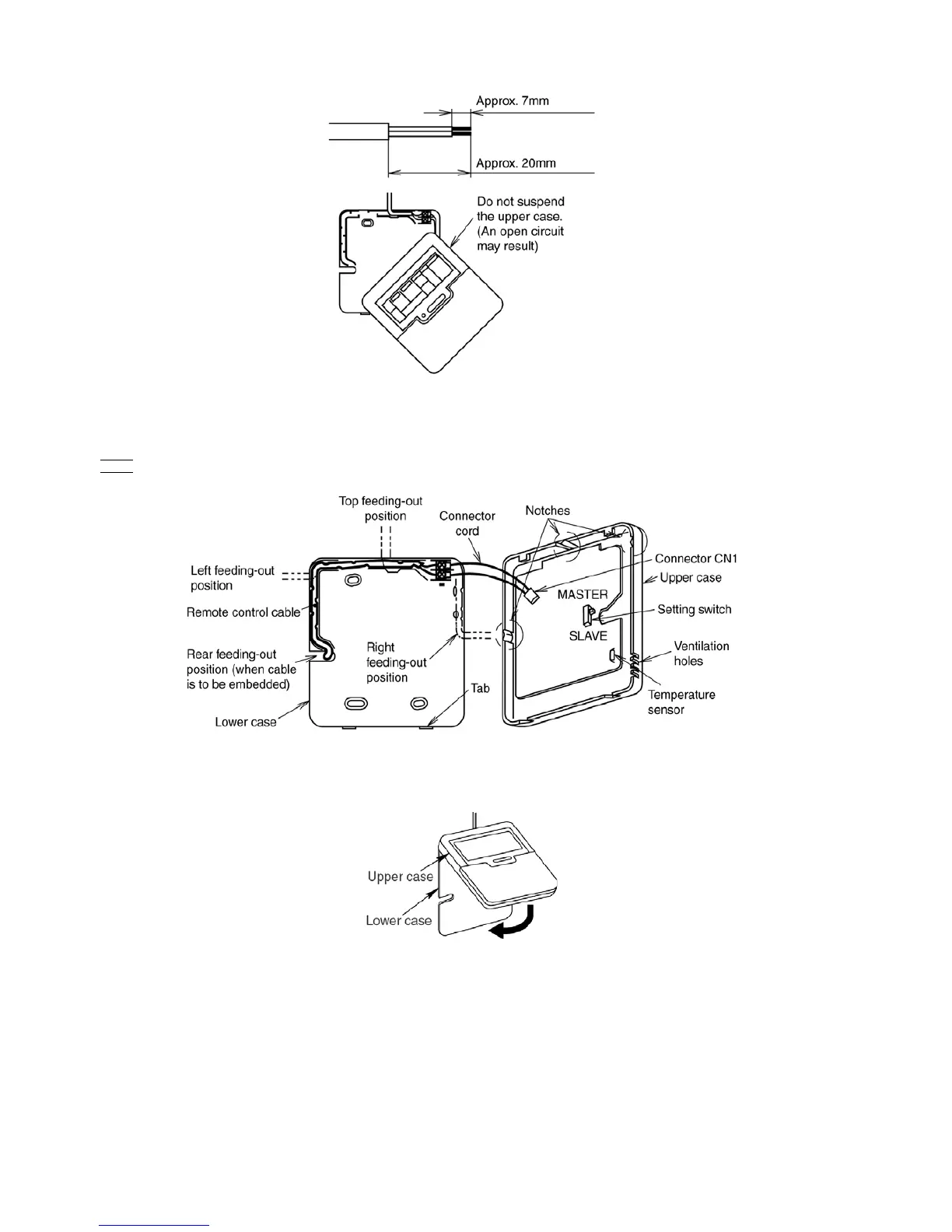

• Strip the end of the remote control cable which is to be connected to the remote controller. (Refer to the illustration below)
• Route the remote control cable inside the lower case in accordance with the intended feeding- out direction. (Refer to the
illustration below.)
Securely connect connector CN1. (If it is not connected the remote controller will not operate.)
• If controlling using two remote controllers, refer to “Control using two remote controllers” in “4 Settings”.
• Secure the upper case to the lower case.
(Hook the upper tab of the upper case into the lower case, and then push the upper case until it snaps shut onto the lower case
tab, while being careful not to clamp the remote control cable and the connector cord.)
NOTE After connecting the connector, do not suspend the upper case by its own weight, otherwise the connector cord may break.
