Panasonic CS-F50DTE5 Service Manual

78

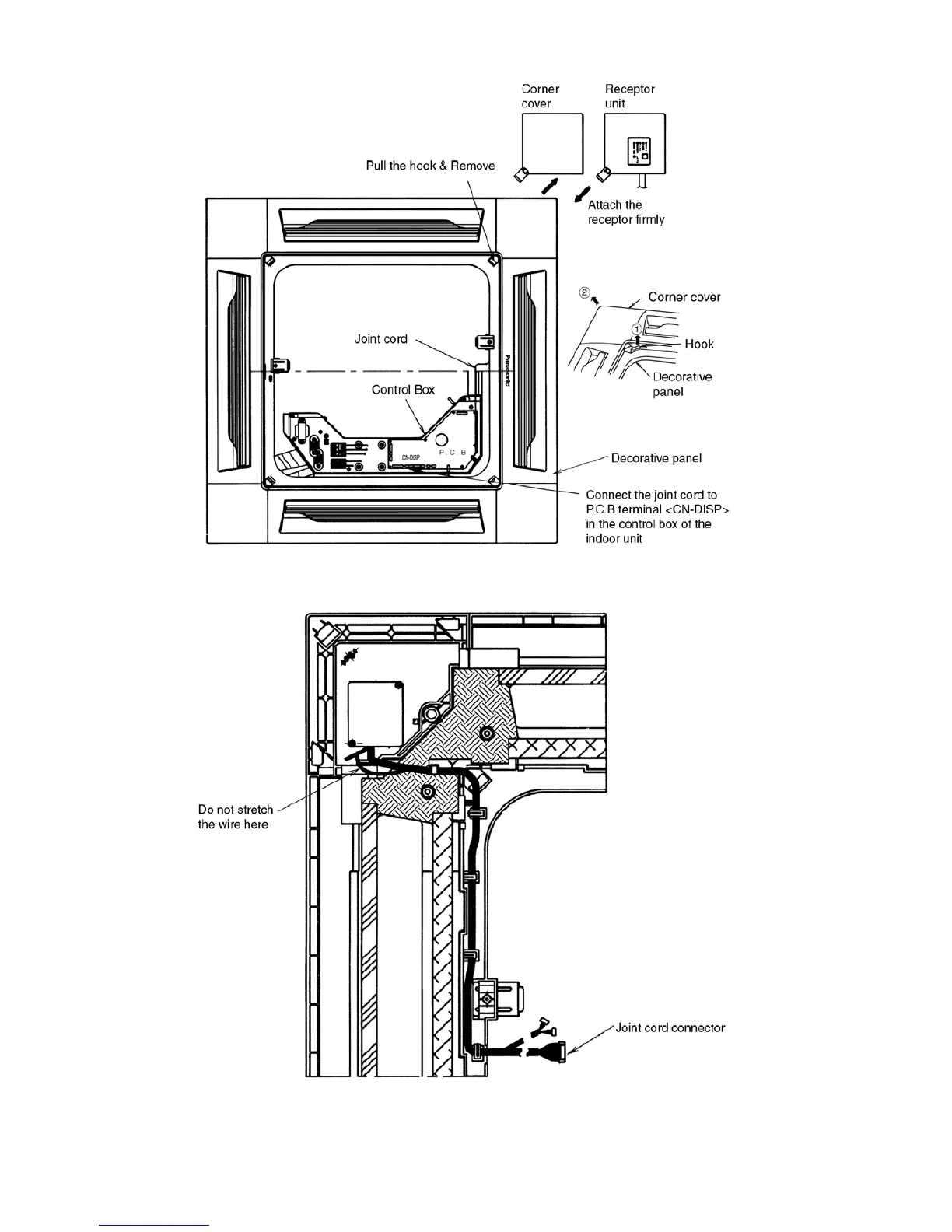

1. Route the joint cord for wiring as shown in the figure (figure of the back of decorative panel) below.
Pass the cord through the hook of the decorative panel, taking care that the cord does not run on the heat insulator, etc.
2. Remove the control box cover by removing the two fixing screws and connect the joint cord to P.C.B terminal <CN-DISP> in
the control box.

Panasonic CS-F50DTE5 Specifications

General

Indoor unit type	Ceiling
Indoor unit weight	47000 g
Indoor units quantity	1
Indoor unit dimensions (WxDxH)	1600 x 700 x 250 mm
Indoor unit noise level (high speed)	50 dB
Outdoor unit weight	105000 g
Outdoor unit noise level	56 dB
Outdoor unit dimensions (WxDxH)	900 x 320 x 1340 mm
Hose length (max)	50 m
Inverter technology	Yes
Refrigerating medium	R410A
Cooling capacity (max)	47700 BTU/h
Heating capacity (max)	54600 BTU/h
Air conditioner functions	Cooling, Heating
Cooling capacity in watts (max)	14000 W
Heating capacity in watts (max)	16000 W
Cooling energy efficiency (EER, W/W)	2.91
Heating energy efficiency (COP, W/W)	3.41
