Panasonic CS-F50DTE5 Service Manual

79
Receptor unit (for ceiling type) assembly procedure
1. Route for wiring the cord as shown in the figure to the right.
2. Remove the control box cover by removing the two fixing screws and connect the joint cord to P.C.B terminal <CN-DISP> in
the control box.

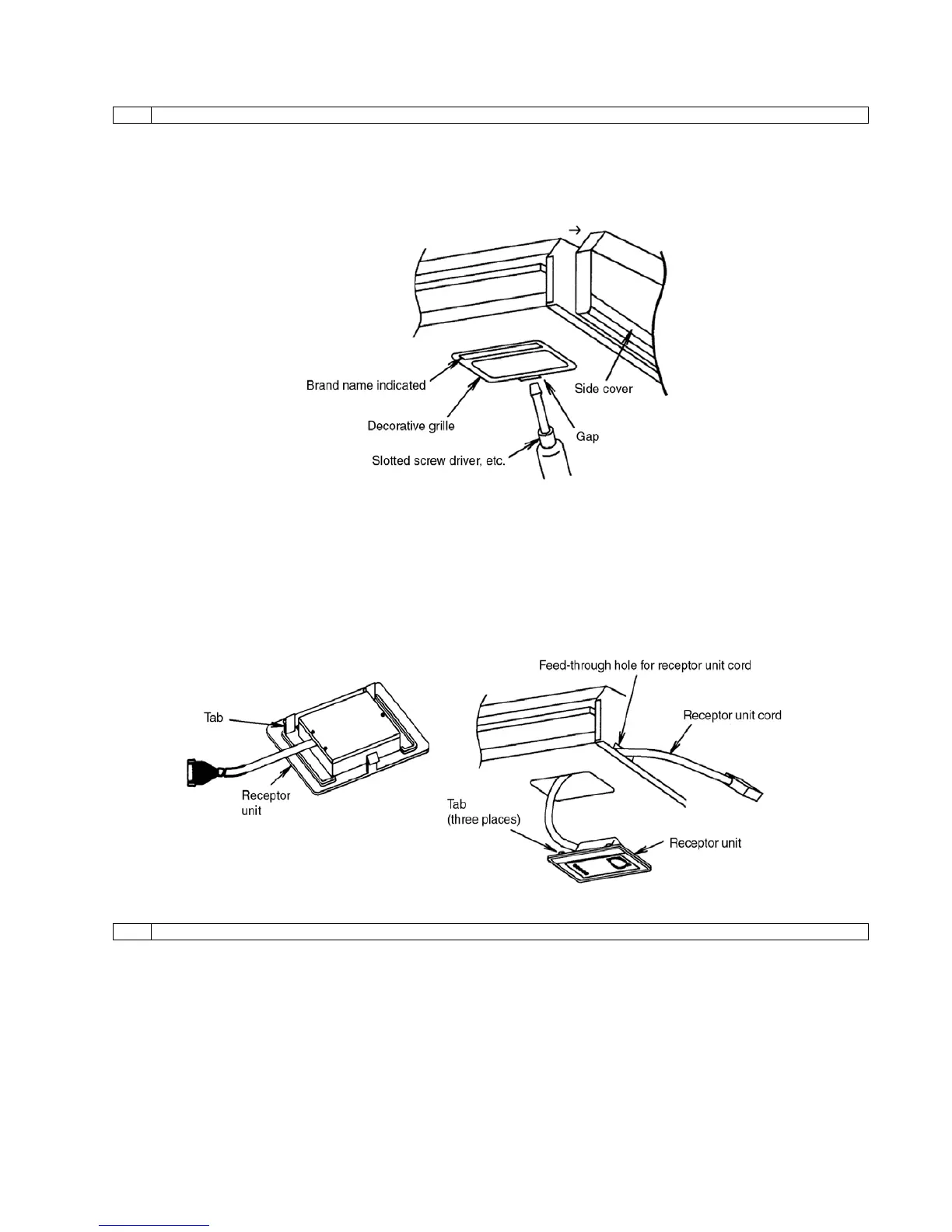

1 Attach the receptor unit onto the indoor main unit as shown in the figure below.
1. Remove the air-intake grille and the side cover.
To remove the side cover, remove the fixing screw each on the left and the right and pull the side cover towards you.
(Refer to the installation Manual supplied with the indoor main unit.)
2. Remove the Decorative grille (component on which the brand name is shown) to the right on the air-blow opening. (Fixed with three tabs.)
(There is a gap at the rear center of the decorative grille. Insert the tip of a slotted screwdriver, etc., 2 to 3mm into the gap and pry of the
decorative grille to remove.)
3. Draw out the cord of the receptor unit through the feed-through hole toward the side plate and attach the receptor unit onto the main unit.
Hook the three tabs onto the receptor unit to attach the receptor unit on the main unit. (Press in the receptor unit until a click sound is heard.)
2 Route the joint cord for wiring and connect it to P.C.B terminal <CN-DISP> in the control box of the indoor unit.

Panasonic CS-F50DTE5 Specifications

General

Indoor unit type	Ceiling
Indoor unit weight	47000 g
Indoor units quantity	1
Indoor unit dimensions (WxDxH)	1600 x 700 x 250 mm
Indoor unit noise level (high speed)	50 dB
Outdoor unit weight	105000 g
Outdoor unit noise level	56 dB
Outdoor unit dimensions (WxDxH)	900 x 320 x 1340 mm
Hose length (max)	50 m
Inverter technology	Yes
Refrigerating medium	R410A
Cooling capacity (max)	47700 BTU/h
Heating capacity (max)	54600 BTU/h
Air conditioner functions	Cooling, Heating
Cooling capacity in watts (max)	14000 W
Heating capacity in watts (max)	16000 W
Cooling energy efficiency (EER, W/W)	2.91
Heating energy efficiency (COP, W/W)	3.41
