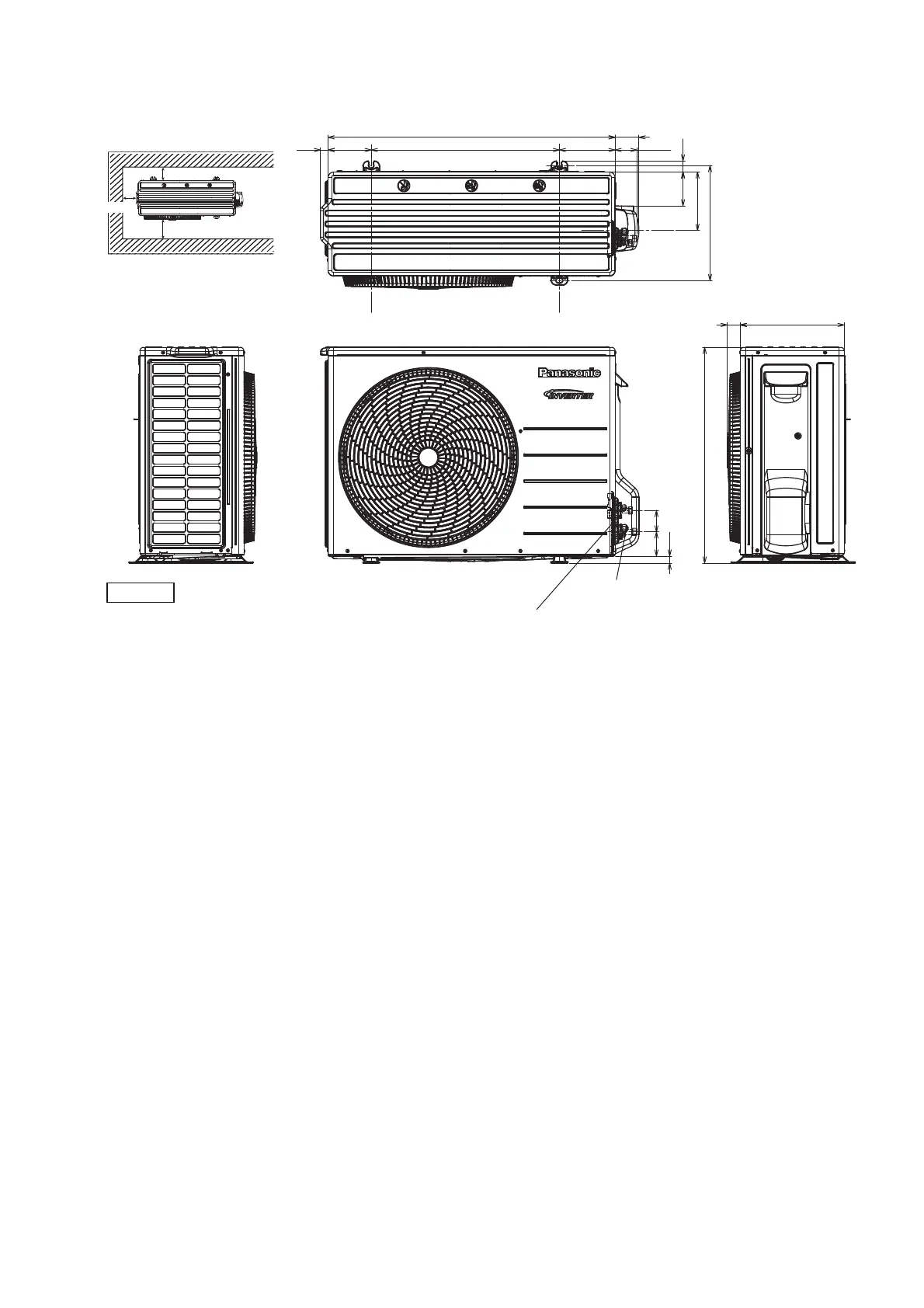

6.2 Outdoor Unit
<Top View>
<Front View><Side View>
<Side View>
Anchor Bolt Pitch
330 x 540
Space necessary for
installation
100mm
100mm
1000mm
Unit : mm
3-way valve at Gas side
(Low Pressure)
2-way valve at Liquid side
(High Pressure)
22 (124) (62.6)
330
622
167
97
69
(20)
62
32
540 160
824 68.7
46 299
