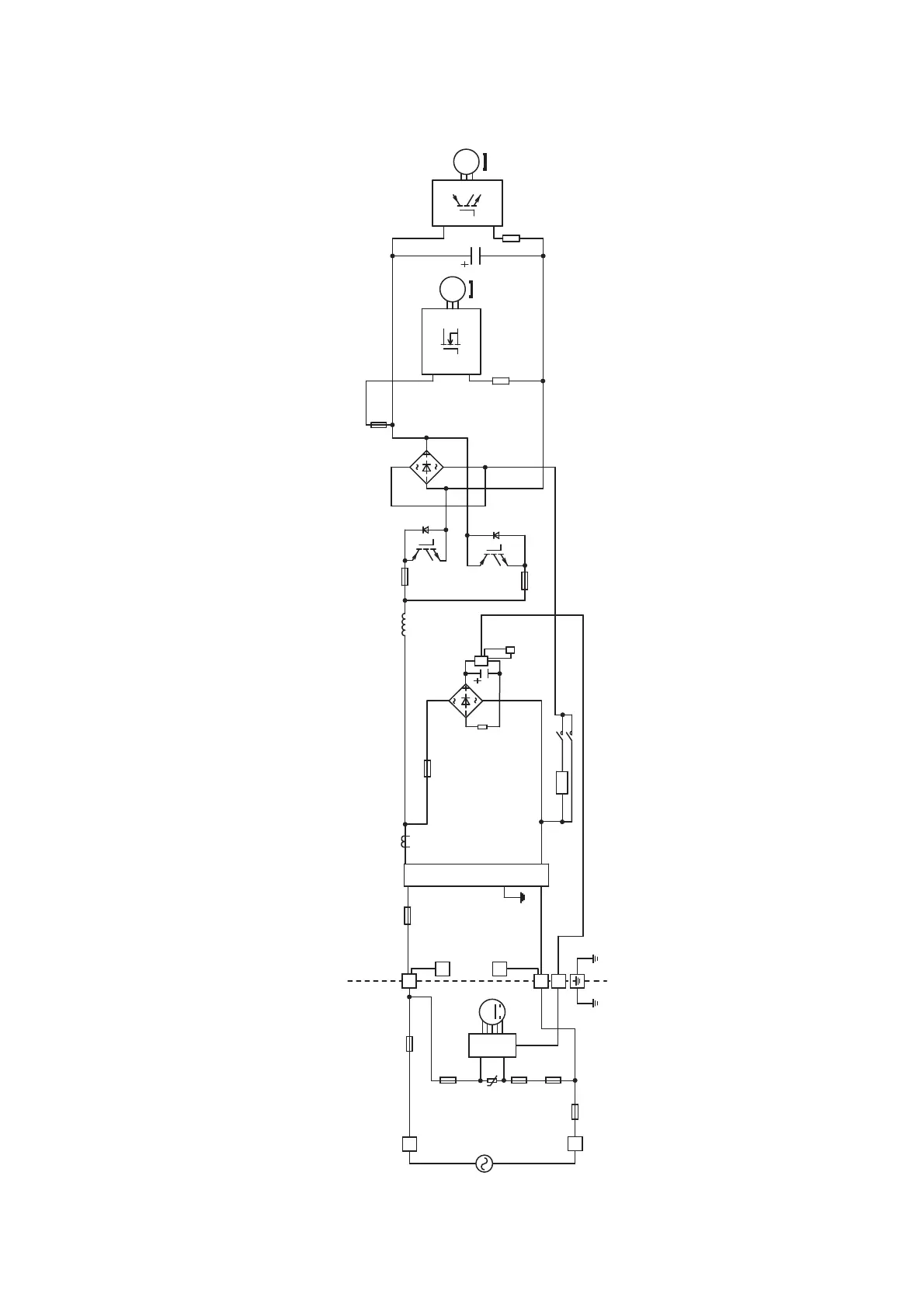

8. Block Diagram
8.1 Indoor Power Supply Connection
SINGLE
PHASE
POWER
SUPPLY
1Ø 230V
50Hz
SC
TEMPERATURE
FUSE
M
FUSE 501
FUSE 502
(INDOOR UNIT)
u
L
N
FUSE 301
TEMPERATURE
FUSE
(OUTDOOR UNIT)
1
L
N
3
2
MS
3~
MS
3~
FUSE1
PTC
NOISE FILTER
SEN1
REACTOR
NTC
TH1
RY-PWR
RY-AC
PTC2
IC19
FUSE3
FUSE5
FUSE8
FUSE6
SC
4-WAYS
VALVE
