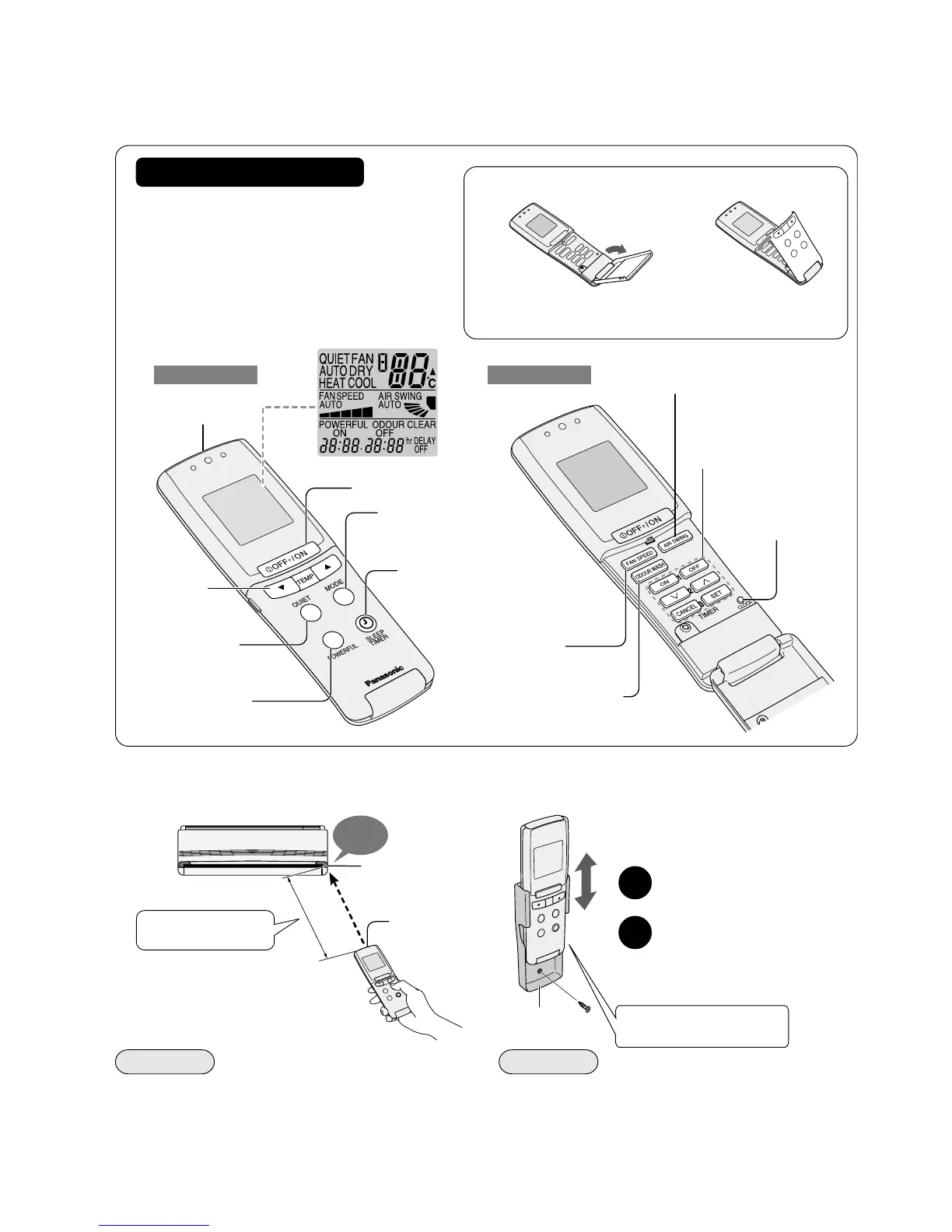

Names of Parts and Preparations
Remote control
How to open How to close
Softly open it.
(Do not force it open)
Close the lid until a click is heard.
(Lid not closed properly will
affect proper operations)
* Luminous button:
Luminous buttons make it easier to find and use
the remote controller even in the dark. The glow
comes from a naturally luminous material, so no
battery power is required.
When closed
Signal transmitter
*
ON / OFF button
*
Room
temperature
setting button
Quiet operation
button
(Page 14)
Powerful operation
button
(Page 14)
Operation mode
selection button
(Page 5)
When opened
Airflow direction button
(Page 12)
■ USING THE REMOTE CONTROL
(Ensure the remote control faces the indoor unit’s
signal receiver panel)
Signal receiver
panel
Signal
transmitter
Approximately 8 m
Ensure that there is
no obstruction.
REQUEST
■ REMOTE CONTROL HOLDER
(ACCESSORY)
Mount on to the wall for easy
stowage and retrieval of remote
control.
● If remote control is operated in its stowed manner, there
may be a loss of signal being received by the signal
receiver. Only operate the remote control after being
retrieved from the holder and aimed at the signal
receiver panel in the indoor unit.
● Stow the holder away from any heat source (direct
sunlight, stove, etc.).
REQUEST
Ensure remote control and its
placard are capped.
1
Use the supplied screws to
mount the holder (2 fastening
points)
2
To stow remote control, insert
it vertically from the top of the
holder.
To remove remote control, pull it
vertically from the top of the holder.
Holder
Operation display
For illustration
purposes, all
displays are shown.
Sleep mode
timer button
(Page 15)
Timer set button
(Page 15)
Clock button
(Page 9)
Fan speed
selection button
(Page 12)
Odour wash button
(Page 16)
● In rooms that are equipped with electronic switch-
on lightings (such as the inverter type), there may
be a signal loss. In such cases, please consult
your dealer.
“BEEP”
