Panasonic CS-PC30EKF

44

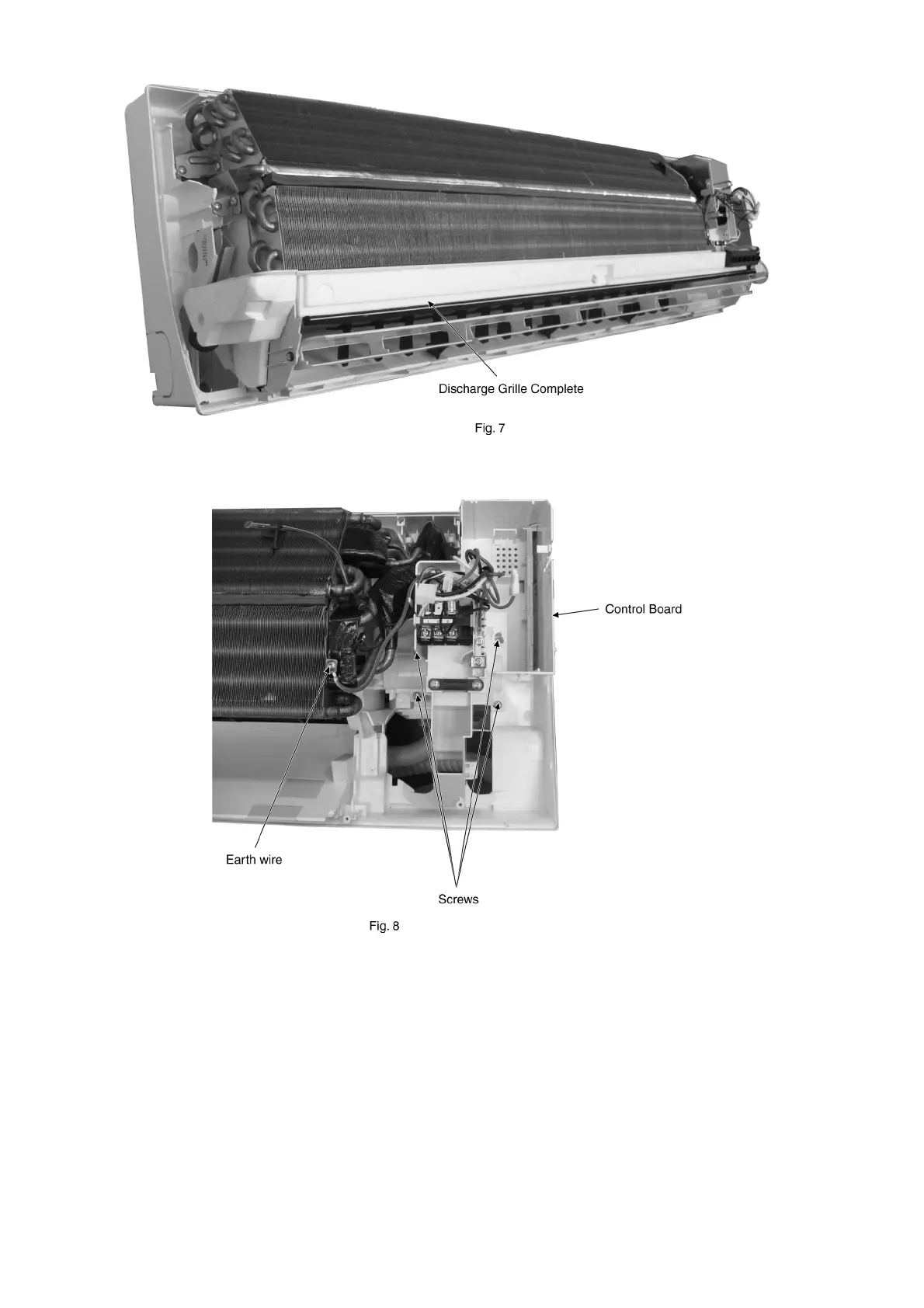

• Pull down the Discharge Grille Complete. (Fig. 7)
• Remove the earth wire from the evaporator. (Fig. 8)
• Remove 2 screws on the left and right side of the control board. (Fig. 8)
• Then pull out the control board from the unit. (Fig.8)
