Panasonic CS-PC30EKF

45

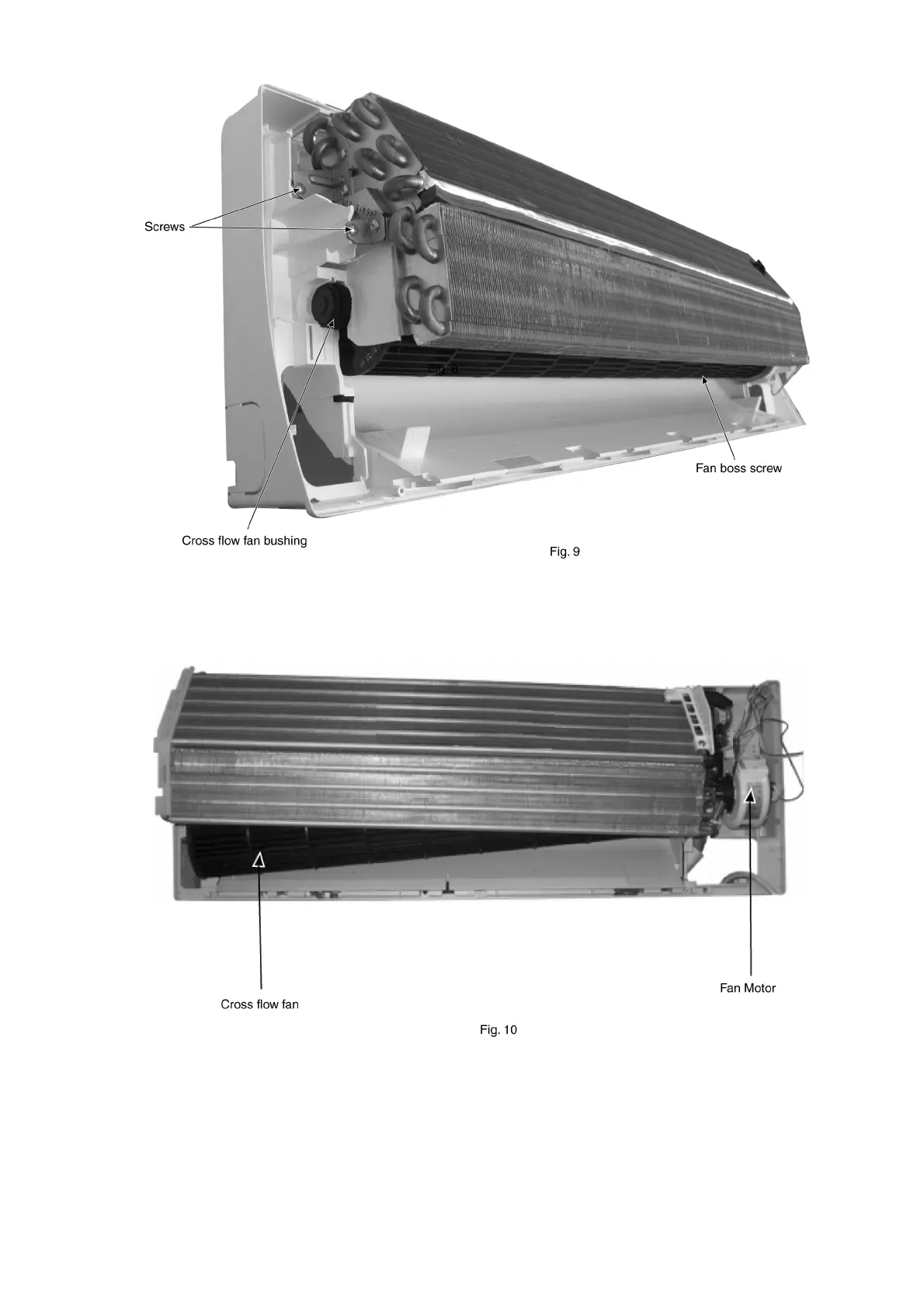

• Remove the cross flow fan bushing from the chassis. (Fig. 9)
• Remove the screws on the left side of evaporator. (Fig. 9)
• Loosen the fan boss screw at the cross flow fan. (Fig. 9)
• Push up the evaporator and remove cross flow fan by pulling both cross flow fan and fan motor. (Fig. 10)
