Panasonic CS-RE18SKUA

108
WARNING
High Voltage is generated in the electrical parts area by the capacitor. Ensure that the capacitor has discharged sufficiently before proceeding with
repair work. Failure to heed this caution may result in electric shocks.
18.2 CS-RE18SKUA CS-RE24SKUA
18.2.1 Indoor Electronic Controllers, Cross Flow Fan and Indoor Fan Motor Removal
Procedures

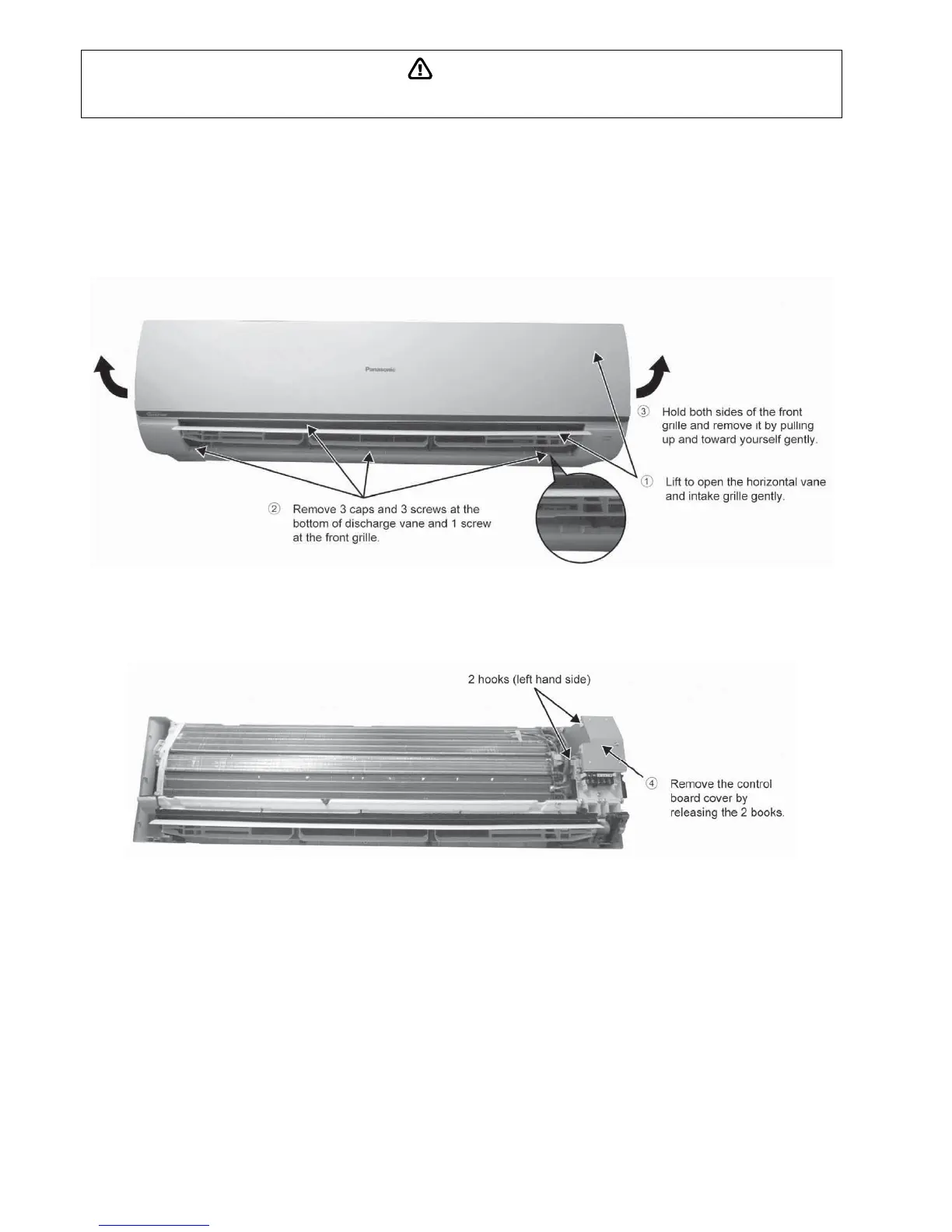

18.2.1.1 To Remove Front Grille
Figure 11
18.2.1.2 To Remove Electronic Controller
Figure 12
