Panasonic CS-RE18SKUA

44

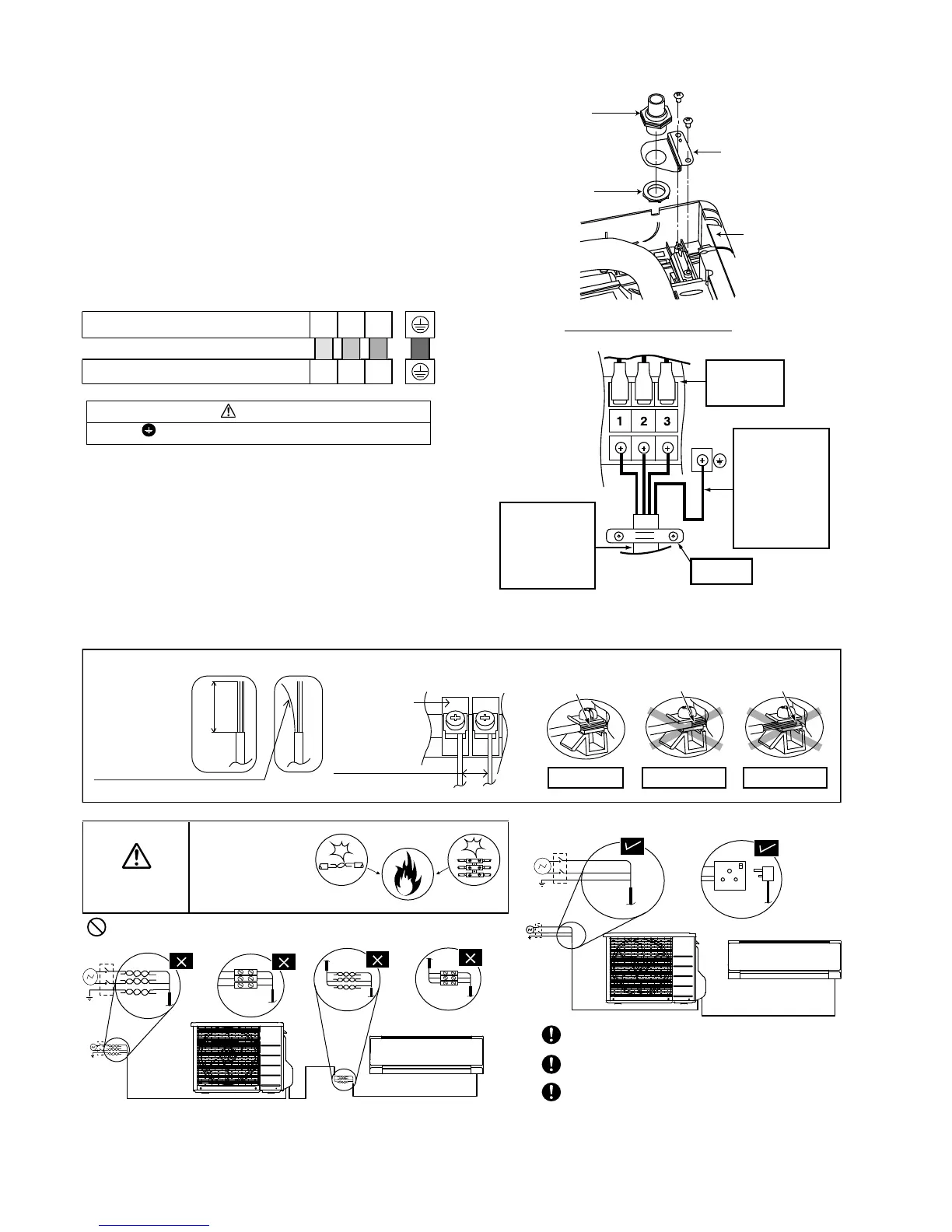

12.2.4 Connect the Cable to the Indoor Unit
1. The inside and outside connection cable can
be connected without removing the front grille.
2. Unscrew the conduit cover and fix the conduit
connector to conduit cover with lock nut, then
secure it against chassis.
3. Connecting wire between indoor unit and
outdoor unit should be UL listed or CSA
approved 4 conductor wires minimum AWG16
in accordance with local electric codes.
o Ensure the colour of wires of outdoor unit
and terminal number are the same as the
indoor's repectively.
Terminals on the indoor unit 1 2 3
Colour of wires (Connecting wire)
Terminals on the outdoor uni t 1 2 3
WARNING
This equipment must be properly earthed.
o Earth lead wire shall be Yellow/Green
(Y/G) in colour and shall be longer than
other lead wires as shown in the figure for
electrical safety in case of the slipping.
Chassis
Conduit
Connector
Conduit
Cover
Lock Nut
Rear Side of Indoor Unit
Holder
Indoor and
outdoor
connection
cable
Ter mi n al
Board
Earth wire
longer than
others
AC wires
for safety
reason
12.2.4.1 Wire Stripping, Connecting Requirement
Wire stripping
7/32” (5 mm)
or more
Conductor
over inserted
No loose strand
when inserted
Indoor/outdoor
connection
terminal board
10 ± 1 mm 13/32” ± 1/16”
Conductor
fully inserted
Conductor not
fully inserted
(gap between wires)
ACCEPT PROHIBITED PROHIBITED
WARNING
RISK OF FIRE
JOINING OF WIRES
MAY CAUSE
OVERHEATING
AND FIRE.
OR
OR
OR
Use complete wire without joining.
Use approved socket and plug with earth pin.
Wire connection in this area must follow to
national wiring rules.
Do not joint wires
