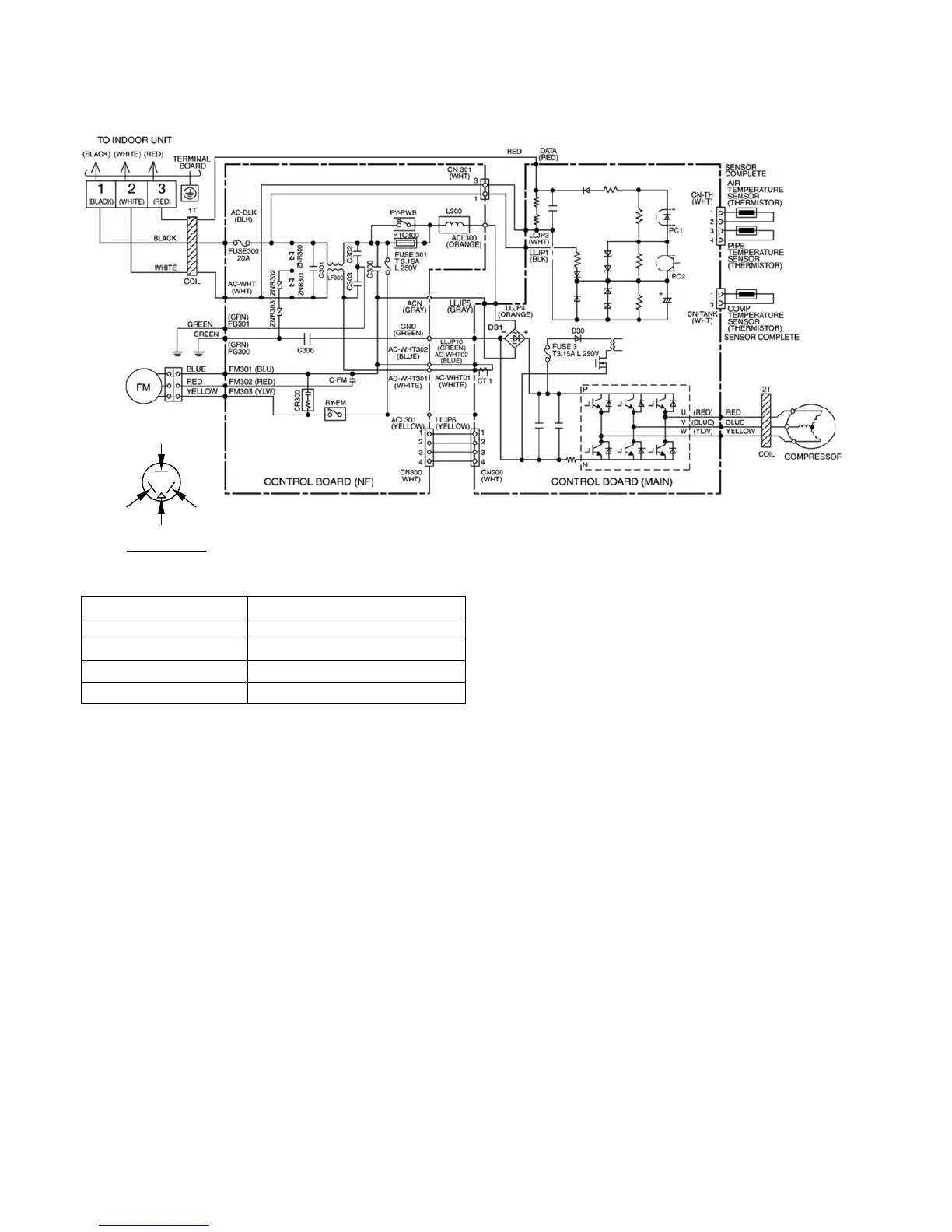

7.2 Outdoor Unit
7.2.1 CU-S9MKQ
RED (RED)
TRADE MARK
BLUE (BLU)
YELLOW (YLW)
COMP. TERMINAL
Resistance of Compressor Windings
MODEL CU-S9MKQ
CONNECTION 5RS092XCE21
U-V 1.152Ω
U-W 1.152Ω
V-W 1.152Ω
