10.2 Outdoor Unit

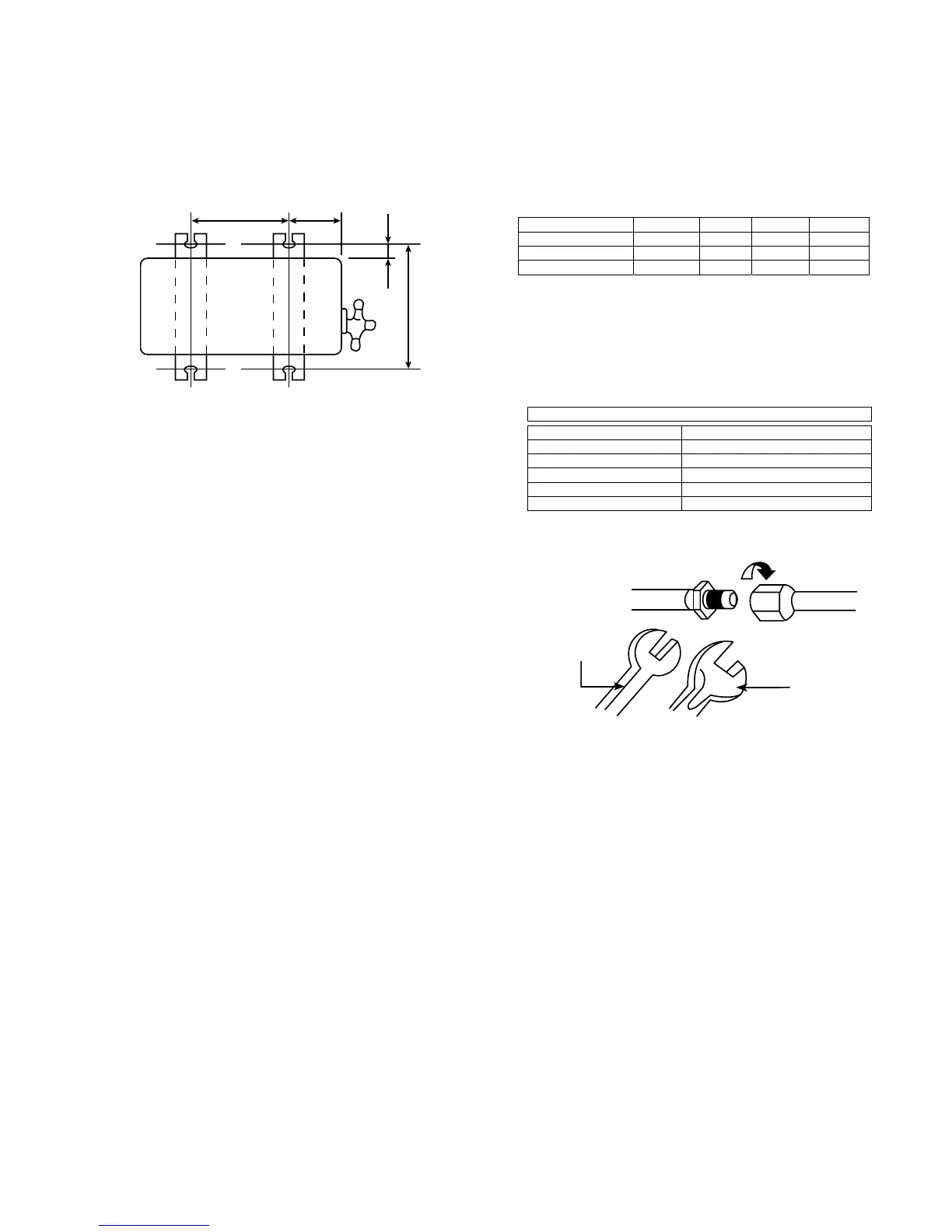

10.2.1 Install the Outdoor Unit
• After selecting the best location, start installation according to Indoor/Outdoor Unit Installation Diagram.
1 Fix the unit on concrete or rigid frame firmly and horizontally by bolt nut (ø10mm).
2 When installing at roof, please consider strong wind and earthquake.
Please fasten the installation stand firmly with bolt or nails.
A
C
D
Model A B C D
S9*** 474 mm 87 mm 18.5 mm 261 mm
S12*** 570 mm 105 mm 18.5 mm 320 mm
S18***, S24*** 613 mm 131 mm 16 mm 360.5 mm
10.2.2 Connect the piping
10.2.2.1 Connecting the piping to Indoor
Please make flare after inserting flare nut
(locate at joint portion of tube assembly) onto the
copper pipe. (In case of using long piping)
Connect the piping
• Align the center of piping and sufficiently tighten the
flare nut with fingers.
• Further tighten the flare nut with torque wrench in
specified torque as stated in the table.
10.2.2.2 Connecting the piping to Outdoor
Decide piping length and then cut by using pipe cutter.
Remove burrs from cut edge.
Make flare after inserting the flare nut (locate at valve)
onto the copper pipe.
Align center of piping to valves and then tighten with
torque wrench to the specified torque as stated in the
table.
Tor q u e
wrench
Spanner
or Wr ench
Do not overtighten, overtightening may cause gas leakage
Piping size Torque
6.35 mm (1/4”) [18 N•m (1.8 kgf.m)]
9.52 mm (3/8”) [42 N•m (4.3 kgf.m)]
12.7 mm (1/2”) [55 N•m (5.6 kgf.m)]
15.88 mm (5/8”) [65 N•m (6.6 kgf.m)]
19.05 mm (3/4”) [100 N•m (10.2 kgf.m)]
