11.1.7 Connect the Cable to the Indoor Unit
1 The inside and outside connection cable can be connected without removing the front grille.
2 Connection cable between indoor unit and outdoor unit shall be approved polychloroprene sheathed 4 x 1.5
mm
2
flexible cord, type designation 245 IEC 57 or heavier cord.
3 Bind all the indoor and outdoor connection cable with tape and route the connection cable via the
escapement.

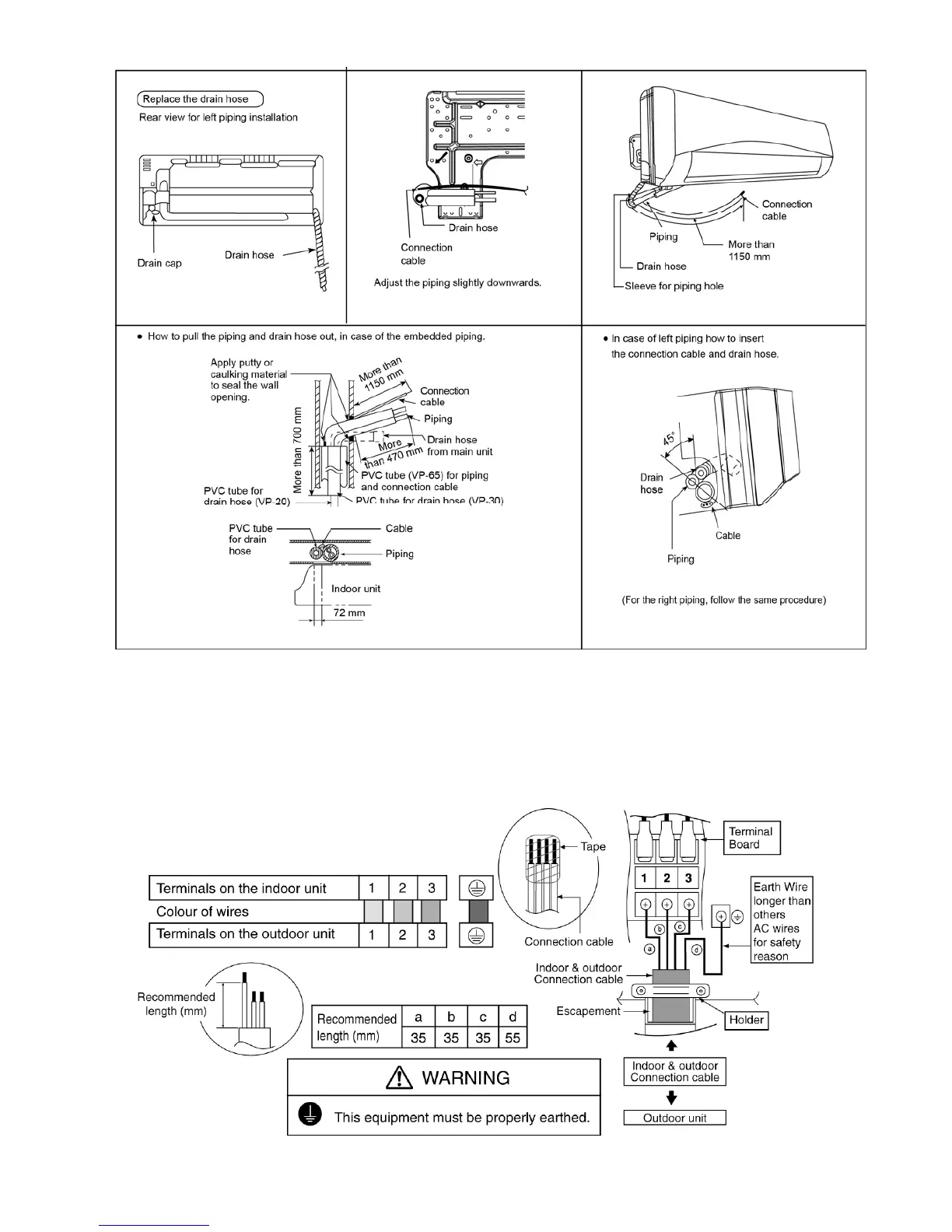

4 Remove the tapes and connect the connection cable between indoor unit and outdoor unit according to the
diagram below.
