Figure 5

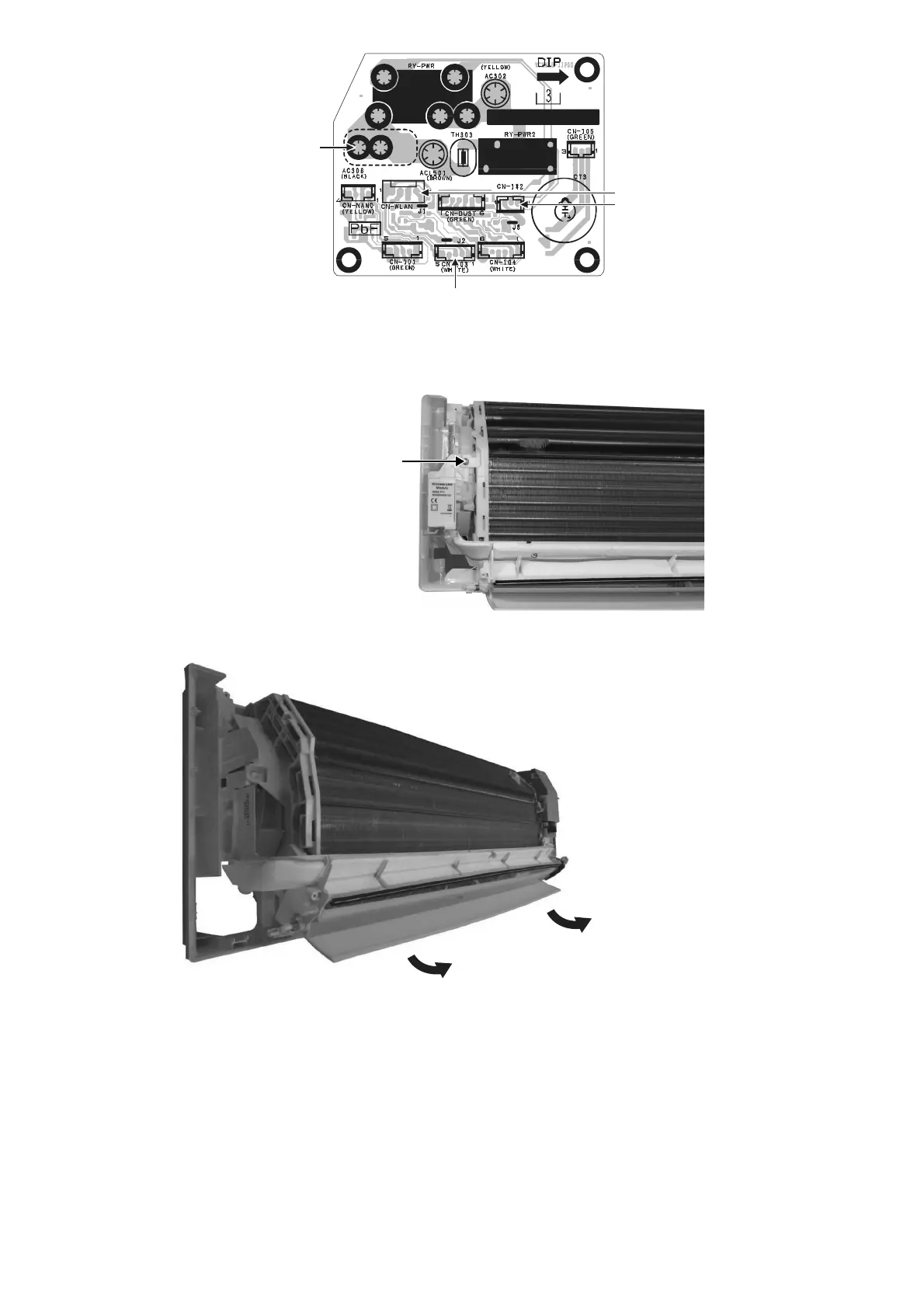

19.2.1.3 To Remove Discharge Grille
Figure 6
Figure 7
CN-WLAN
CN-102
AC306
CN-103
11. Remove the screw and
pull out the WIFI module.
13. Then pull the discharge grille
downward gently to dismantle it.
12. Pull out and remove the drain hose
from the dischargegrille.
To Next Page
