Panasonic CS-UE9RKE

100

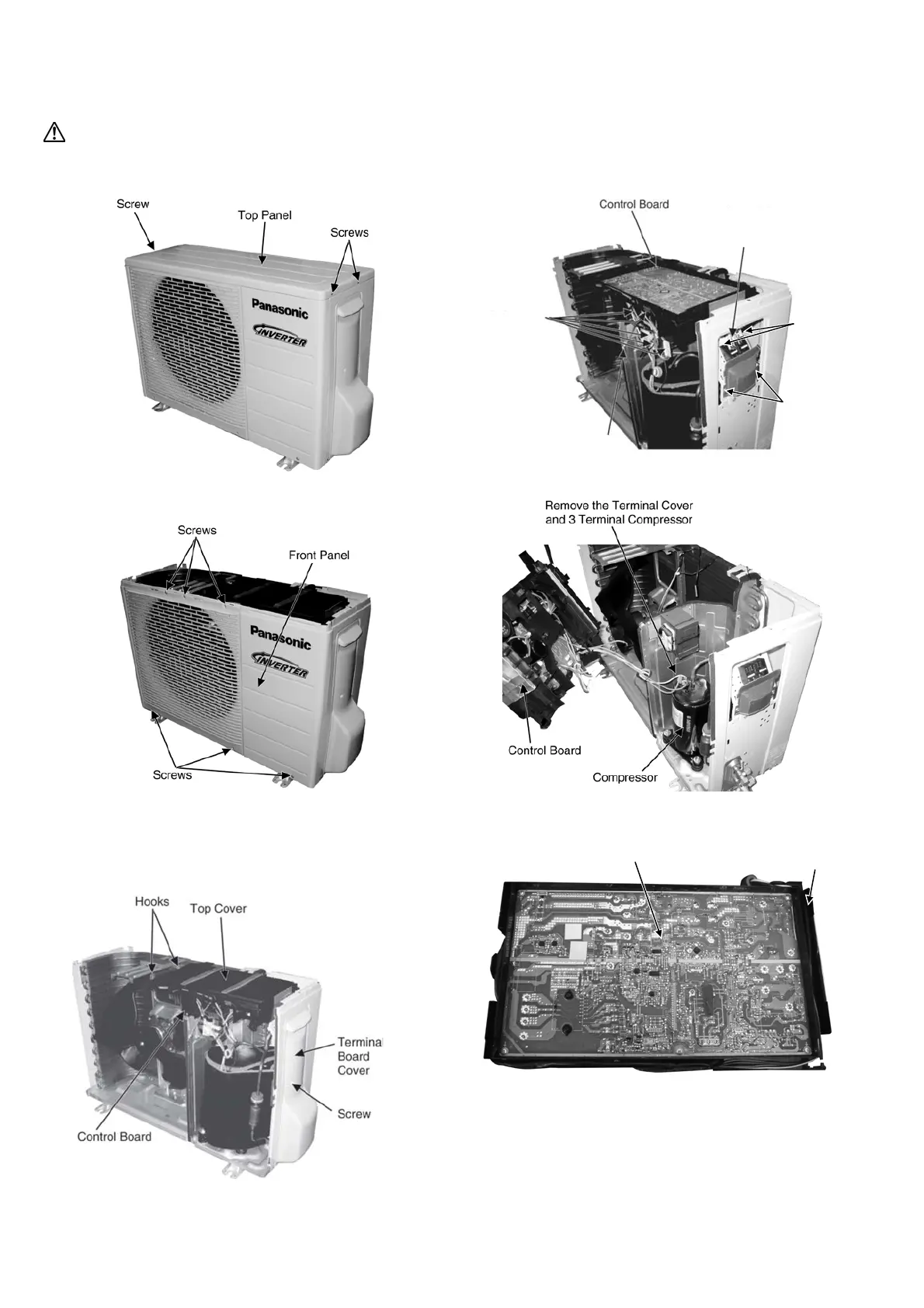

16.3 Outdoor Electronic Controller Removal Procedure
16.3.1 CU-PE9RKE CU-PE12RKE CU-UE9RKE CU-UE12RKE
Caution! When handling electronic controller, be careful of electrostatic discharge.
1. Remove the 3 screws of the Top Panel.
Fig. 1
2. Remove the 6 screws of the Front Panel.
Fig. 2
3. Remove the screw of the Terminal Board Cover.
4. Remove the Top Cover of the Control Board by 4
hooks.
Fig. 3
5. Remove the Control Board as follows:
Remove
2 Screws
Release 3
Terminal Connectors and
2 Earth Wire Screws
Remove 2
Control Board
Cover Screws
Release 6
Connectors and
2 Reactor
Connectors
Remove 1 Screw
Fig. 4
Fig. 5
Electronic Controller
Control Board
Fig. 6
