16. Disassembly and Assembly Instructions
High Voltage are generated in the electrical parts area by the capacitor. Ensure that the capacitor has discharged sufficiently before proceeding
with repair work. Failure to heed this caution may result in electric shocks.
16.1 Indoor Electronic Controllers, Cross Flow Fan and Indoor Fan Motor
Removal Procedures
16.1.1 CS-PE9RKE CS-PE12RKE CS-UE9RKE CS-UE12RKE

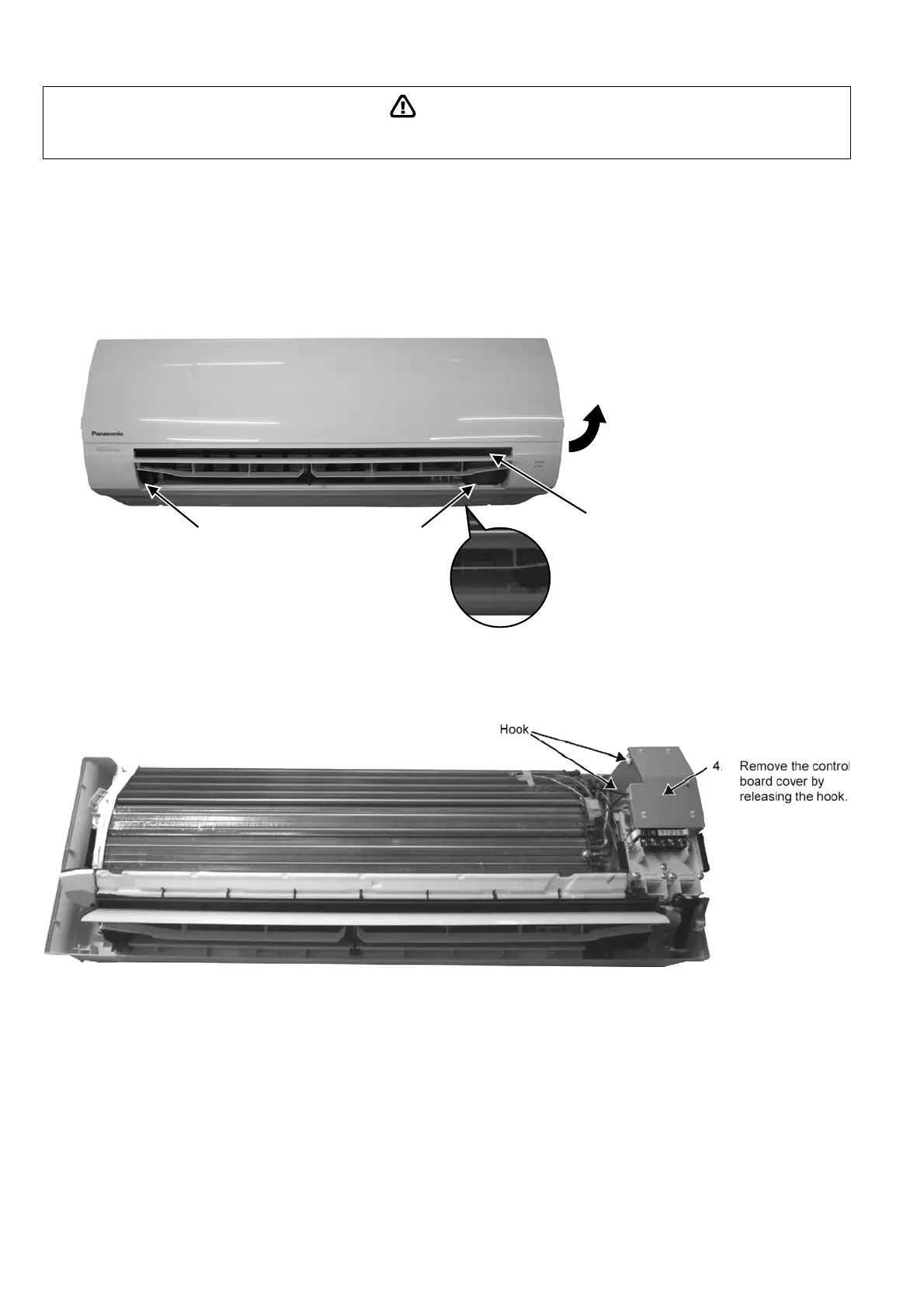

16.1.1.1 To remove front grille
2. Remove 2 caps and 2 screws at the
bottom of discharge vane.
3. Hold both sides of the front grille and
remove it by pulling up and toward
yourself gently.
1. Lift to open the horizontal vane
gently.
Figure 1
16.1.1.2 To remove horizontal vane
Figure 2
To Next Page
