12.4.1 Vertical Airflow
Operation Mode
Vane Angle (°)
1 2 3 4 5
Cooling
Auto
Usual (Ventilation) 10 ~ 40
Control with dew 10 ~ 40
Manual
Usual (Ventilation) 10 17.5 25 32.5 40
Control with dew 10 17.5 25 32.5 40
Dry
Auto
Usual 10 ~ 40
Control with dew 10 ~ 40
Manual
Usual 10 17.5 25 32.5 40
Control with dew 10 17.5 25 32.5 40
Heating Manual Usual 10 21.2 32.5 43.8 55
CS-PE9RKE CS-PE12RKE CS-UE9RKE CS-UE12RKE
Operation Mode
Vane Angle (°)
1 2 3 4 5
Cooling
Auto
Usual (Ventilation) 5 ~ 35
Control with dew 5 ~ 35
Manual
Usual (Ventilation) 5 12.5 20 27.5 35
Control with dew 5 12.5 20 27.5 35
Dry
Auto
Usual 5 ~ 35
Control with dew 5 ~ 35
Manual
Usual 5 12.5 20 27.5 35
Control with dew 5 12.5 20 27.5 35
Heating Manual Usual 5 17.5 30 42.5 55
CS-UE18RKE

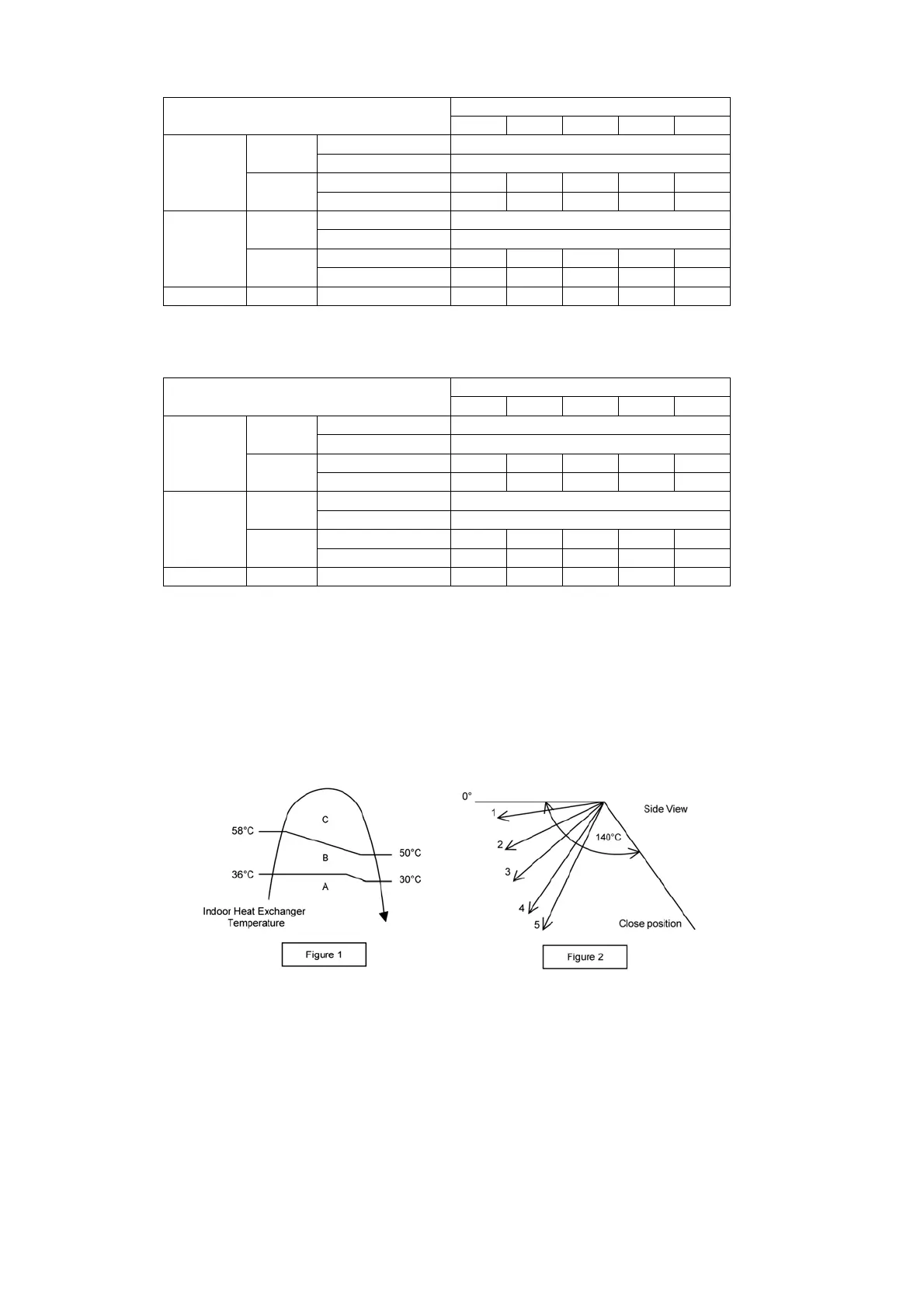

1 Automatic vertical airflow direction can be set using remote control; the vane swings up and down within the
angles as stated above. For heating mode operation, the angle of the vane depends on the indoor heat
exchanger temperature as Figure 1 below. It does not swing during fan motor stop. When the air conditioner
is stopped using remote control, the vane will shift to close position.
2 Manual vertical airflow direction can be set using remote control; the angles of the vane are as stated above
and the positions of the vane are as Figure 2 below. When the air conditioner is stopped using remote control,
the vane will shift to close position.
