52

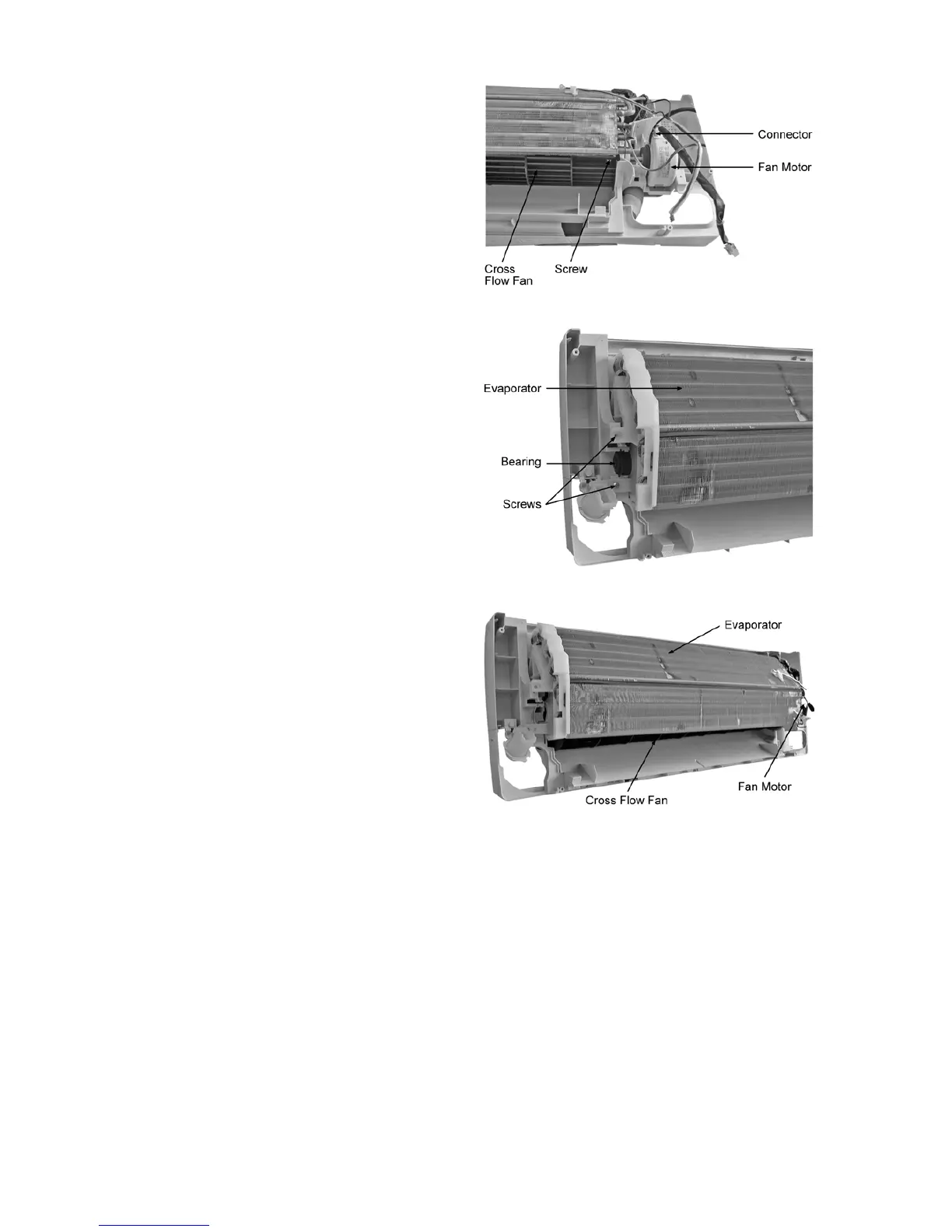

19. Remove the screw at the Cross Flow fan. (Fig. 12)
Reminders:-
To reinstall the Fan Motor, please adjust the connector location is posi-
tioned 45q with Fan Motor before fixing Control Board Cover. (Fig. 12)
Fig. 12
20. Remove the Bearing. (Fig. 13)
21. Remove the 2 screws at the left of the Evaporator. (Fig. 13)
Fig. 13
22. Push up the Evaporator and pull out the Cross Flow Fan from shaft.
By then, Fan Motor can be taken out. (Fig. 14)
Fig. 14
To Next Page
