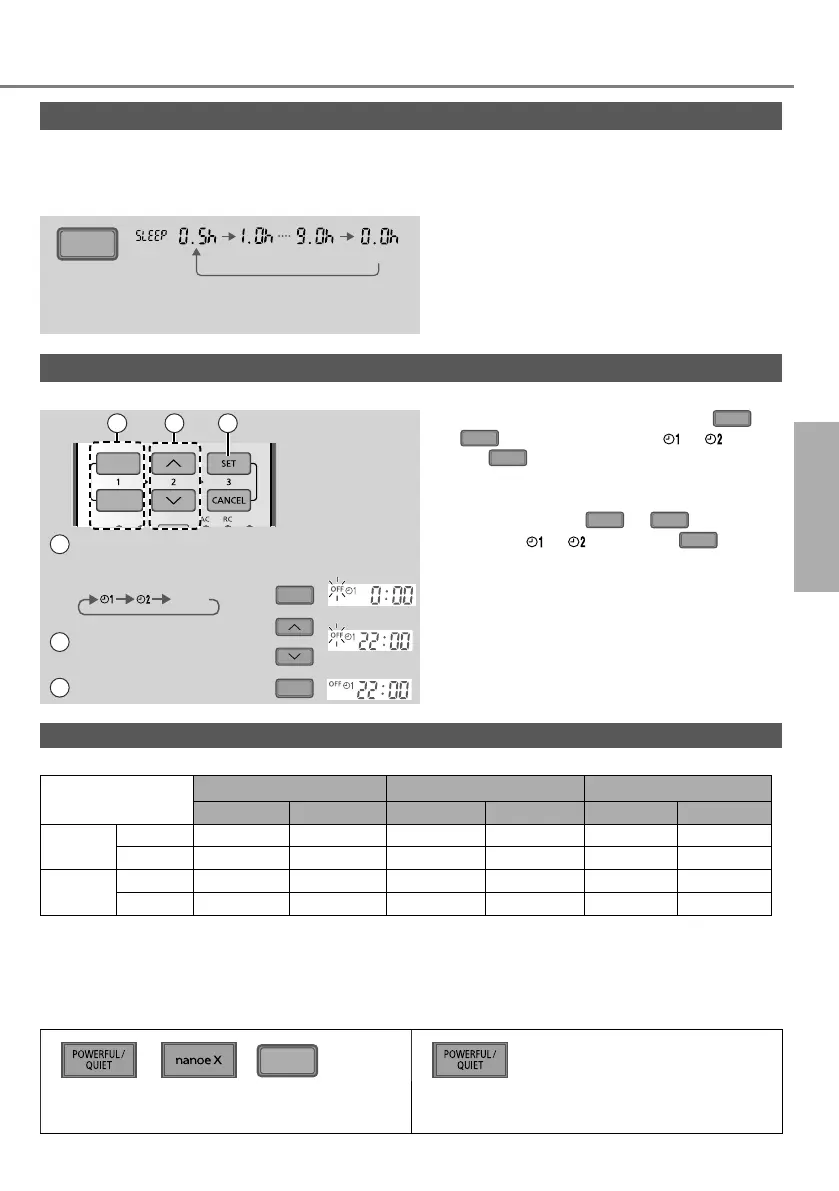

EnglishHow to use
To maximise comfort while sleeping
• This operation can be set together with timer.
Sleep operation has the priority over OFF
timer.
• This operation can be cancelled by pressing
the respective button until the sleep timer
reaches 0.0h.
This operation provides you with a comfortable environment while sleeping. It will
automatically adjust the sleep pattern temperature during the activation period. The indoor
unit indicator will dim when this operation is activated. This is not applicable if the indicator
brightness has been manually dimmed.
SLEEP
(Cancel)
This operation is incorporated with the activation
timer (0.5, 1, 2, 3, 4, 5, 6, 7, 8 or 9 hours).
Operating conditions
Use this air conditioner in the temperature range indicated in the table.
Temperature °C (°F)
Indoor
Single split outdoor unit
*
1
Multi split outdoor unit *
2
DBT WBT DBT WBT DBT WBT
COOL
Max. 32 (89.6) 23 (73.4) 43 (109.4) 26 (78.8) 46 (114.8) 26 (78.8)
Min. 16 (60.8) 11 (51.8) -10 (14.0) - -10 (14.0) -
HEAT
Max. 30 (86.0) - 24 (75.2) 18 (64.4) 24 (75.2) 18 (64.4)
Min. 16 (60.8) - -15 (5.0) -16 (3.2) -15 (5.0) -16 (3.2)
DBT: Dry bulb temperature, WBT: Wet bulb temperature
*
1
CU-Z20VKE, CU-Z25VKE, CU-Z35VKE, CU-Z42VKE, CU-Z50VKE, CU-Z71VKE
*
2
CU-3E18PBE, CU-4E23PBE, CU-4E27PBE, CU-5E34PBE, CU-2E12SBE, CU-2E15SBE, CU-2E18SBE, CU-3E23SBE,
CU-2Z35TBE, CU-2Z41TBE, CU-2Z50TBE, CU-3Z52TBE, CU-3Z68TBE, CU-4Z68TBE, CU-4Z80TBE, CU-5Z90TBE
See "To learn more..." for details.
Note
, ,
SLEEP
• Can be activated in all modes and can be
cancelled by pressing the respective button again.
• Cannot be selected at the same time.
• Cannot be activated during MILD DRY.
To set the timer
• To cancel ON or OFF timer, press
TIMER
ON
or
TIMER
OFF
to select respective or then
press
CANCEL
.
• If timer is cancelled manually or due to
power failure, you can restore the timer
again by pressing
TIMER
ON
or
TIMER
OFF
to select
respective
or then press
SET
.
• The nearest timer setting will be displayed
and will activate in sequence.
• Timer operation is based on the clock set
in the remote control and repeats daily
once set. For clock setting, please refer to
Quick Guide.
2 sets of ON and OFF timers are available to turn ON or OFF the unit at different preset time.
TIMER
OFF
TIMER
ON
3
1
2
Select ON or OFF
timer
Example:
OFF at 22:00
• Each time pressed:
Cancel
TIMER
OFF
Set the time
Confi rm
2
SET
1
2
3

Panasonic CS-Z20VKEW Specifications

General

Type	Split system
Multi-split	No
Product color	White
Gas hose diameter	12.7 mm
Hose length (max)	15 m
Hose length (min)	3 m
Inverter technology	Yes
Liquid hose diameter	6.35 mm
Refrigerating medium	R32
Dehumidifying capacity	1.3 l/h
Air conditioner functions	Cooling, Dehumidifying, Heating
Refrigerating medium weight	700 g
Cooling capacity in watts (max)	2400 W
Cooling capacity in watts (min)	750 W
Heating capacity in watts (max)	4000 W
Heating capacity in watts (min)	700 W
Cooling capacity in watts (nominal)	2050 W
Operating temperature (cooling) (T-T)	-10 - 43 °C
Operating temperature (heating) (T-T)	-15 - 24 °C
Seasonal efficiency rating (cooling) (SEER)	7.5
Heating capacity in watts (nominal) (Colder heating season)	- W
Heating capacity in watts (nominal) (Average heating season)	2800 W
Seasonal efficiency rating (heating) (SCOP) (Warmer heating season)	-
Seasonal efficiency rating (heating) (SCOP) (Average heating season)	4.7
AC input voltage	230 V
AC input frequency	50 Hz
Design load (cooling)	2.05 kW
Energy efficiency scale	A+++ to D
Energy efficiency class (cooling)	A++
Annual energy consumption (cooling)	98 kWh
Design load (heating) (Warmer heating season)	- kW
Design load (heating) (Average heating season)	2.8 kW
Annual energy consumption (heating) (Colder heating season)	- kWh
Annual energy consumption (heating) (Average heating season)	626 kWh
Outdoor unit depth	289 mm
Outdoor unit width	780 mm
Outdoor unit height	542 mm
Outdoor unit weight	27000 g
Outdoor units quantity	1
Outdoor unit noise level	46 dB
Cooling airflow (outdoor unit)	1614 m³/h
Heating airflow (outdoor unit)	1446 m³/h
Indoor unit type	Wall-mountable
Indoor unit depth	194 mm
Indoor unit width	919 mm
Indoor unit height	295 mm
Indoor unit weight	9000 g
Cooling airflow (indoor unit)	594 m³/h
Heating airflow (indoor unit)	642 m³/h
Indoor unit noise level (low speed)	19 dB
Indoor unit noise level (high speed)	37 dB
